| Prod Model: |
HSYV |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Package: |
305m/ Wooden Drum/ Box |
| Conductor Od: |
0.48mm |
| Certificated: |
UL, CE Certificated |
| Insulation: |
HDPE |
| Application: |
LAN Cable |
| Conductor Material: |
BC/CCS/CCA/TC/CU/CCAG |
| Cover Material: |
PVC |
| Certification: |
UL |
| Type: |
Cat5e |
| Model: |
S-0616201506 |
| Brand: |
Skton/ OEM |

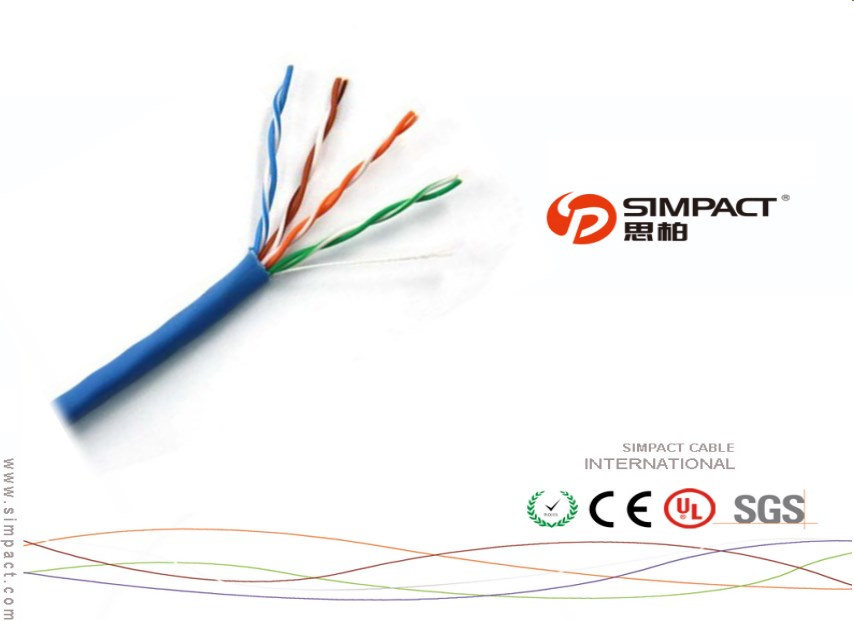

Product Description
Specification:
1) Rated Temperature: 60° C or 75° C
2) Unshielded twisted pairs
3) Conductor: 26AWG or 24AWG Stranding or Solid Bare copper
4) Insulation: HD-PE(High density polyethylene), minimum thickness of 0.18mm
5) Jacket: PVC or LSNH, minimum thickness of 0.55mm
6) Impedance: 100± 15%Ω At 1~100MHz
7) Print Legend: CM or CMR
8) Reference standard: YD/T1019-2001, ISO/IEC11801, ANSI/TIA/EIA-568B, UL 444
Features:
1. Solid Copper Conductor Allows High Performance
2. Fast and Reliable Connection
3. Twisted Pairs with Bright Color for Easy Recognition
4. Ripcord and Footmark for Convenient Use
5. Smooth Jacket for Easy Pulling in Tight Space
6. Color in Light Grey, Dark Grey, Blue, White or as per Your Requirement
Applications:
1. Computer Network Cabling Project.
2. Broadband Network Communication.
3. Digital ISDN Network and ATM 155Mbps Network
4. Ethernet Network
5. Audio and Data Transmission
1. Conductor: 24AWG/26AWG Copper, CCA, (8*7*0.12, 8*7*0.16mm etc)
2. Insulation: 0.92mm+/- 0.06 HDPE
3. Pairs: 4 pairs
4. Jacket: PVC
5. Packing: 1m, 2m, 3m, 5m, 7m, 10m, 15m, 20m...100m, 1pcs/poly bag or as your requirement.
6. Any length is availabe
7. Temperature Range: -20 up to +75c
8. Conductor Resistance: Max. 9.38 ohm/100m
9. Resistance Unbalance: Max. 2%
10. Insulation Resistance: Max. 150 ohm/Km
11. Mutual Capacitance: Max. 5600pF/100m
12. Capacitance Unbalance: Max. 330pF/100m
13. Impedence: 100+/-15
14. Spark Test: 2000V
15. Velocity of propagation: 67%
Complies with Enhanced Cat5e Cabling Specification TIA/EIA-568B-2
OEM AVAILABLE
Certificate: UL, CE. RoHS
Export to: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
CAT6 Patch Cords |
| Insulation Resistance | Min. 5000 mega-ohms-km at 20°C |
| Dielectric Test | 1000V DC/min, Bo Breakdown |
| Temperature Rating | 75 °C |
| Voltage Rating | 30 V |
| Frequency (Mhz) | Zin-OS ( Ohm ) | Fitted Z ( Ohm ) | SRL.MIN ( dB ) | ATT.MAX ( dB /100 m ) | ELFEXT.MIN ( dB /100 M ) | PSELFEXT.MIN SKEW ( dB /100 M ) | NEXT.MIN ( dB ) |
| PSNEXT.MIN ( dB ) |
| 1 | 100 ± 15 | 100 ± 15 | 20.00 | 1.84 | 68.00 | 65.00 | 74.30 | 72.30 |
| 4 | 23.01 | 3.69 | 56.00 | 53.00 | 65.27 | 63.27 |
| 8 | 24.52 | 5.26 | 49.90 | 46.90 | 60.75 | 58.75 |
| 10 | 25.00 | 5.89 | 48.00 | 45.00 | 59.30 | 57.30 |
| 16 | 25.00 | 7.51 | 43.90 | 40.90 | 56.24 | 54.24 |
| 20 | 25.00 | 8.43 | 42.00 | 39.00 | 54.78 | 52.78 |
| 25 | 24.32 | 9.47 | 40.00 | 37.00 | 53.33 | 51.33 |
| 31.25 | 23.64 | 10.64 | 38.10 | 35.10 | 51.88 | 49.88 |
| 52.5 | 21.54 | 15.36 | 32.10 | 29.10 | 47.36 | 45.36 |
| 100 | 20.11 | 19.78 | 28.00 | 25.00 | 44.30 | 42.30 |
| 200 | 18.00 | 28.97 | 22.00 | 19.00 | 39.78 | 37.78 |
| 250 | 17.32 | 32.84 | 20.00 | 17.00 | 38.33 | 36.33
|
Guangdong Simpact Technology Corp. Is located in Huadu District, Guangzhou Overseas Chinese Science and Technology Industrial Park, a land area of 90 acres, 50.08 million yuan of registered capital of the company, has a staff of 500 people. Is a research and development, production and sales in one of the digital communication cable manufacturer specializing in the production and sales of the network wire, communication wire, the production capacity and the largest in the forefront of the industry in the province, China Telecom, China Unicom, China Mobile Communications co-production supplier of wire, the current annual turnover of over $ 500 million annual tax amount of thousands of yuan.
Products comply with ISO9001-2008 standard certification, copper, fiber products by UL U. S. Federal certification, the European RoHS certification, CE certification and national Theil, the technical indicators meet the requirements, "Simpact" brand by China' S industry and commerce administration trademark Office registered the prestigious both at home and abroad.
Simpact has branches and offices in the major cities of Guangzhou, Shenzhen, Beijing, Shenyang, Chongqing, Chengdu, Hangzhou, Shijiazhuang, In addition to the domestic market, but also exported to Europe, the Americas. The company adhering to the "quality first, customer first" business philosophy, in recent years, in the increasingly severe market competition, Simpact excellence, strict quality control, attention to after-sales feedback to ensure the survival of enterprises in the competition in the development of competition, and move forward in the competition.
Work Simpact, the better!
