Hongan Group Corporation Limited >> 24 Core Outdoor Layer Stranded Armored Optical Fiber Cable for Communications

24 Core Outdoor Layer Stranded Armored Optical Fiber Cable for Communications

24 Core Outdoor Layer Stranded Armored Optical Fiber Cable for Communications
Price: US $ 0.525-0.53/Meter
Min Order: 1000/Meter
Pay Type: L/C,T/T,Western Union,Paypal
Prod Model: GYTY53
Application: Communication
Type: Single-mode Fiber
Connection Structure: SC
Certification: ISO9001
Sheath Material: PE
Allowed Lateral Pressure: 1000n<3000n
Allowed Tensile Strength: 1000n<3000n
Brand: Hongan

Product Description

Characteristics of product:
1.Corrugated steel tape armoring,loose tube stranding with single sheath.
2.Loose tube material has good hydrolysis resistance perfor-mance and high strength.
3.Compact structure,excellent water-blocking performance.
4.Strict manufacturing processes.Good mechanical performance and environmental properties.

Applications:
1.Buried,aerial.
2.Relay  communication system.
3.Core network,metropolitan area network and access network etc.

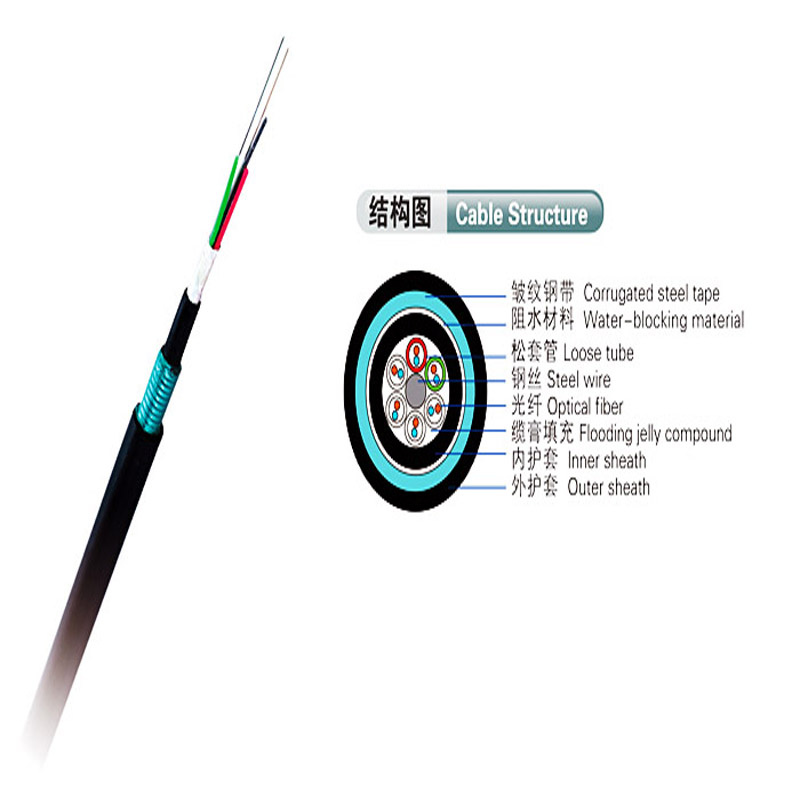

Structure parameters:
Fiber countStructureNominal diameter (mm)Nominal weight (kg/km)Permitted tensile  Long term/ Short term (N)Permitted crush  Long term/ Short term (N)Bend radius Static state/ Dynamic state (mm)
2-361+611.7911000/30001000/300012.5D/25D
38-721+612.51071000/30001000/300012.5D/25D
74-841+713.61221000/30001000/300012.5D/25D
86-961+814.31341000/30001000/300012.5D/25D
98-1081+914.91461000/30001000/300012.5D/25D
110-1201+1015.51581000/30001000/300012.5D/25D
122-1321+1116.11701000/30001000/300012.5D/25D
134-1441+1216.81851000/30001000/300012.5D/25D
146-2161+6+1217.11931000/30001000/300012.5D/25D
218-2881+9+1519.12371000/30001000/300012.5D/25D

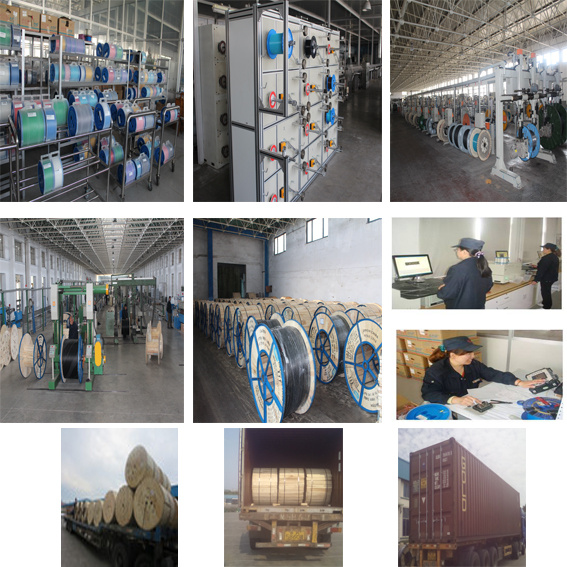

PRODUCTION LINE


CERTIFICATIONS


Company introduction:
This is HONGAN GROUP.  Located in Shandong China.  Specialized produce  optical fiber cable, network data cable and multi pair telephone cables more than 30 years.  And supply EPON , GPON, Data center Solutions and Equipments.

Products had passed  ISO9001 ,ISO14001 and OHSAS18001. And meet the requirements of CE,RoHS ,TLC and UL.   Shipped to Thailand, Cambodia ,Burma,Vietnam,Laos,Europe,Africa and so on. More than twenty countries.

Welcome you select our products!

Best regards!

--------------
David.li
Phone+8613563191771       Tel: +86-631-8088621




Hongan Group Co., Ltd, which locates at Wendeng city of Shandong peninsula, establised in 1985. It has 1500 employees and total assets is over 1.5 billion RMB yuan. It covers an area of 2 million square meters, construction area is 0.6 million square meters. Main products are optical fiber cables, data cables, communications cables etc. Its yearly productive capabilities are 4 million core kilometers, 0.5 million boxes, and 6 million pair kilometers respectively. It is now one of largest production, research and development, sales companies in China. It has 8 branches, such as Hongan Optical Fiber Cables, Hongan Data Cables, Hongan municipal Cables etc, provincial enterprise technology development center and post-doctor scientific research workstation.

Hongan optical fiber cable company has always stood on high starting point, high technology and high standard since it was founded. Production capacity is 50 million core kilometers. Respectively imported the world's advanced level of fiber optic cable production, testing equipment from Switzerland, United States, Japan and other countries. By technical exchange and cooperation with foreign countries, Hongan group has always stand in the forefront in the field of optical fiber manufacturing field.

Advanced equipment is the basic guarantee for the top quality products. Hongan group has invested $35 million and imported 22 sets advanced production lines of photoelectric communication cable and matched monitoring and control equipments and instruments, which imported from the United States, Japan and European Unions. Production capacity is 6 million pair kilometers. Products percent of pass is up to 99.9999%.
