24 Core Outdoor Underground Directly Buried Fiber Optic Cable
| Price: |
US $ 0.7-0.95/Meter |
| Min Order: |
2000/Meter |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
GYTA53 |
| Quality: |
Very Good, Certificated |
| Operating Temperature: |
-40ºC--+70ºC |
| Customers: |
More Than Twenty Countries |
| Water Blocking: |
Yes and Good Perfprmance |
| Mechanical Performance: |
Good |
| Installation: |
Directly Buried, Cable Trench |
| Application: |
Communication |
| Type: |
Single-mode Fiber |
| Connection Structure: |
SC |
| Certification: |
CCC |
| Brand: |
Hongan |
| Sheath Material: |
PE |
Product Description
| Characteristics of product: |
| 1.Structure with aluminium tape against moisture,corrugated steel tape as armor,loose tube stranding and double sheaths. |
| 2.Loose tube material has good hydrolysis resistance performance and high strength. |
| 3.Compact structure,excellent water-blocking performance. |
| 4.Strict manufacturing processes.Good mechanical performance and environmental properties. |
| Applications: |
| 1.Buried,cable trench,etc; |
| 2.Relay communication system; |
| 3.Core network,metropolitan area and access network etc.. |
Structure parameters:| Fiber count | Structure | Nominal diameter (mm) | Nominal weight (kg/km) | Permitted tensile Long term/ Short term (N) | Permitted crush Long term/ Short term (N) | Bend radius Static state/ Dynamic state (mm) |
| 4-36 | 1+6 | 12.8 | 168 | 1000/3000 | 1000/3000 | 12.5D/25D |
| 38-72 | 1+6 | 13.6 | 188 | 1000/3000 | 1000/3000 | 12.5D/25D |
| 74-84 | 1+7 | 14.7 | 214 | 1000/3000 | 1000/3000 | 12.5D/25D |
| 86-96 | 1+8 | 15.4 | 232 | 1000/3000 | 1000/3000 | 12.5D/25D |
| 98-108 | 1+9 | 16 | 248 | 1000/3000 | 1000/3000 | 12.5D/25D |
| 110-120 | 1+10 | 16.6 | 263 | 1000/3000 | 1000/3000 | 12.5D/25D |
| 122-132 | 1+11 | 17.2 | 280 | 1000/3000 | 1000/3000 | 12.5D/25D |
| 134-144 | 1+12 | 17.9 | 300 | 1000/3000 | 1000/3000 | 12.5D/25D |
| 146-216 | 1+6+12 | 18 | 326 | 1000/3000 | 1000/3000 | 12.5D/25D |
| 218-288 | 1+9+15 | 20.5 | 405 | 1000/3000 | 1000/3000 | 12.5D/25D |
PRODUCTION LINE

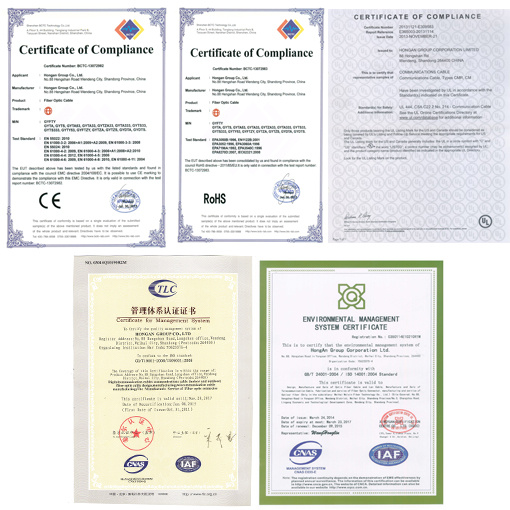

CERTIFICATIONS
Company introduction:
This is HONGAN GROUP. Located in Shandong China. Specialized produce optical fiber cable, network data cable and multi pair telephone cables more than 30 years. And supply EPON , GPON, Data center Solutions and Equipments.
Products had passed ISO9001 ,ISO14001 and OHSAS18001. And meet the requirements of CE,RoHS ,TLC and UL. Shipped to Thailand, Cambodia ,Burma,Vietnam,Laos,Europe,Africa and so on. More than twenty countries.Our customers

Welcome you select our products! Any inquiry, pls feel free to contact with us! Best regards:CathyHongan Group
Phone:+8618643209364 Tel: +86-631-8357098
Website: http://www.hongan.com.cn
Hongan Group Co., Ltd, which locates at Wendeng city of Shandong peninsula, establised in 1985. It has 1500 employees and total assets is over 1.5 billion RMB yuan. It covers an area of 2 million square meters, construction area is 0.6 million square meters. Main products are optical fiber cables, data cables, communications cables etc. Its yearly productive capabilities are 4 million core kilometers, 0.5 million boxes, and 6 million pair kilometers respectively. It is now one of largest production, research and development, sales companies in China. It has 8 branches, such as Hongan Optical Fiber Cables, Hongan Data Cables, Hongan municipal Cables etc, provincial enterprise technology development center and post-doctor scientific research workstation.
Hongan optical fiber cable company has always stood on high starting point, high technology and high standard since it was founded. Production capacity is 50 million core kilometers. Respectively imported the world's advanced level of fiber optic cable production, testing equipment from Switzerland, United States, Japan and other countries. By technical exchange and cooperation with foreign countries, Hongan group has always stand in the forefront in the field of optical fiber manufacturing field.
Advanced equipment is the basic guarantee for the top quality products. Hongan group has invested $35 million and imported 22 sets advanced production lines of photoelectric communication cable and matched monitoring and control equipments and instruments, which imported from the United States, Japan and European Unions. Production capacity is 6 million pair kilometers. Products percent of pass is up to 99.9999%.
