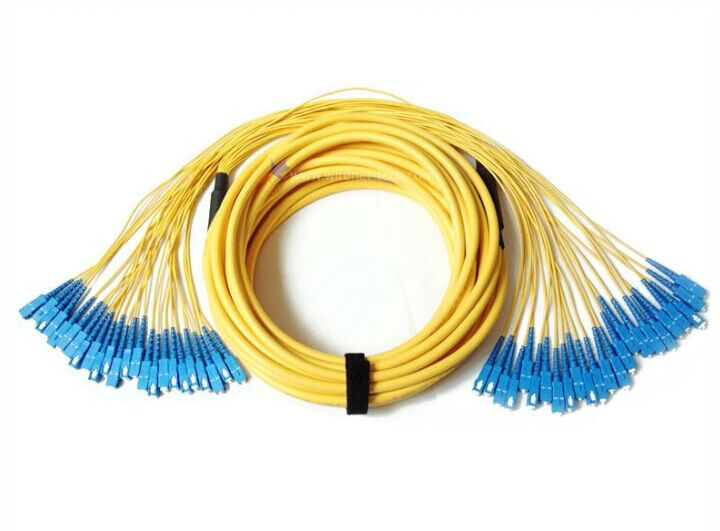

24 Core SM SC Distribution Fiber Patch Cord

24 Core SM SC Distribution Fiber Patch Cord
Price: US $ 0.1-0.69/Piece
Trade Terms: FOB,CIF,DDP
Min Order: 100/Piece
Pay Type: L/C,T/T,Western Union,Paypal,Money Gram
Prod Model: 24 Core Fiber patch cord/pigtail
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Fiber Count: 2,4,6,8,12 Cores
Fiber Connector: Sc, FC, St, LC,Odc,Iplc,Pdlc, MTRJ, MPO,MTP,Mu,SMA
Warranty: 3 Years
Fiber Type: OS1, OS2, Om1, Om2, Om3, Om4
Outer Jacket Color: Yellow, Blue, Green, Aqua, Red, Magenta, Beige
Application: Communication
Type: Single-mode Fiber
Connection Structure: SC-SC
Certification: ISO9001
Sheath Material: PVC or LSZH

Product Description

24 Core SM SC Distribution Fiber Patch Cord




Application
CATV; Active device termination;
Telecommunication networks;
Metro;
Local Area Networks;
Data processing networks;
Test equipment;
Premise installation;
Wide Area Networks;

Features
---Low insertion and back reflection loss
---Good exchangeability
---Good durability
---High temperature stability
---Standard: Telcordia GR-326-CORE


3. Specification of fiber patch cord:

 ItemsSingle modeMultimode
PCUPCAPC62.5/12550/12550/125 10G
Insertion Loss<0.2dB<0.3dB
Return Loss≥45dB≥50dB≥60dB            ≥35dB
Durability<0.1dB typical change,
500 matings
Operating Temperature-40 to +75-40 to +75
Ferrule Hole Sizes125.0+1/-0um, Conentricity:≤1um125um,Conectricity:1≤3um
125.3+1/-0um, Conentricity:≤1um127um,Conectricity:1≤3um
125.5+1/-0um, Conentricity:≤1um128um,Conectricity:1≤3um
126.0+1/-0um, Conentricity:≤1um

Order information
Fiber Optic Patch Cord:FC/APC-SC/UPC/SM/Ø3/L Meter/DX
(Number)12345678

Plating materialPVC, LSZH
1.ConnectorFC,SC,ST,LC,MU,SMA,E2000...
2.Inserted core coverPC,UPC or APC
3.ConnectorFC,SC,ST,LC,MU,SMA,E2000...
4.Inserted core coverPC,UPC or APC
5.TypeSM or MM
6.Line diameter (mm)Ø3, Ø2, Ø1.6, Ø0.9
7Length (m)L=1.2.3.4.......meter
8.ClassificationSX or DX , Multimode Indoor Cable







Takfly Communications Co., Ltd. is a Hi-Tech enterprise having its own brand and specializing in R&D, manufacture and sales of fiber optical communications equipments.

The main products of TAKFLY include fiber optic patch cord, connector, adapter, optical coupler, attenuator, optic media converter, optic splice closure, optic terminal box, ODF etc, which are widely used in telecommunications, broadband, broadcast, CATV and network industry. All the products acquired the approval of the Network Access License for Telecommunication Equipment Ministry of Information Industry, PRC, ISO9001, UL and CE standard, which ensure the reliability and make them sold very well not only in the domestic market but also the overseas market.

TAKFLY was establish in 2000, grow up rapidly. Now it has workshop area about 3000 square meters, more than 200 workers, the production capacity of fiber optic connectors is about 600, 000PCS per month. It controls the quality constantly and strictly in order to give the best products to the users. The outstanding features and advantage are the high technology, professional and excellent sales team, efficient and sound management, competitive price, wide and superior channels, as well as high-quality and flexible service.

Many international exhibitions upgraded "TAKFLY" as the well-known brand in the world. To be the super leader of the optical communications scopes in China is the goal of TAKFLY. In the next five years, TAKFLY will keep the strategic pattern of development ---"based in South China, penetrate into whole country, extend over the world". It will bring the fiber optic industry into a brilliant future. TAKFLY--- Your Honest Team, will be always ready for you.
