24 Core Stranded Loose Tube Fiber Optic Cable

Name: 24 Core Stranded Loose Tube Fiber Optic Cable
Brand: all-electronics-online.com
SKU: 699978732
Availability: InStock
Rating: 4.3 (57 reviews)

Price:	US $ 0.29/Meter
Trade Terms:	FOB,CFR,EXW
Min Order:	2000/Meter
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	GYTA
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Fibers:	24
Jacket Color:	Black
Outer Jacket Diameter:	11.5mm
Loose Tube:	1.95mm PBT
Central Strength Member:	Steel2.0
Application:	Communication
Type:	Single-mode Fiber
Certification:	ISO9001
Connection Structure:	GYTA
Brand:	OEM or Geyida
Sheath Material:	PE

Product Description

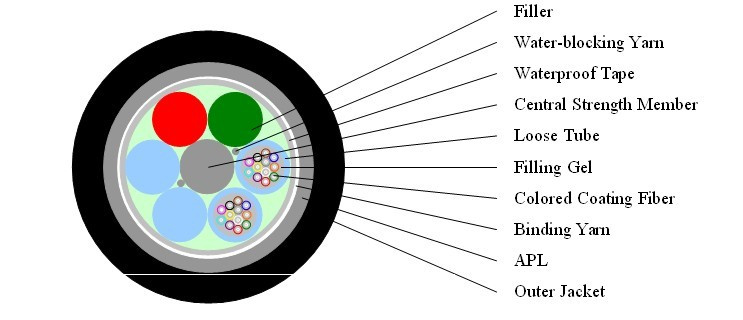

Optical Fiber Cable--GYTA

Features:

1. Good mechanical and temperature performance.
2 Heigh strength loose tube that is hydrolysis resistand
3. Specially tube filling compound ensure a critical protection of fiber.
4 Specially designed compact structure is good at preventing loose tubes from shrinking
5. PE sheath protects cable from ultraviolet radiation
6. Steel wire used as the central strength member
7.100% cable filling core filling
8. Loose tubes filling compound
9. PSP enhanceing moisture barrier

optical characteristics



		G.652	G.655	50/125um	62.5/125um
attenuation(+20ºC)	@850nm			≤3.0db/km	≤3.0db/km
	@1300nm			≤1.0db/km	≤1.0db/km
	@1310nm	≤0.36db/km	≤0.4db/km
	@1550nm	≤0.22db/km	≤0.23db/km
	@850nm			≤600mhz.km	≤200mhz.km
bandwidth(class A)	@1300nm			≥1200mhz.km	≥600mhz.km
numerical Aperture				0.200±0.015na	0.275±0.015na
cable cut-off waveleng th xcc				≤1620nm	≤1450nm
storage/operating temperature:-40ºC to +70ºC
storage/operating temperature:-40ºC to +70ºC

Fiber Parameters

No.	Items		Unit	Specification
No.	Items		Unit	G.652D
1	Mode Field Diameter	1310nm	μm	9.2±0.4
1	Mode Field Diameter	1550nm	μm	10.4±0.5
2	Cladding Diameter		μm	124.8±0.7
3	Cladding Non-Circularity		%	≤0.7
4	Core-Cladding Concentricity Error		μm	≤0.5
5	Coating Diameter		μm	245±5
6	Coating Non-Circularity		%	≤6.0
7	Cladding-Coating Concentricity Error		μm	≤12.0
8	Cable Cutoff Wavelength		nm	λ_cc≤1260
9	Attenuation(max.)	1310nm	dB/km	≤0.36
9	Attenuation(max.)	1550nm	dB/km	≤0.25

Mechanical and Environmental Characteristics

Items	Unite	Specifications
Tension(Long Term)	N	600
Tension(Short Term)	N	1500
Crush(Long Term)	N/10cm	300
Crush(Short Term)	N/10cm	1000
Min. Bend Radius(Dynamic)	mm	20D
Min. Bend Radius(Static)	mm	10D
Installation Temperature	ºC	-20~+60
Operating Temperature	ºC	-40~+70
Storage Temperature	ºC	-40~+70
