24 Cores Yellow Multi Purpose Distribution Fibers Cable

Name: 24 Cores Yellow Multi Purpose Distribution Fibers Cable
Brand: all-electronics-online.com
SKU: 812058535
Availability: InStock
Rating: 4.9 (50 reviews)

Price:	Negotiable/Meter
Min Order:	3000/Meter
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	SLMPC-G-ZY-024B1
Application:	Communication
Type:	Multi-mode Fiber
Connection Structure:	SC-SC
Certification:	ETL,Fluke
Brand:	Sur-Link

Product Description

Product model:SLMPC-G-ZY-024B1

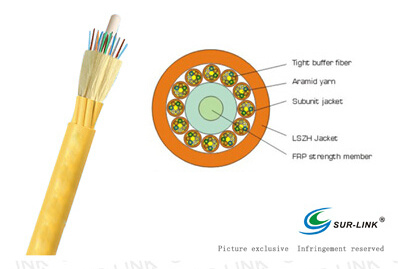

Description:Multi Purpose Distribution Cable 24 Fibers Yellow
TECHNOLOGY SPECIFICATION

Item	Technology parameter
Cable type	SLGJBFJH-2B1,Ф6.6mm
The cable weight Kg/km	38.3
The OD of sheath mm	6.6±0.2
The material of sheath	LSZH
The color the sheath	yellow
The minimum bending radius mm	10D
Attenuation dB/km	<= 0.4 at 1310nm,<= 0.3 at 1550nm
Short tesion N	150
Short crush N/100mm	1000
Using temperature ºC	-20~70
Sub-unit Technology parameter
The color of tight layer	nature
The material of tight layer	PVC
The OD of tight fiber mm	0.85±0.05
Fiber specification( single -model)	9/125
Aramid yarns	1100dtex×3thread
Sub-unit out diameter	2.0 (out diameter control 1.9±0.1mm)
The material of sub-unit	PVC
Sub-unit color	yellow
The difference of the units	Number (1,2) be marked on the unit surface of the outer sheath with a interval of 200mm

ORDERING INFORMATION:

Product Code	Description	Packaging	Carton Size	GW
SLMPC-G-ZY-024B1	Multi Purpose Distribution Cable 24 Fibers Yellow	5000 M/ Axle	12575115 cm	530 kg
