| Prod Model: |
24 Fiber OM3 MTP Fiber Optical Patch cord |
| Sm Insertion Low Loss: |
Typical<0.30dB |
| Mm Insertion Low Loss: |
Typical<0.30dB |
| Application: |
Probe |
| Type: |
Multi-mode Fiber |
| Certification: |
ISO9001 |
| Connection Structure: |
MTP Fiber Optic Patch Cord |
| Sheath Material: |
LSZH |
Product Description

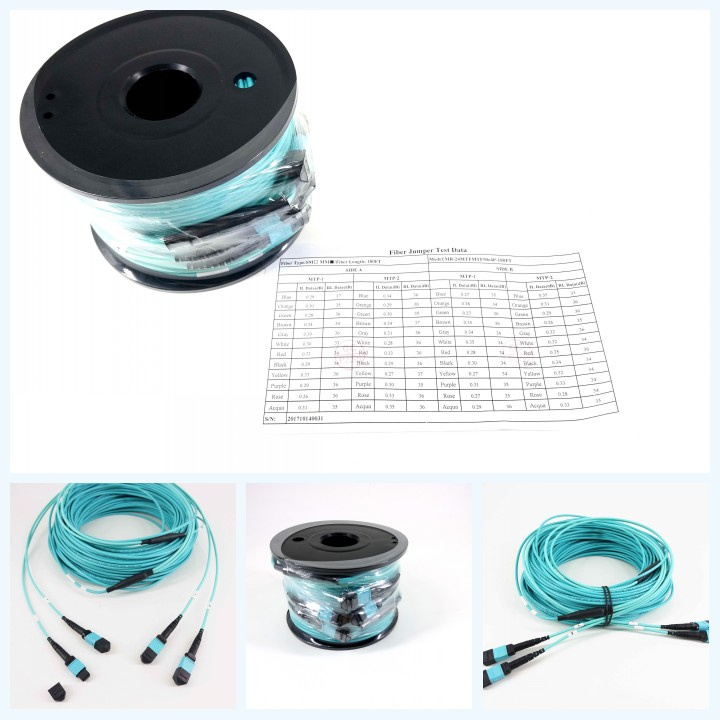

24 Fiber OM3 MTP/MPO Fiber Optic Patch cord
Description :
These are available in female to female or a male to male and male to female configurations. The male version has MTP pins. These can be made with 12 fiber MTP connectors, 24 Fiber MTP
connectors, 48 Fiber MTP connector variations. Many additional options and combinations are available. All multi fiber optic cables are customizable.
Qick Details:

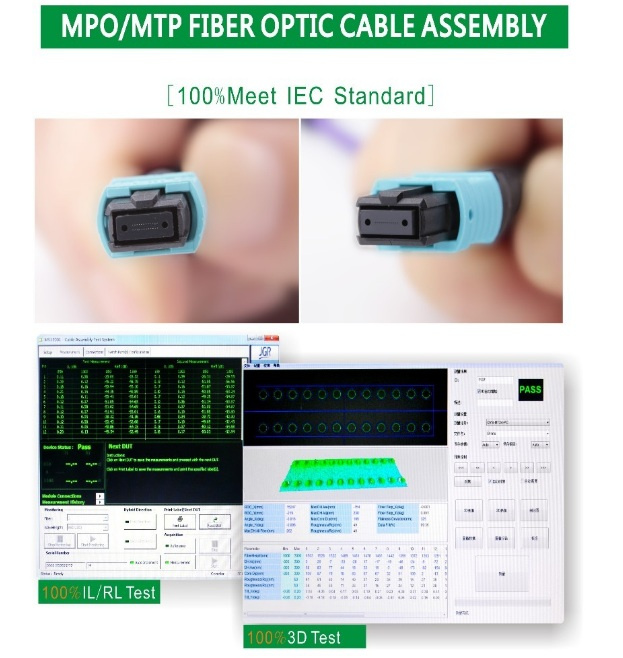

Connector End face: MTP end face geometry requirements: EN50377-15-1
Polishing Quality: Polished end-face quality: IEC61300-3-35
Our MTP patch cables are designed for data center solutions supporting the topologies such as 10 Gigabit Ethernet, Fiber Channel or Infiniband - as specified in the data center standards EN50173-5 and ISO/IEC 24764
Specifications:
Performance of Assemblies MTP / MPO Termination:
| Specifications | MM Low loss Multimode MT Ferrule | Standard Multimode MT Ferrule | SM Low loss Singlemode MT Ferrule | Standard Multimode MT Ferrule |
| Insertion Loss | Typical<0.30dB Maximum<0.50dB | Typical<0.30dB Maximum<0.7dB | Typical<0.30dB Maximum<0.5dB | Typical<0.50dB Maximum<0.7dB |
| Return loss | >20dB | >20dB | PC>=45dB | PC>=45dB |
| APC>=60dB | APC>=60dB |
