24 Fibers IP67 MPO to IP67 MPO Singlemode Waterproof Fiber Optic Patch Cable
| Price: |
US $ 9.99-190/Set |
| Min Order: |
1/Set |
| Pay Type: |
T/T,Western Union |
| Prod Model: |
waterproof outdoor fiber optic patch cord |
| Product Type: |
Waterproof Cable |
| Fiber Type: |
Singlemode OS2 9/125 |
| Connector: |
IP67 MPO |
| Fiber Count: |
24 |
| Trunk Diameter: |
4.0mm |
| Branch Diameter: |
3.0mm |
| Insertion Loss: |
Less Than or Equal to 0.35dB |
| Return Loss: |
More Than or Equal to 60dB |
| Application: |
Communication |
| Type: |
Single-mode Fiber |
| Certification: |
ISO9001 |
| Connection Structure: |
MPO |
| Sheath Material: |
LSZH |
Product Description

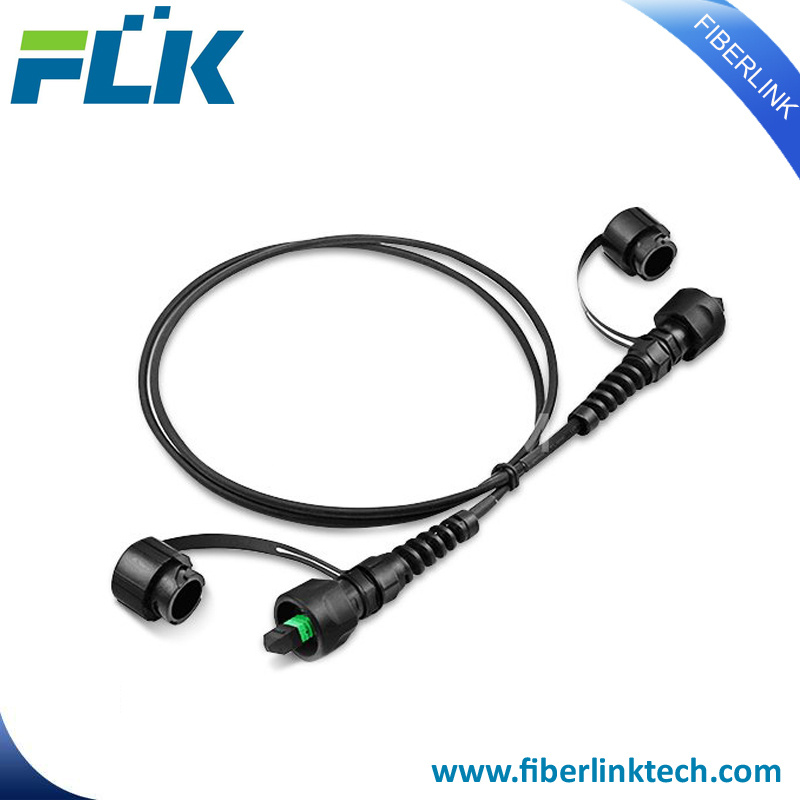

Waterproof Fiber Optic Patch Cable, IP67 MPO to IP67 MPO, Singlemode, 24 Fibers
Waterproof fiber optic patch cables are designed to fit for outdoor applications. The strong PU jacket and armored structure can resist high temperature and suit to use in harsh environment. The cable can provide 1 gigabit data transfer speeds in high bandwidth application and up to 5 times faster than standard 9/125um fiber patch cable. What's more, it's IP67 MPO cable connectors have an extremely rugged, protective rubber coating with integral anti-kink strain-relief boot and a rubber-coated, metal, latching cap, attached by a steel lanyard. When mated or capped, the connection is environmentally sealed up to IP65. It is ideal for using in a variety of applications, including fiber to the antenna (FTTA) and fiber to the home (FTTH).
Features
·High temperature stability, low insertion loss
·Water proof, dust proof and corrosion resistant
·Bump resistance - 4000 bumps @ 40g acceleration
·Easy operation, reliable and cost-effective installation
·Free fall resistance - 500 falls onto concrete from 1.2M height
IP67 MPO Connectors- socket & plug
There are two types of IP67MPO waterproof connector- IP67MPO plug (with locating pins) and IP67MPO Socket (without locating pins), the plug of one cable and the socket of the other cable can be connected to extend the cable length.

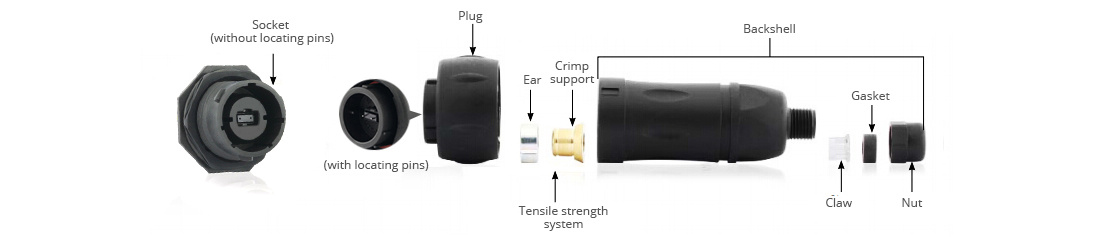

IP67 MPO Component Details
In Fiberlink, IP67MPO cable connector is the MPO connector whose optical channels are based on the convention with twelve or twenty-four singlemode APC. The aluminum frame has a spring-loaded push-pull locking mechanism and possesses the excellent cable retention because of an aramid yarn within the cable. When there is no connection by the automatically operated sealing-cover, both chassis and connector can protect against dirt and dust. In addition to the automatic sealing shutters, rubber outer sheath and steel, the automatic protective cap is fitted for using when unconnected. When connected or capped, the sealing connection environment amounts to IP67.
Specifications | Parameters | | Standard Fiber Cable Assemblies | |
| | Side-A | Compact RRU/BBU Helix cover Connector | |
| Connector | Side-B | DLC(duplex LC),SC,ST,FC,MPO/MTP | |
| Fiber count | | 2core or 4......24 | | |
| Fiber Type | | SM(G.652D/G.657A) | | MM(OM1/OM2/OM3) | |
| Jacket Materials | | LSZH/OFNR/PVC/PE | | |
| Outer Diameter of fiber cable | | 4.8mm-7.0mm | | |
| Ferrule Materials | | Ceramic | | |
| Testing Wavelengths | | 1310±30/1550±30nm | | 850±30/1300±30nm | |
| Insertion Loss(dB) | ≤ 0.3dB | | ≤ 0.3dB |
| TIA/EIA-455-107 | (UPC/APC) | | (UPC) |
| Return Loss(dB) | ≥45dB(UPC) | | |
| TIA/EIA-455-107 | ≥55dB(APC) | | ≥35dB(UPC) |
| Exchange ability | | ≤ 0.2dB |
| Cable Assemblies | Pigtail/Simplex/Duplex/Fan-out Patch cord |
| Operating Temperature (°C) | | -14~ + 85 | |
| Storage Temperature (°C) | | -40 ~ +85 | |
