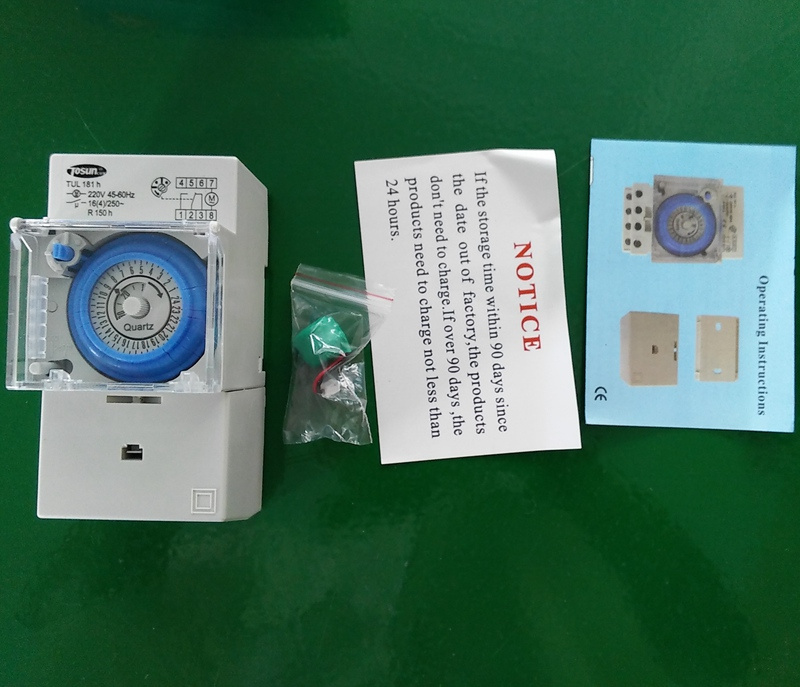

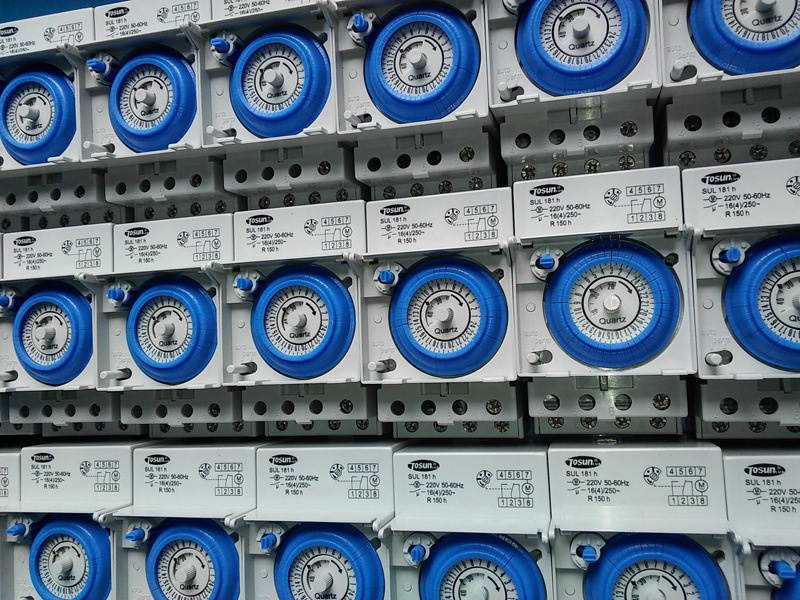

24 Hours Time Switch Timing Relay

Name: 24 Hours Time Switch Timing Relay
Brand: all-electronics-online.com
SKU: 803217965
Availability: InStock
Rating: 4.9 (135 reviews)

Price:	US $ 5-10/Piece
Min Order:	50/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	TUL181h
Contact Capacity:	AC220V 16A
Full Timing Range:	24h
Contact Resistance:	≤50m Ohm
Insulation Resistance:	≥100m Ohm
Coil Voltage:	110, 230VAC
Electrical Life:	≥10^5 Times
Mechanical Life:	≥10^7 Times
Operating Temperature:	-20°c~+50°c
Storage Battery (Working Reserve):	≥15 Days
Minimum Setting Unit:	30 Minutes

Product Description

Specification

Model		THC15A	THC18	TS-GM1	E8	THC20	TUL181h	TUL181d	TH711
Contact Capacity		AC220V 16A	AC220V 16A	AC230V 16A	AC220V 10A	AC220V 16A	AC220V 16A	AC220V 16A	AC230V 16A
Full Timing Range		Per week or per day cycle	20m	24h	7m	24h	24h	24h	24h
Contact Resistance		≤50mΩ	≤50mΩ	≤50mΩ	≤50mΩ	≤50mΩ	≤50mΩ	≤50mΩ	≤50mΩ
Insulation Resistance		≥100MΩ	≥100MΩ	≥100MΩ	≥100MΩ	≥100MΩ	≥100MΩ	≥100MΩ	≥100MΩ
Rated Voltage		AC220V 50/60Hz 85%~110%	110, 230V AC	110, 230V AC	110, 230V AC		110, 230V AC	110, 230V AC	230V AC
Life	Electrical	105 times	105 times	105 times	105 times	105 times	105 times	105 times	105 times
Life	Mechanical	105 times	105 times	107 times	107 times	107 times	107 times	107 times	107 times
Operating Temperature		-20ºC~+50ºC	-40ºC~+55ºC	-10ºC~+50ºC	-40ºC~+55ºC	-10ºC~+55ºC	-10ºC~+55ºC	-10ºC~+55ºC	-10ºC~+55ºC
Storage Battery (Working Reserve)		≥15Days	-	Time 70h	-	150h	Time 150h	Time 150h	Time 70h
Minimum Setting Unit		1 Minutes	0.5 Minutes	15 Minutes	0.5 Minutes	15 Minutes	30 Minutes	15 Minutes	10 Minutes
Set Up Times		-	0.5M, 5M, 10M, 15M, 20M	15M per times 96 times	1M, 1.5M, 2.5M, 3M, 3.5M, 4.5M, 5M, 5.5M, 6M, 6.5M, 7M	-	30M per times 48 times	15M per times 96 times	100M per times 144 times

We are one of the most reliable manufacturers and exporters of low tension electrical items and illumination products in China. We have successfully developed and dealt with numerous electrical products in high quality, such as Circuit Breaker, AC Contact, Panel Enclosure, Electrical Accessories for Panel Enclosure, Pushbutton, Switch, Fuse, Meter, Temperature Controller, Cable Tie, Wiring System products as well as illumination items.

· Qualifications and Technological Strength

We possess full line of high-tech production equipment and great strength of technology support besides advanced designing forces powered by the first class engineering teams with super industrial computer systems. Thus, Our products are novel in designs, excellent in workmanship and tope reliable in quality. A lot of our products have obtained "RoHS", "CB", "CE" and "IRAM", and other international quality approvals. The products now are being well sold in more than 82 countries and regions in the world.

· Contact Us Today

We have always pays special attention to protecting the benefits of clients' so that both the clients ans our company are able to gain the maximum benefits from the relations between us. We warmly look forward to establishing, reinforcing and expanding long term fruitful relationship with the reliable clients all over the world.

Let's get busy and pull together to create a better future.
