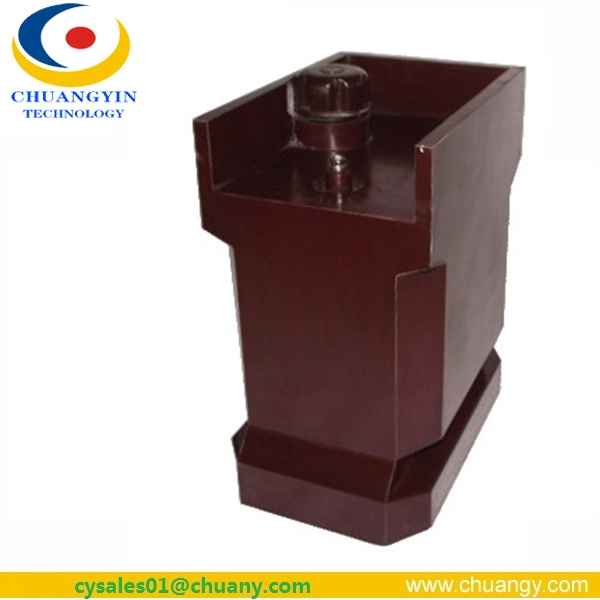

JDZX18-12R(V)JC   Voltage transformer
12kV   Indoor   Single-Phanse   Epoxy Resin Type

voltage transformer with inbulit fuse , epoxy resin casting and fully enclosed construction, is used indoor switch cabinet to measure the current,electric energy and protective relaying in the single phase or three phase AC circuit with the frequency 50Hz or 60Hz and hightest voltage for equipment 12kV.
The iron core adopts adopts advanced cold-rolled silicom steel sheet.High voltage out going line of primary winding was fetched out from top of the product; out going line of secondary winding was fetched out from transverse side of the product.

Usage Terms
J:  Voltage transformer
D:  Single-phase
Z:  Casting insulation
X:  Residual voltage winding
18:  Design No.
12:  Rated voltage
R:  With fuse for protection
V:  V type connection
JC:  For handcart

Key Technical Data
1.Installation Site   indoor
2.Rated Frequency): 50/60Hz
3.Load power factor cosΦ=0.8 (lagging)
4.Technical standard accords with GB1207-2006 / IEC 60044-2:2003

Specification

Type	Rated primary Voltage (kV)	Rated secondary Voltage (kV)	Accuracy classes combination	Rated output (VA)	Thermal limiting Output (VA)	Rated Insulation level (kV)
JDZX18-3RJC JDZX18-6RJC JDZX18-12RJC	3/√3 6/√3 10/√3	0.1/√3	0.2	15	400	3.6/25/40 7.2/32/60 12/42/75
			0.5	30
			1	50
		0.1/√3/0.1/3	0.2/6P	15/50	300
		0.1/√3/0.1/3	0.5/6P	30/50	300

Note: Upon request we are glad to offer transformers according to other technical specs.

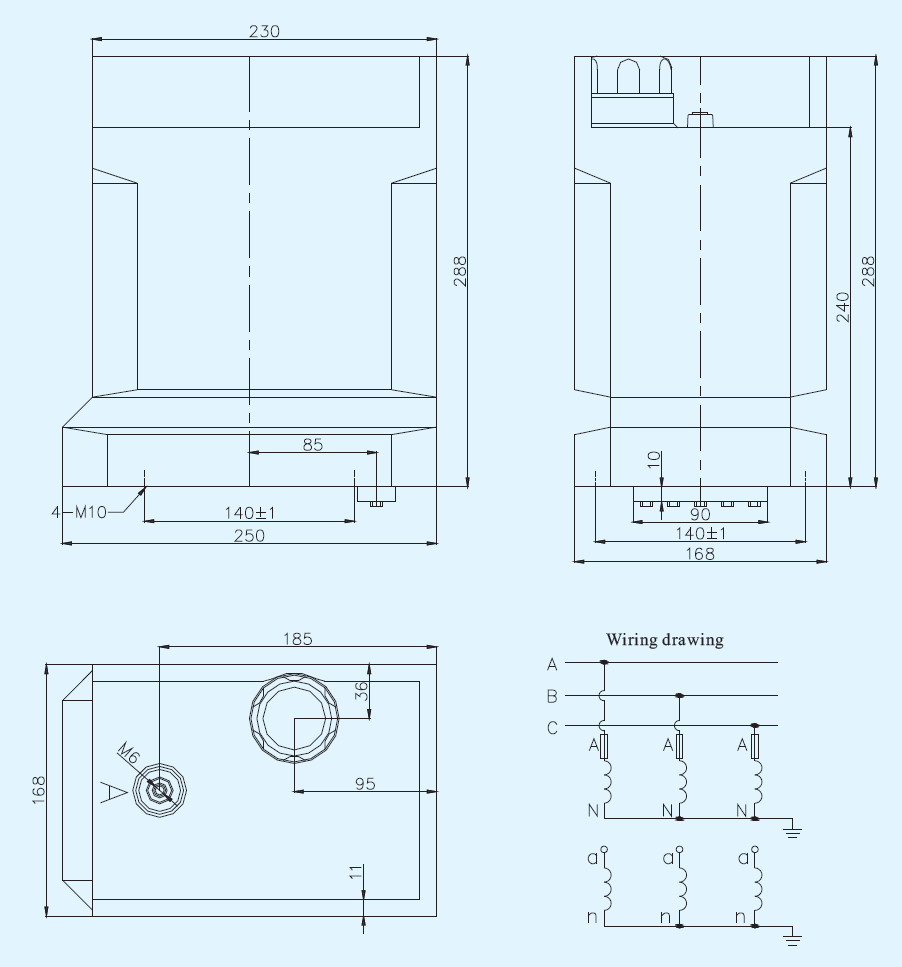

Outline Drawing

Note: Upon requset we are glad to offer transformers according to other technical specs.
