| Prod Model: |
FC350 Series |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Output Voltage: |
380V |
| Communication: |
RS485 & Modbus |
| Input: |
3 Phase 380V ~~450V |
| OEM Service: |
Accepted |
| Application: |
High Frequency Converter Transducer |
| Output Type: |
Triple |
| Principle Of Work: |
Vector Control Transducer |
| Switch Mode: |
PWM Control |
| Main Circuit Type: |
Voltage |
| Brand: |
Janson Controls |

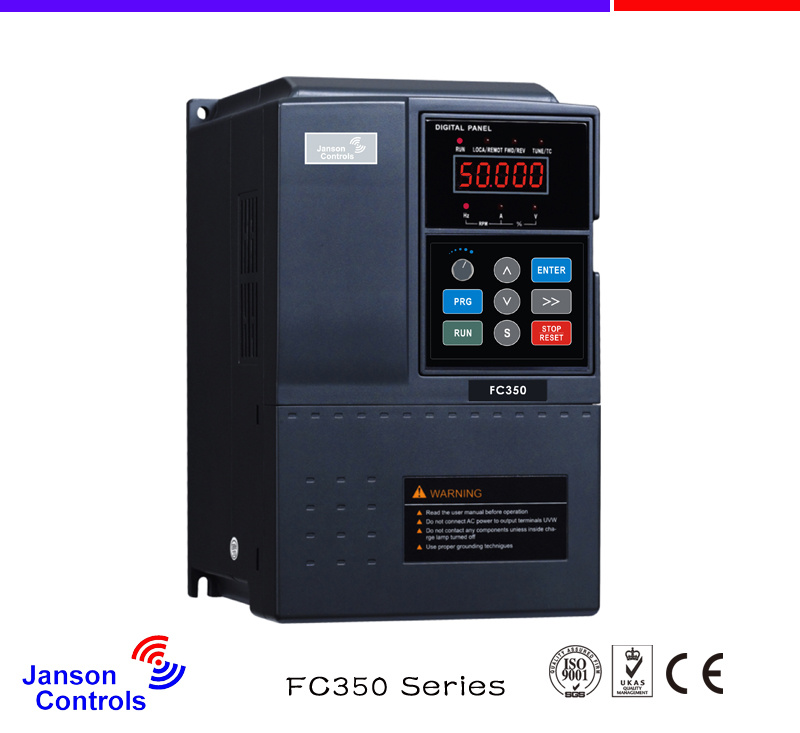

Product Description
FC350 series of open-loop vector control inverter is a new generation of products,with the new characteristic appearance design and use the unique way of control to achieve a high-torque, high-precision, wide speed drives,Is the general customer demand, customer personalized requirements and industry characteristics, practical PI,simple PLC,flexible input/output terminals,pulse frequency setting,main and auxiliary setting,frequency control, fixed-length timing control,power shutdown parameter selection etc., For equipment manufacturing industry customers provide high integration solution,For reducing the system cost and improving the system reliability has great value.
Specifications
1> Max output frequency :400Hz
2> Input frequency : Digital setting:0.01Hz
3> Control mode : V/F control open-loop vector control close-loop vector control
4> Start torque : Type G :0.5Hz/150%(SVC);0Hz/180%(FVC) Type P :0.5Hz/110%
5> Speed range : 1:100 (SVC) 1:100o (FVC)
7> Steady speed precision : ±0.5%(SVC) ±0.02%(FVC )
8> Torque control accuracy : ±10%(SVC) ±5%(FVC)
9> Jog control : Jog frequency range:0.00Hz~50.00Hz
10> Simple PLC Multi-speed running: 16-speed operating through built-in PLC or control terminal

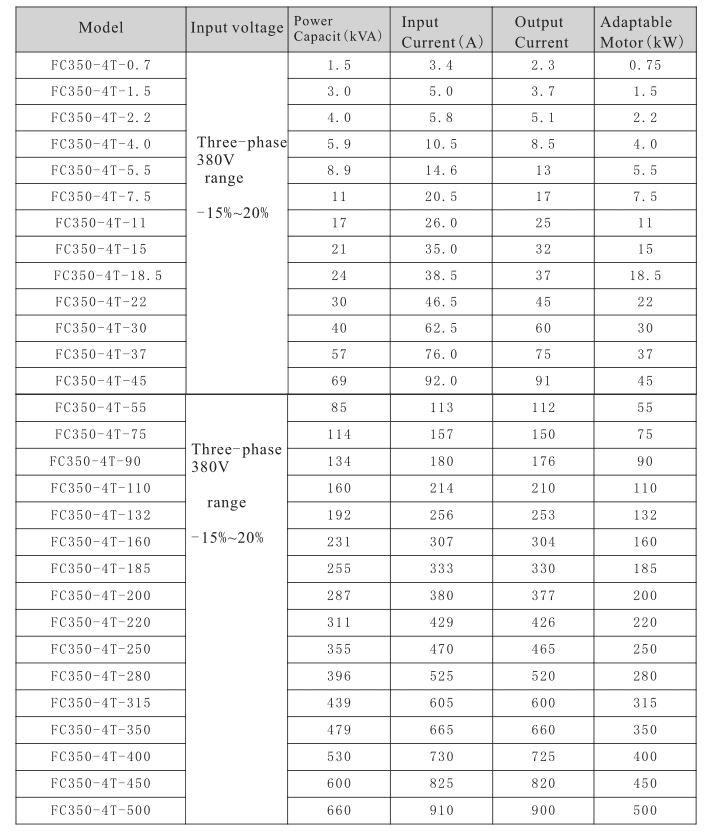

Model :

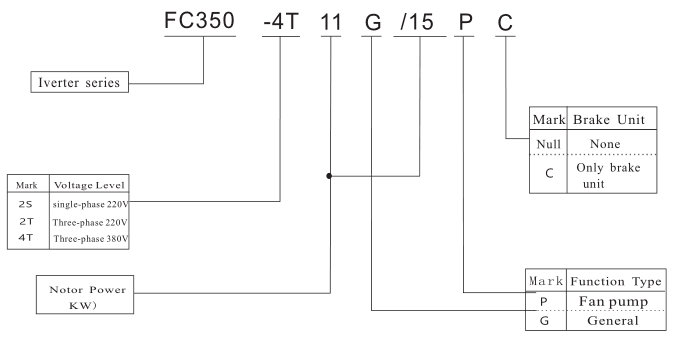

Name Rule:

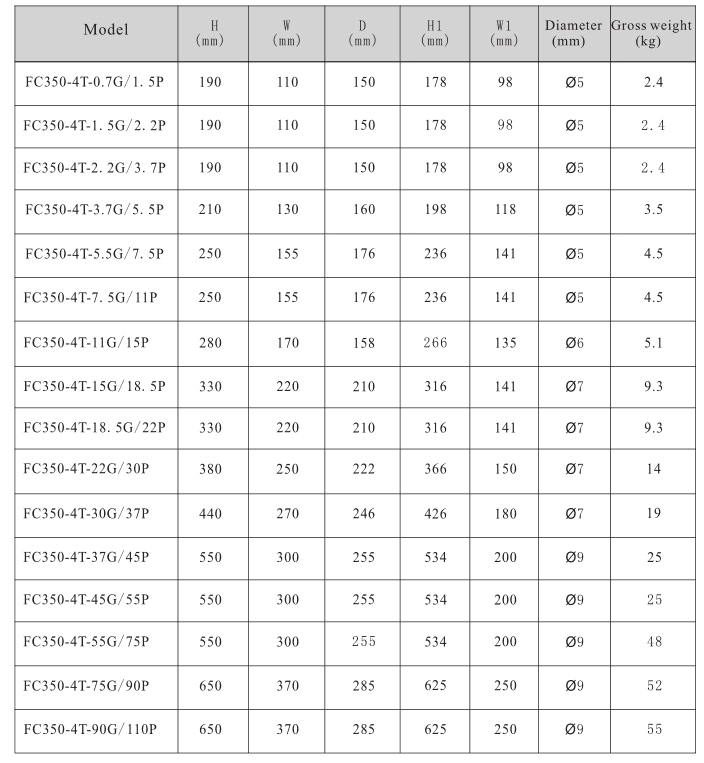

Size:
Note: Please go our website or contact me for more detailed Size Information, our website is www.jansoncontrols.com
Samples are Available for Testing and Market Test, also we have a long-term cooperation with DHL,Ups etc, Freight will be much cheaper than their normal one.
2. Warranty of Frecon Products
our products will be offered with 24 months warranty, if any problem during this time, we will take all the responsibility including all the frieght, accessories and also change new ones
3. Guides and After-service Consultancy
You can find me all the time, my mobile phone can be always connected.
A. Need an Accessory?
B. Products Repair?
C. Power Problems to Solve?
D. Power Protection Solutions, etc.?
4. OEM Service for ac inverter
All OEM Project can be acceptable by my side, just tell me your requst and then solution will be offered.
Located in Shenzhen, China, Janson Controls Company Limited is a factory that obtained ISO9001: 2008 and CE certificate, we are highly skilled in focusing on green energy of harmonic drive, including high frequency inverter, low voltage inverter, and different variable frequency inverter for general purpose.
As a council member of Inverter Branch of China Electric Appliance Industrial Association, all of our software and hardware are developed by its own D&R, and the main components are from top-brands in the world, e. g. IGBT from Infineon of Germany, capacitor from NCC of Japan, rectifier bridge from Microsemi, PCB board from TDK of Japan, and fan from NAIS of Taiwan and also NIDEC of Japan, MCU from DSP of IT in USA, MOS Tube from ST etc.
Our products mainly serve for Equipment Manufacturing, Energy-saving&Environmental protection, and New energy field, and are widely used in elevator, crane, machine tool, metal products, wire and cable, plastic cement, printing packaging, textile chemical fiber, construction materials, metallurgy, colliery, civicism and auto industry.
With timely service and superior quality, we have gained high reputation for its applicability and reliability in this industry, together with competitive price make us develop a word-wide market network and our products have been exported to southeast Asia, Russia, Europe, Pakistan and many other countries, and what we offer is not only products but also solutions and services to meet all customers' needs.
Janson is strived to become the best reliable supplier of automated products, our mission is to improve the industrial automation application, and our value is to establish a human-centric development platform.
A warm welcome is extended to visit Janson Controls when you are visiting China.
