| Prod Model: |
WB-ID-PDU |
| Installation: |
19 Inch |
| Height: |
1u |
| Rated Voltage: |
230VAC 50-60Hz |
| Rated Current: |
16/32A |
| Materials: |
Aluminum-Alloy Shell+ ABS |
| Input: |
10W Max Industrial Plug * 2 |
| Output: |
Schuko Type |
| Function: |
2*Circuit Breaker + Surge Protection Each Socket |
| Output Type: |
AC |
| Delivery Detail: |
Shipped in 15 Days After Payment |
| Grounding: |
Standard Grounding |
| Shell Material: |
Aluminum Alloy |
| Application: |
Residential/General-Purpose |
| Cable Length: |
2 Meter |
| Color: |
Black |
| IP Rating: |
IP22 |
| Certification: |
TUV, RoHS, ISO9001, UL |
| Customized: |
Customized |
| Condition: |
New |
Product Description
==Description==
PDU is short for Power Distribution Unit. An electrical device used to control the distribution of power to individual loads. The PDU may be a stand-alone controlled device or it may be integrated directly into the UPS (uninterruptible power supply).
A power distribution unit (PDU) is a device fitted with multiple outputs designed to distribute electric power, especially to racks of computers and networking equipment located within the data center. PDUs vary from simple and inexpensive rack-mounted "power strips" to larger floor-mounted PDUs with multiple functions including power filtering to improve power quality, intelligent load balancing, and remote monitoring and control by LAN or SNMP.
==Feature==
10W Horizontal PDU
Size: 19'' 1.5U 62mm

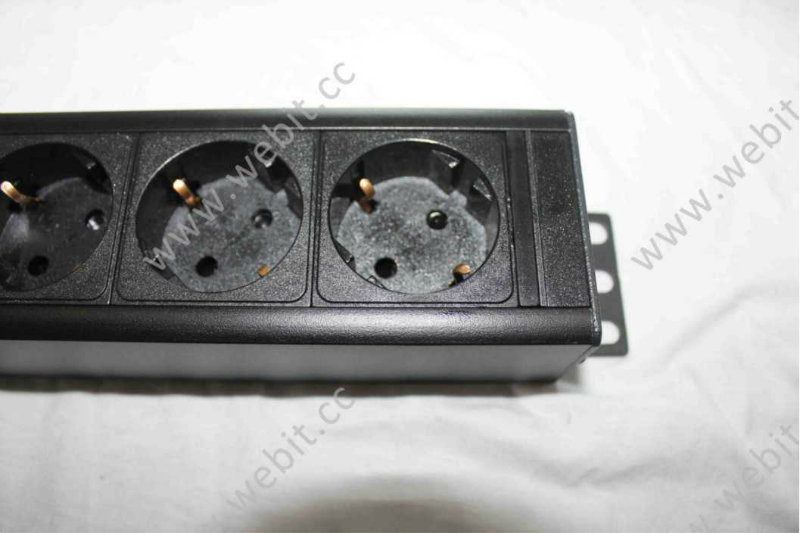

Sockets: 24pcs EURO sockets

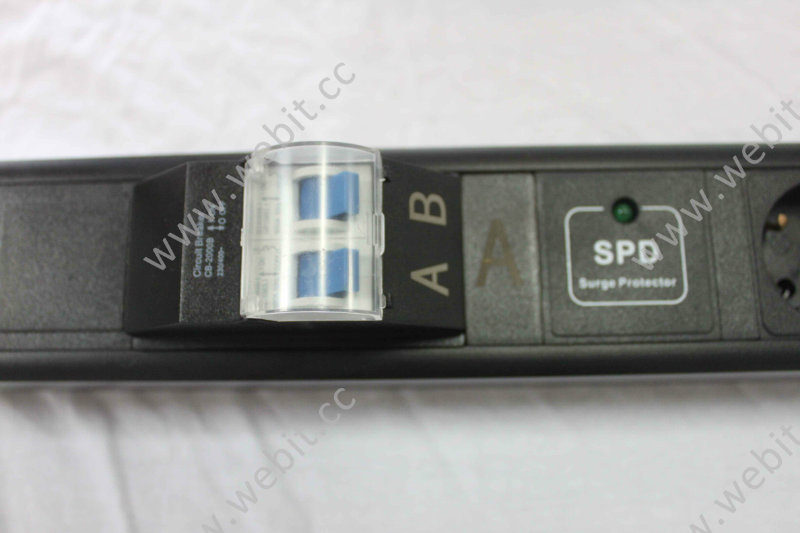

Switch: 2pcs 16A curcuit breakers,each curcuit breaker controls 12pcs sockets individually

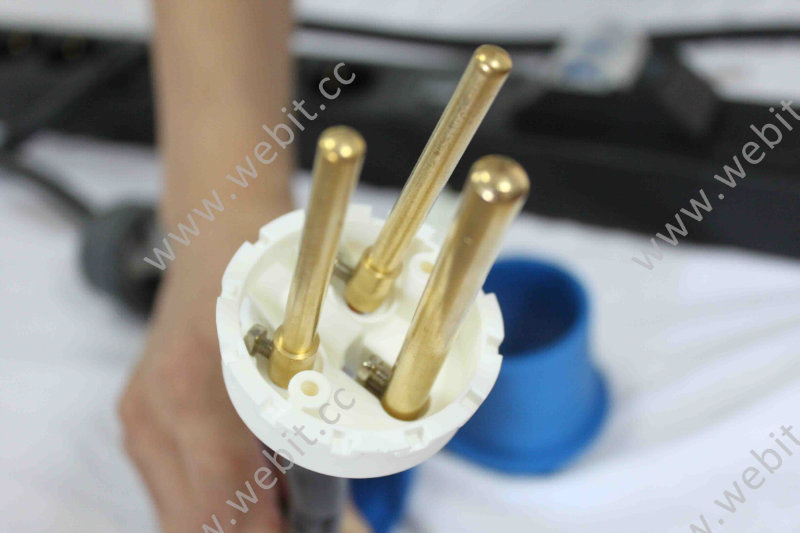

Plug: 16A/32A IEC60309
Main cable: 2~3 m x 3G x 6mm

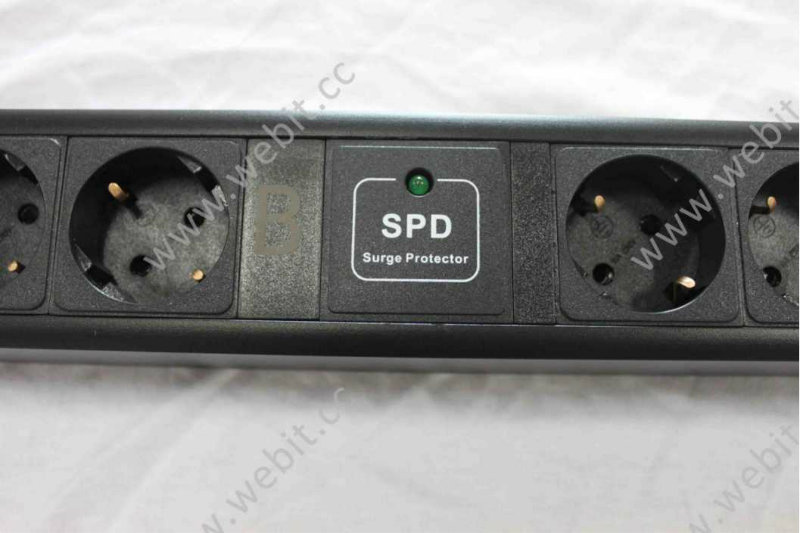

surge prodection function
Additional Funtion: Digital AM meter ,with Earthing cable
| Rated current | 16A |
| Rated load | 10W |
| Rated voltage | 250V |
| Household voltage | 230V |
| Number of sockets | 24 ways |
| Size | 19" 1U |
| Shell material | Uninflammable PC module, Aluminium alloy shell |
| Type of cable | 3G*4mm2*2m |
| Type of plug | Industrial 16A plug, (32A for optional) |
| Degree of protection against electric shock | IP20 |
| Provision for earthing | With earting contact |
| Method of connecting the cable | Non-rewirable |
| Type of connections | Welded-solder |
| Degree of protection against electric shock | Normal protection |
| Existence of shutters | With shutters |
| Method of application-mounting | Portable type
|
==Pictures Show==
