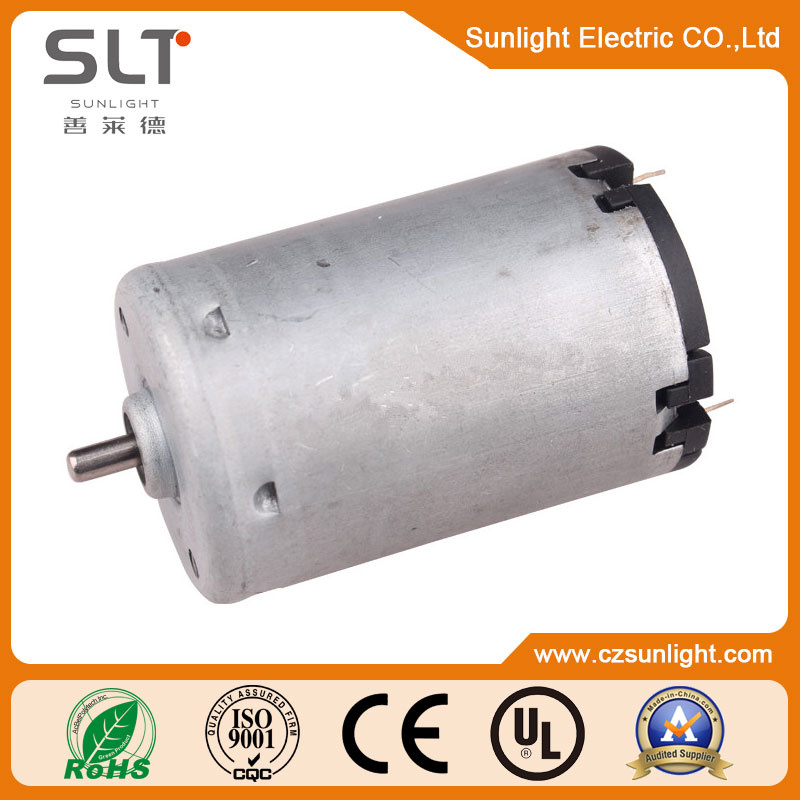

24 V Adjusted Speed Electric Mini Brushed Motor with 1.11A

Prod Model:	SLT-457SD
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Operating Range (V):	15-30
Nominal (V):	24
No Load Speed:	3200r/Min
No Load Current:	0.1A
At Max Efficiency Speed:	2900r/Min
At Max Efficiency Current:	0.35A
At Max Efficiency Output:	8.4W
Stall Current:	1.11A
Name:	24 V Adjusted Speed Electric Mini Brushed Motor Wi
Product Type:	DC Motor
Operating Speed:	Adjust Speed
Excitation Mode:	Excited
Structure And Working Principle:	Brush
Brand:	Slt

Product Description

Character:

1,Normal Voltage:6V-36V
2,No load speed:3000-10000 r/min
3,At Max Efficiency speed:3000-1000 r/min
4,At Max Efficiency torque:3-60 mN.m
5,Product range: diameter 13mm-130mm

Advantages of  DC Motor

A: Save cost, price is low
B: Better reliability.
C: Low energy consumption.
D: Speed is steady.
E: Easy to run and adjust the speed.
F:Small size, easy to carry.
G: Application range is super wide

Specification


Model			SLT-457SD-13150	SLT-457SD-1580
Voltage	Operating Range (V)		15.0-30.0	9.0-18.0
	Nominal (V)		24.00	13.50
NO  Load	Speed	r/min	3200	4150
	Current	A	0.1	0.09
At  Max  Efficiency	Speed	r/min	2900	3350
	Current	A	0.35	0.36
	Torque	mN.m	12	8.2
		g.cm	120	83.5
	Output	W	8.4	4.9
Stall	Torque	mN.m	58	40.8
		g.cm	595	416.4
	Current	A	1.110	1.430

Application:

A:Car (Fan,View mirror,wiper blade,car seat adjustment and so on.)
B.Home Appliance ( Electric cooker, Electric mop and other products.)
C.Medical equipment and beauty products.
D.Office products (such as printer, scanner......)
E. Electrical tools and Garden tools.



Product  Structure

1,Casing bearing;
2,totor;
3,magnet shoe
4,brush group
5,diverter
6,terminal
7,end cap bearing
8,end cover
9,cabinet
10,shaft extension

Packaging & Shipping

1,Inner packing(Waterproof plastic bag packing)+Outer packing(Carton packing)
2,Export wooden box packaging for products.
3,Other package as you required

About sunlight:

1,The company covers an area of 5000 square meters;
2,Modern workshops have advanced production lines and professional knowledge of assembly.
3,Excellent sales team and after-sales service
4,Professional technical team
5,Broad market:Europe(Germany....)America(America,Canada...)
Asian( Korea, Japan...)

FAQ

Q1,Can I have a sample for testing?
A: Yes,of courses we can supply the sample for you !

Q2,I need 12v fan ,is that possible for you ?
A: we can make the voltage according to your requirement , like, 6v ,8v ,9v,12v Just tell me the voltage you want to .

Q3:Can I add my logo on the electric mini brushed motor ?
A:Yes,OEM and ODM are available for us.
But you should send us the Trademark authorization letter.

Q4:How can i get the after-service?
A:We will send you the spare parts by free if the problems caused by us.
If it is the men-made problems,we also send the spare parts,but you should pay.

Q5 :Do you have inspection procedures for electric mini brushed motor?
A:100% self-inspection before packing

Q6:Can we mix the 20ft container?
A: Yes,if the items are meet our min order qty.

Q7:Can I have a visit to your factory before the order?
A: Sure,welcome to visit our factory


Why choose Sunlight

1,Your client satisfied on the right schedule and quality;
2,You can get good reputation from your market and obtain more orders;
3,Our professional service before and after sale;
4,The reasonable and competitive price;
5,Service is excellent.Any questions from you are welcome and will be replied in 24 hours.
6,Delivery on time
