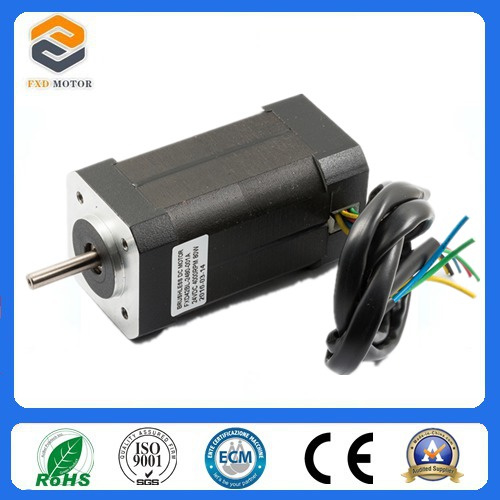

24 Volt Brushless DC Motor with ISO9001 Certification (FXD42BL SERIES)

Name: 24 Volt Brushless DC Motor with ISO9001 Certification (FXD42BL SERIES)
Brand: all-electronics-online.com
SKU: 751292845
Availability: InStock
Rating: 4.6 (139 reviews)

Price:	US $ 35-50/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	FXD42BL SERIES
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Speed Of The Motor:	1000-10000 Rpm
Power Of The Motor:	1-120 Watts
Application:	Power Tools
Operating Speed:	Adjust Speed
Excitation Mode:	Compound
Structure And Working Principle:	Brushless
Type:	Brushless DC Motor
Certification:	CE, RoHS
Brand:	Fxd Motors

Product Description

General Sprcification

Item	Specification
Winding type	Star/Delta
Hall effect angle	120 degree electric angle
Sharf runout	0.025mm
Radial play	0.06mm/50g
End play	0.05mm/50g
Max radial force	28N/20mm from the flange
Max axial force	15N
Insulation class	Class B
IP class	IP40
Dielectric strength	500VDC for one minute
Insulation resistance	100MΩmin 500VDC

Electric connection:

Lead No.	Lead Color	Lead Gauge	Function	Description
1	Red	UL3266/26AWG	VCC	SUPPLY VOLTAGE FOR HALL SENSORS
2	Black		GND	GROUND FOR HALL SENSORS
3	Yellow		HALL A	SINGLE OF HALL A
4	Green		HALL B	SINGLE OF HALL B
5	Blue		HALL C	SINGLE OF HALL C
1	Yellow	UL3266/20AWG	PHASE U	MOTOR PHASE U
2	Green		PHASE V	MOTOR PHASE V
3	Blue		PHASE W	MOTOR PHASE W

Electric Specification:

Model	No. ofPhase	Rated voltage	Rated speed	Rated torque	Rated power	Mass	Body length
Model	Phase	VDC	rpm	N.m	w	Kg	mm
FXD42BL-001A	3	24	4000	625	26	0.25	40
FXD42BL-002A	3	24	4000	1250	52.5	0.35	60
FXD42BL-003A	3	24	4000	1850	77.5	0.45	80
FXD42BL-004A	3	24	4000	2500	105	0.55	100

If you want some special requirement such as different power,voltage,speed and different dimentions, we can product these motors for you.
.

Why choose us?

1. Environmental friendly

2. In time delivery

3. Negotiable and competitive price

4. CE, ROHS, SGS certification

5. In time after-sale service

6.2-year guarantee period

7. Custom products

Changzhou fuxianda Electromechanical Co., Ltd is established in November 2011. Our company is a factory with products Brushless DC motors, Hybrid stepper motors, gearmotors and matched drivers.

Changzhou fuxianda Electromechanical Co., Ltd also have several joint venture companies who specialized in the production of AC servo motor, PM stepper motor, PM synchronous motor and Brush DC motor. We export our motors to more than 10 countries such as United States, France Italy, South Africa and Russia.

The Fuxianda product line is sold to major manufacturing companies for industry for automation, medical and health care equipment, printer machines, packing devices, information technology, household appliance products, and automobile.

We have an engineering team with many years of experience in application engineering, design engineering with the latest advances equipment. Our engineering staff provides the finest quality product with service after the product is delivered to our customers.

The possession of many excellent mechanical-electronical engineers and marketing personnel make our company skillful at providing customers with the plan of products integration.

Most of our products are CE approved. Our company adheres to principles of "Providing green products" and all of our products are RoHS compliant.

As a global supplier, Changzhou fuxianda electromechanical Co., Ltd scrupulously follows the guideline of international commercial rules and practices. We have achieved our reputation of cooperation with our customers over the years. Our Goal is to "Win the market with quality and service" which is the common voice of every Changzhou fuxianda Motor team member.

Good quality, reasonable price, on time delivery, efficient service is our pursuit. We are looking forward to cooperating with more friends in the future.
