| Prod Model: |
PLD240-SMT-36 |
| Output Power: |
240W |
| Dimming: |
0(0.05V)~10V, PWM, External Resistor, Clock, DMX |
| Output Voltage: |
24~36V |
| Output Current: |
8A |
| Usage: |
Construction |
| Output Type: |
Single |
| Driving Method: |
LED Constant Current |
| Circuit Structure: |
PWM Controlled |
| Power Supply Voltage: |
90~305VAC |
| Pack Sealing Size: |
230X68X42.5mm |
| Brand: |
Fsp-Powerland |
Product Description

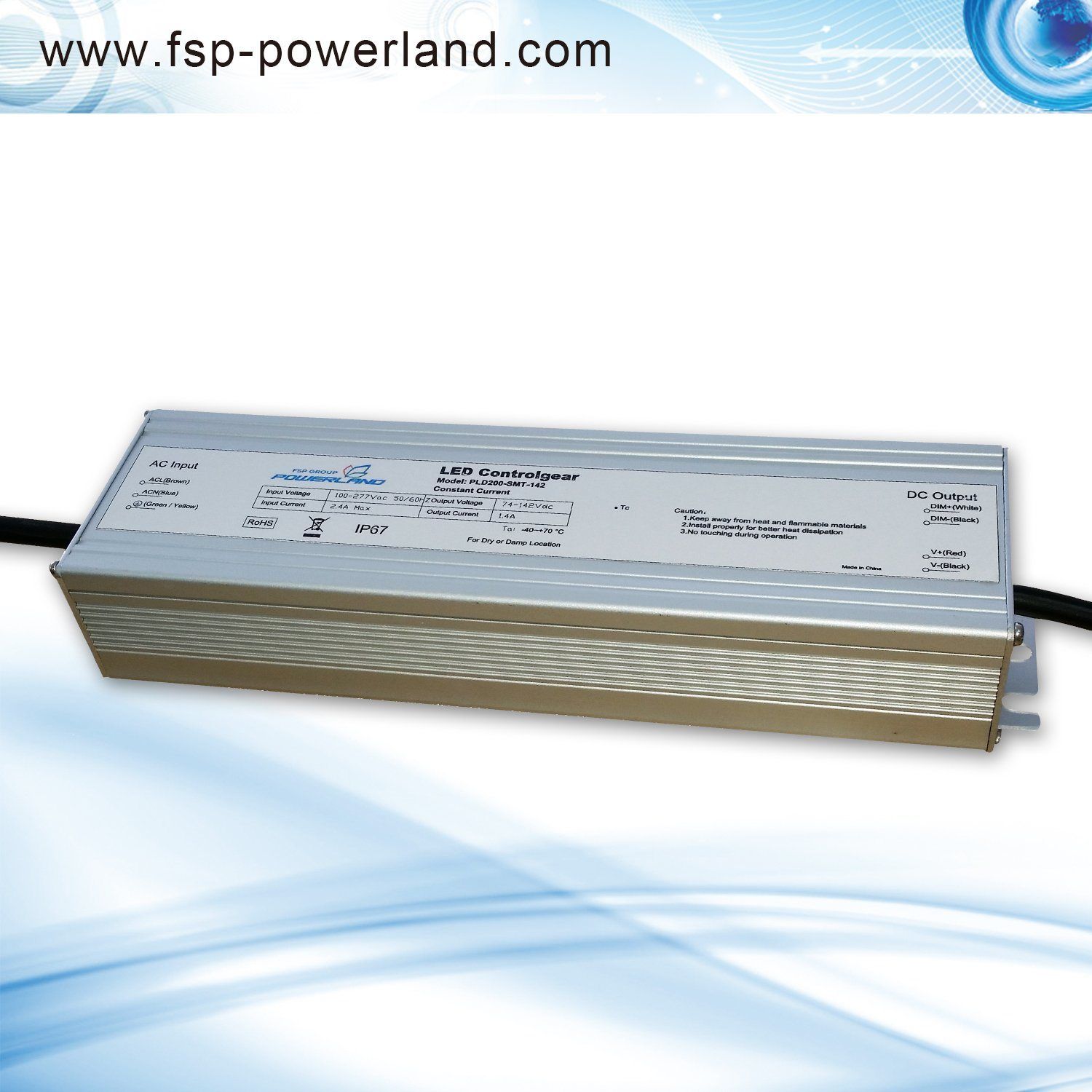

240W 24~36V 8A Outdoor Programmable Constant Current LED Driver
Powerland's PLD240-SMT-36 offers digital programmable drivers with wide-range adjustable output current, together with 12V/100mA auxiliary output (optional) for smart lighting.
The output current of this series is programmable up to 8A and designed for 0(0.05)-10V/PWM/Rset/Clock/DMX (upon request) ultra-deep dimming applications. Bluetooth and Zigbee dimming are provided in B and Z versions, respectively.
Applications
LED lights with flexible current settings
Street lights, high bay and low bay lights, LED panels
Wireless dimming lights
Specifications Input
Voltage | Output
Power | Output
Voltage | Output
Current | Efficiency | Max. Case
Temperature | Max. Input Current | Max. Input
Power | THD | Power
Factor |
| 90~305Vac | 240W | 24V
…
36V | 8A | 92.5% | 90ºC | 3.3A | 280W | <20% | >0.95 |
* Based on 25ºC ambient temperature, rated input voltage, and full load.* Refer to Page 2 for detailed specifications for this series of LED drivers. FeaturesUltra-deep dimming dowm to 0.5% compatible with DMX (upon request)
12V/100mA auxiliary output(optional)
Output current & output voltage programmable>70,000 hours lifetime at 75ºC Tcase >7 years warranty at 75ºC Tcase
IP67 ingress protection
Min. operating temperature @ -40ºC
Constant current & constant voltage output
Compatible with 0(0.05)-10V, PWM, external resistor, clock,DMX(upon request) dimming
Universal input voltage: 90~305Vac
Safety according to UL8750 & EN61347-2-13
Surge voltage rating: L-N 5.5kV, L/NGND 11kV
EMC according to FCC Part 15 Class B
Lightning, OVP, SCP, OTP & Open Circuit Protection
Support wireless dimming (Bluetooth or Zigbee protocol)
Electrical Specifications
Model
| PLD240-SMT-36 |
| Output Voltage |
24~36V
|
Max Output Current
| 8A |
Output AUX Power Voltage (Optional) | 12V |
Output AUX Power Current (Optional) | 0-100mA |
Dimming
| 0(0.05)~10V, PWM, External Resistor, Clock DMX (upon request) |
Wireless Dimming
| B Version: Bluetooth; Z Version: ZigBee |
Current Programmable
| Yes |
Output Power
|
240W
|
Max. Current Ripple
| ±10%Io |
Max. Voltage Ripple
| ±0.5% |
Voltage Range
|
90~305Vac
|
Frequency Range
|
47~63Hz
|
Max. Input Current
| 3.3A |
Max. Input Power
|
280W
|
Power Factor
| >0.95 @ 115Vac & 80~100% load, >0.90 @ 277Vac & 80~100% load |
Efficiency
|
92.5%
|
Max. Open Circuit Voltage
|
45V
|
THD
| <20% @ 100-277Vac & 80~100% full load |
Protections
|
OVP, OTP, OCP, SCP& Open Circuit Protection
|
Environmental Protection
|
UL Dry & Damp & Wet
|
Working Temperature
|
-40~+70ºC
|
Max. Case Temperature
|
90ºC
|
Surge Protection
| L-N 5.5kV, L/N-Earth 11kV |
Agency Approbations
|
UL8750
|
Electromagnetic Compliance
|
Per Title 47 CFR Part 15 Class B
|
Ansi Surge Type
|
1.2/50μs Combination Wave (w/t 2Ω)
|
Isolation
|
Primary to Secondary: 3750Vac / 10mAMax / 60seconds
|
Dimension
| 230x68x42.5 mm (9.06x2.68x1.67 inch) |
Mounting Length
| 242 mm (9.53 inch) |
Overall Length
| 256 mm (10.08 inch) |
Weight
|
1.45 kg (3.20 lb)
|
Life Time
| >70,000 hours @ full load, 75ºC Tcase |
* Unless otherwise noted, the data are based on 25ºC ambient temperature, 230Vac input voltage, and full load.
Electrical Specifications

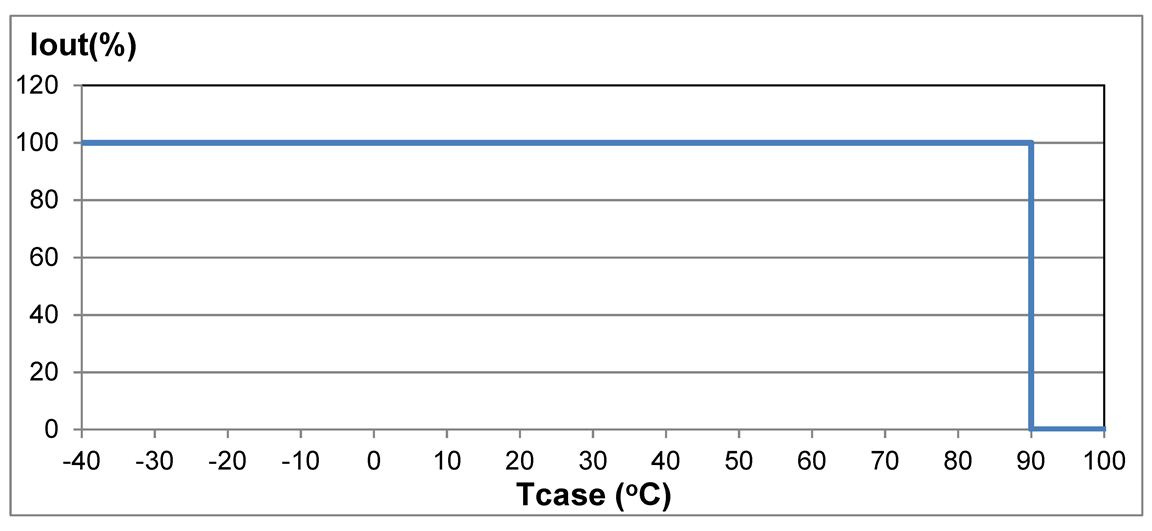

Output Current vs. Case Temperature (with ±5oC Tolerance)
Electrical Specifications

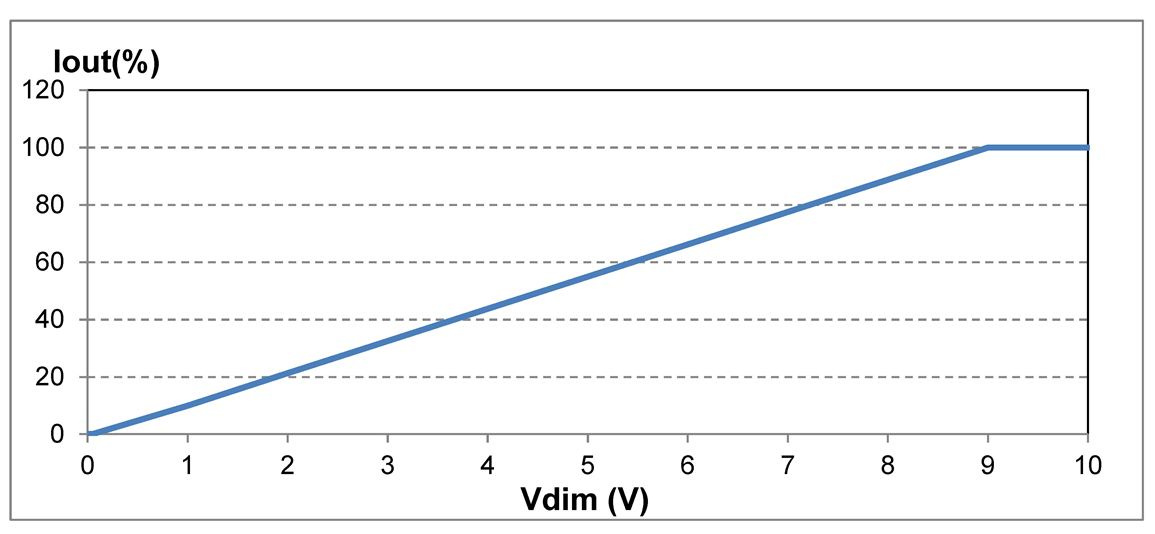

Output Current vs. 0(0.05V)-10V Dimming Control Voltage

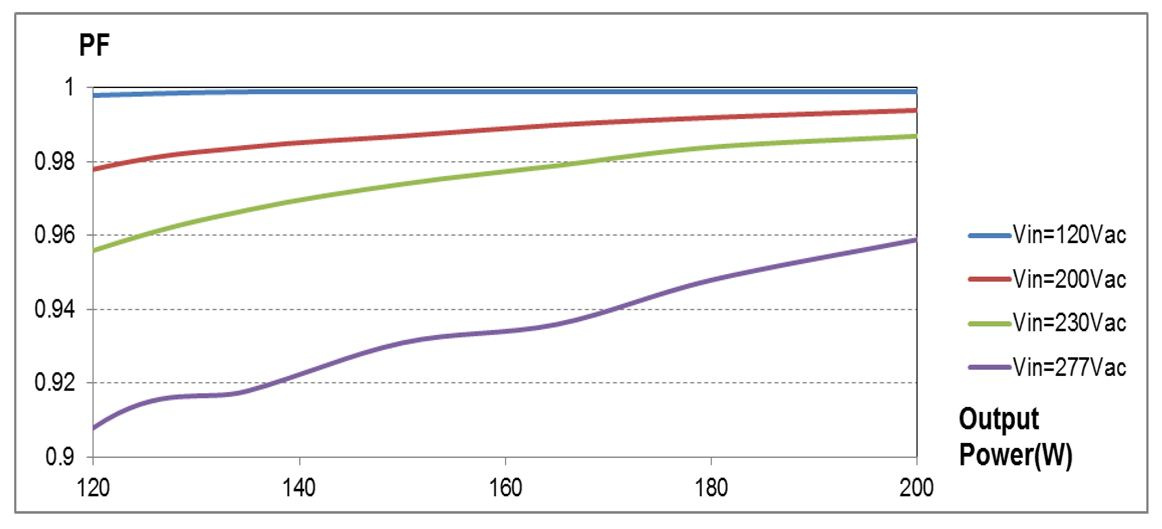

Power Factor vs. Output Power

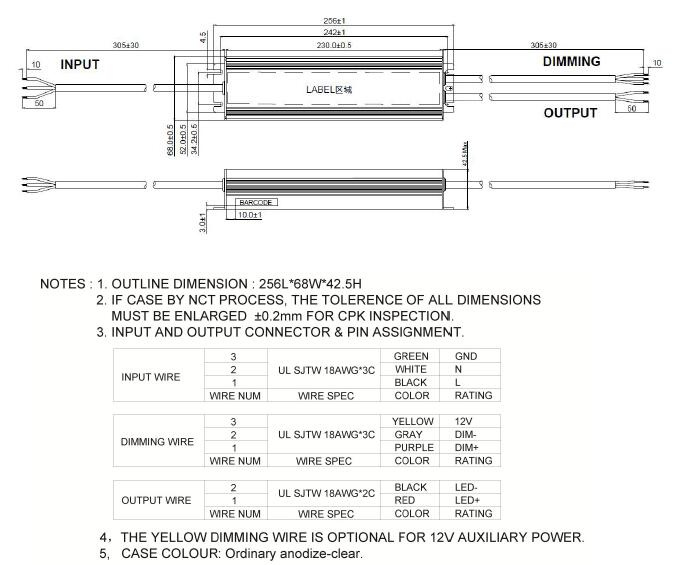

Mechanical Specification
