240W Single Output Industrial DIN Rail Power Supply (HDR-240-48) Input 100-240V AC to DC Output 48V 5A, Ce RoHS ISO9001

240W Single Output Industrial DIN Rail Power Supply (HDR-240-48) Input 100-240V AC to DC Output 48V 5A, Ce RoHS ISO9001
Price: US $ 19.98-23.50/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T
Prod Model: HDR-240-48
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Output Type: Single
Warranty: 2 Years
Connection Mode: Series Switching Power Supply
Starting Mode: Self-excited Switching Power Supply
Voltage Regulating Mode: Width Modulation Type
Power Supplying System: Terminal Power Distribution Equipment
Certification: IEC,GB
Output Power: 240W
Input Voltage: AC85~264
Brand: Dhecn

Product Description

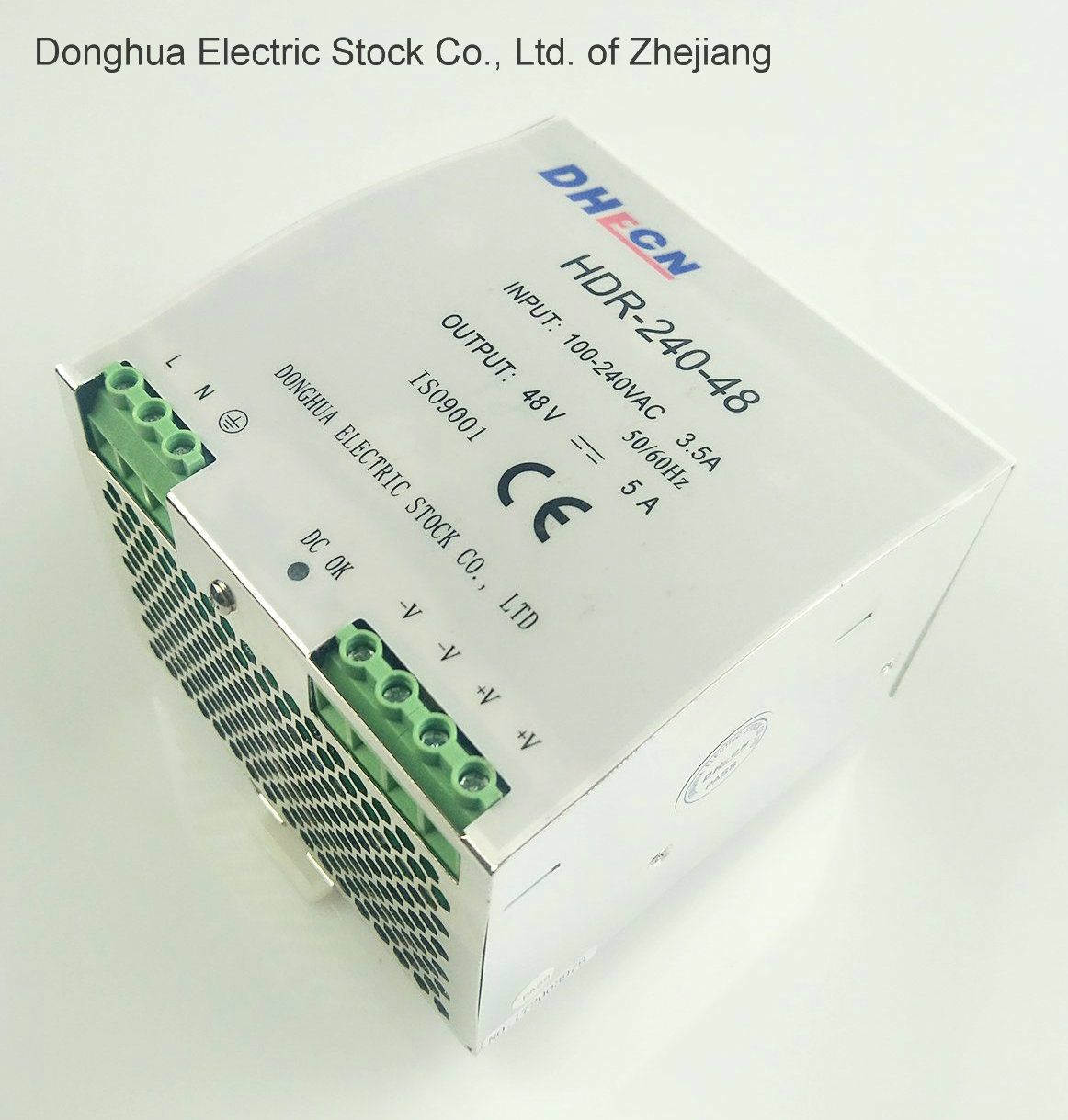

240W Single Output Industrial DIN Rail Power Supply (HDR-240-48)
input 100-240V AC to DC output 48V 5A, CE ROHS ISO9001

Features:
·Universal AC input / Full range
·Built-in active PFC function
·Protections: Short circuit/ Over load/ Over voltage / Over temp.
·Cooling by free air convection
·Can be installed on DIN rail TS-35/7.5 or 15
·LED indicator for power on
·100% full load burn-in test
·Fixed switching frequency at 100KHz
·3 years warranty

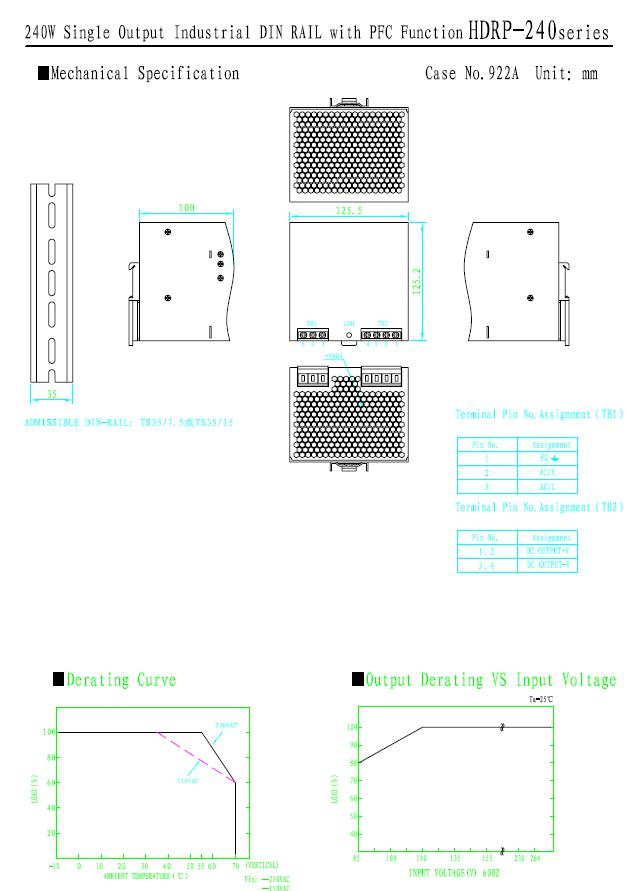

·Dimensions: 125.5*125.2*100mm (W*H*D)

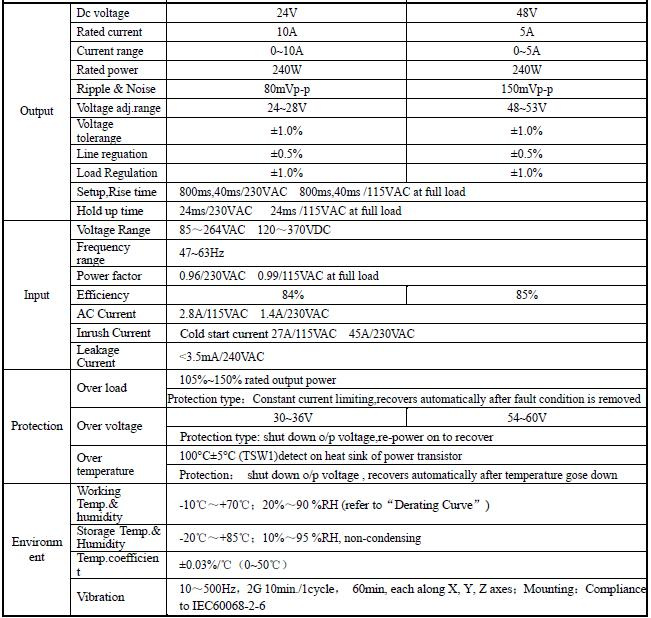

Specification:

1) INPUT
·Voltage Range: 88-264VAC, 120-370VDC; 47-63Hz
·AC Current: 2.8A/115VAC 1.4A/230VAC
·Inrush Current: Cold start 27A/115V 45A/230V
·Leakage Current: <3.5mA/240VAC

2) PROTECTION
·Over Load: 105%-150%; Constant current limiting, recovers automatically after fault condition is removed.
·Over Voltage: 30-36V for 24W, 54-60V for 48W; Shut down o/p voltage, re-power on to recover.
·Over temp.: 100ºC±5ºC(TSW1); Shut down o/p voltage,recovers automatically after temperature goes down.

3) ENVIRONMENT
·Working Temp. & Humidity: -10ºC~+70ºC; 20%~90% RH.
·Storage Temp. & Humidity: -20ºC~+85ºC; 10%~95% RH.
·Vibration: 10~500Hz, 2G 10min./1 cycle, period for 60min, each along X, Y, Z axes.

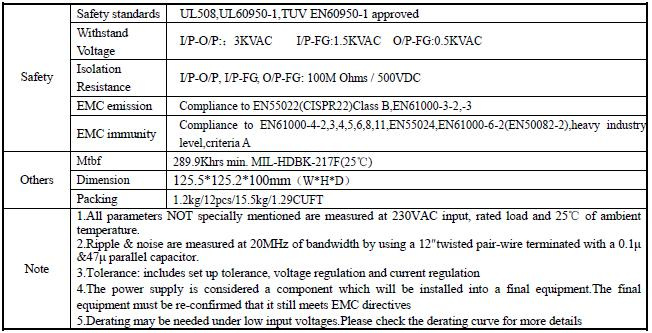

4) SAFETY STANDARDS
·Withstand Voltage; I/P-O/P: 3KVAC; I/P-FG: 1.5KVAC; O/P-FG: 0.5KVAC
·Isolation Resistance: I/P-O/P, I/P-FG, O/P-FG: 100MΩ/500VDC
·Safety Standards: Design refer to UL508, UL60950-1, TUV, EN60950-1
·EMC Standards: Design refer to EN55011, EN55022, EN61000-3-2,-3, EN61000-4-2,3,4,5,6,8,11, EN55024, EN61000-6-2(EN50082-2)

5) OUTPUT
Type No | Output | Tol. | R&N | Effi.

HDR-240-24 | 24V, 10A | ±1% | 80mVp-p | 84%
HDR-240-48 | 48V, 5A | ±1% | 150mVp-p | 85%







Established in 1988, We specialize in manufacturing switching power supply, current transformer, voltage transformer, fuse and isolation switch. Donghua provides you a variety of high quality switching power supply, Transformer, fuse, isolation switch And professional product solution.

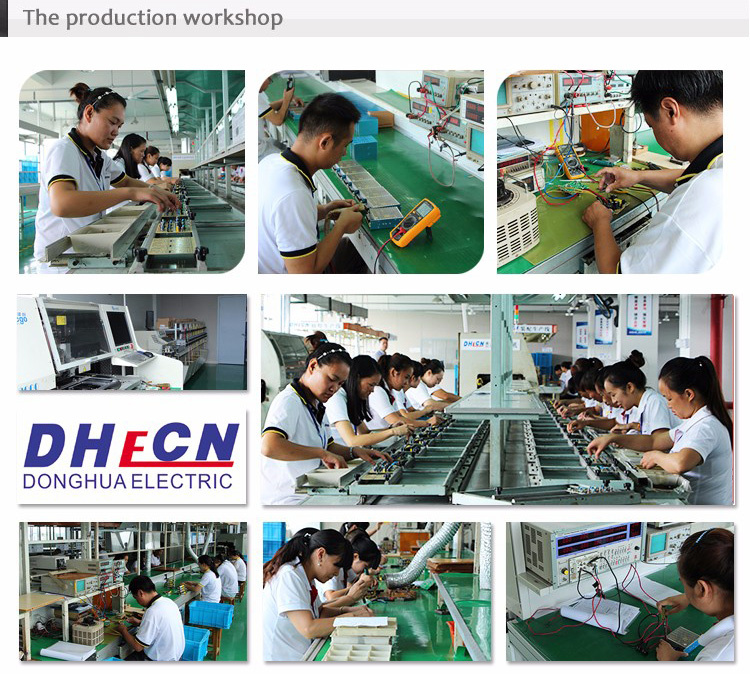

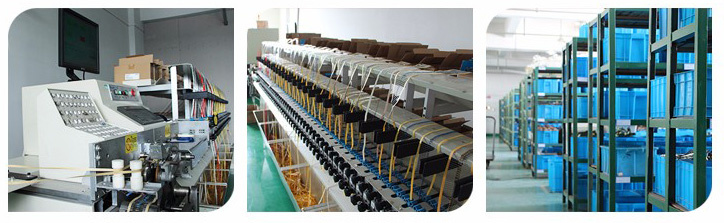

To supply our customers perfect products, we set up R&D department with over 20 experienced engineers and also follow a full set of computerized managementssystem. What' S more, as an ISO9001 certified company, we adopt a strict inspection process and a scientific management system with modern imported manufacturing and testing facilities, succeeded in achieving some safety sertification such as CCC, CE, CB, UL and all products are RoHS Compliance.

Advantage managent and abundant labor in China, let us provide our customers more high reliable quality and more cheaper products, by now, DHECN-SMPS is becoming more and more famous among customers worldwide due to its reliable quality, competitive price, punctual delivery and correct service.

Donghua warmly welcome all old and new customers to visit our company or contact us by Tel, Fax, E-mail. Believing we will be your long-term business cooperator either as a reliable supplier or as a close ODM/OEM partner in China.
