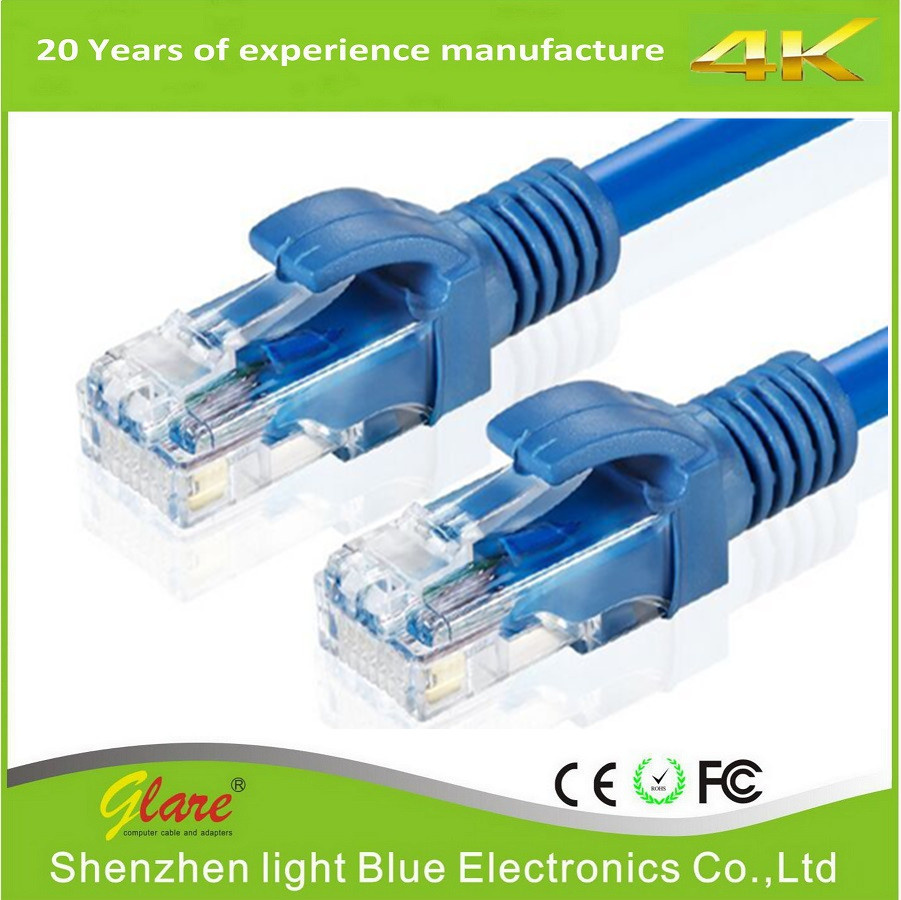

24AWG Bare Copper UTP CAT6 Cable
| Price: |
US $ 0.2-0.3pcs |
| Min Order: |
1000pcs |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
utp cable |
| Cable Use For: |
Computer |
| Cable Conductor: |
28AWG Bare Copper |
| Cable Material: |
PVC and Copper |
| Cable Length: |
as Customer's Request |
| Cable Color: |
Black ,Blue Color |
| Cable Warranty: |
12 Months |
| Cable Packing: |
Poly Bag,Blister ,Gift Box |
| Cable Certification: |
Ce,RoHS |
| Application: |
LAN Cable |
| Conductor Material: |
Copper |
| Cover Material: |
PVC |
| Type: |
Cat 6 |
| Certification: |
VDE |
| Model: |
Lbcable |
| Brand: |
Lbcable |
Product Description
| Item | Lan cable |
| Features | Performance: UTP cat6 cable |
| | The cable standard provides performance of up to 100 MHz
For 10BASE-T, 100BASE-TX (Fast Ethernet) and 1000BASE-T (Gigabit
Ethernet) |
| | Foil shield reduces electromagnetic interference (EMI) for optima |
| Constructions | Diameter:CMR (non-plenum): 6.5 ± 0.2mm
CMP (plenum): 5.5 ± 0.2mm |
| | Shield: Aluminum Foil/Mylar,Braid with bare copper
Drain wire:26 AWG stranded solid tinned copper |
| | Conductors: 26AWG/24AWG solid bare annealed copper |
| Insulation | HD-PE |
| Jacket | PVC |
| | DC resistance: max 9.38/100m (328ft) @ 20C |
| | Delay skew: 45ns/100m |
| | |
Product Description:
Reted temperature: 60°C, 75°C, 90°c
Reference Standard: UL444,UL1581
Bare Solid copper conductor
RoHS/REACH Complied PVC Jacket
Complies to TIA/EIA-568-C.2& ISO/IEC 11801

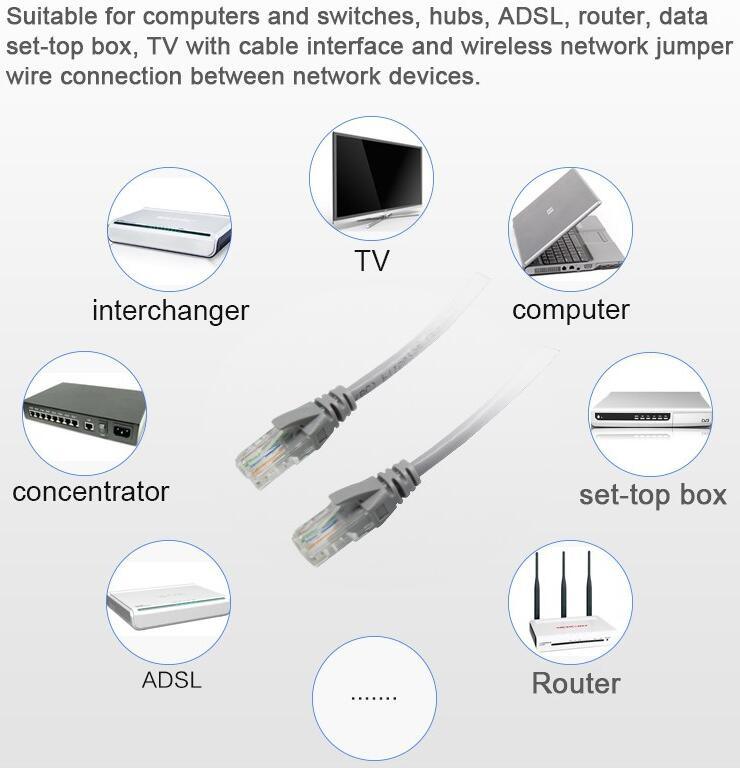

Installation temperatu: -30°c±50° | Application:
100 Base-TX
100 Base-T
100VG-AnyLAN
1000 Base-T(Gigabit Ethernet )
ATM
Noisy Environments |
| Content of Data Sheet |
| Category | U/UTP CAT6-4P-PVC | | | |
| Test Standard | ISO/IEC11801 TIA-568-C.2 YD/T1019 | | |
| Conductor | Material | Solid Bare Copper | | |
| | Nom.O.D(mm) | 0.57 | up | +0.005 |
| | oown | -0.005 |
| Insulation | Material | HDPE 1.02±0.03mm
0.55±0.05mm
6.3±0.4mm
Clean,Frap,SatiationPVCAccording to requires 3.0 ± 0.3mm
Black ≤±0.5%,1m |
| Diameter |
| Sheath | Thickness | Sheath Physical Properties | Before Aging Tensile Stength(Mpa)≥10.0 Elongation(%)≥125 |
| External O.D. | Aging Period(°c×hrs) 100°c×24h×7d |
| Surface | After Aging Tensile Stength(Mpa)≥8.0
Elongation(%)≥100 |
| Material | Cold Bend(-20± 2°c× 4h 8×Cable O.D. |
| Color | Electrical Characteristics(20°C) | 1.0-100.0MHz Impedance 100±15 ohm |
| Printing | Letter Height | Delay Shew(ns/100m) ≤45 |
| Color |
| Print error&Space | NVP 69% |
| Core Color | 1White-Blue/Blue | 2White- Orange/Orange | Capacitance(nF/100m)max: 5.6
|
| 3 White-Green/Green | 4White-Brown/Brown |
| Packing | Wooden Tray&Carton | DC Resistance(Ω/100m)max:9.5 |
| Carton Dimension | 40.5cm ×40.5cm ×21cm
|
| Packing Length | 305 ±1.5m | DC Conductor Resistance Unbalance(%)max 5.0 |
| Rip-cord | YES | Drin Wire | NO |
| | | | | | | | |
Product Parameters | Frequency MHz | RL ≥dB | Attenuation ≤dB/100m | NEXT ≥dB/100m | PHASE DELAY≤ ns | ELFEXT ≥dB/100m | PS NEXT ≥dB/100m | PS ELFEXT ≥dB/100m |
| 1 | | 2.03 | 74.3 | 570 | 67.8 | 72.3 | 64.8 |
| 4 | 20.0 | 3.78 | 65.3 | 552 | 55.7 | 63.3 | 52.8 |
| 8 | 23.0 | 5.32 | 60.8 | 546.73 | 49.7 | 58.8 | 46.7 |
| 10 | 24.5 | 5.95 | 59.3 | 545.38 | 47.8 | 57.3 | 44.8 |
| 16 | 25.0 | 7.55 | 56.2 | 543 | 43.8 | 54.2 | 40.7 |
| 20 | 25.0 | 8.47 | 54.8 | 542.05 | 41.8 | 52.8 | 38.8 |
| 25 | 24.3 | 9.51 | 53.3 | 541.2 | 39.8 | 51.3 | 36.8 |
| 31.25 | 23.6 | 10.67 | 51.9 | 540.44 | 37.9 | 49.9 | 34.9 |
| 62.5 | 21.5 | 15.38 | 47.7 | 538.55 | 31.8 | 45.4 | 28.8 |
| 100 | 20.1 | 19.8 | 44.3 | 537.6 | 27.8 | 42.3 | 24.8 |
| 200 | 18.0 | 28.98 | 39.8 | 536.54 | 21.8 | 37.8 | 18.8 |
| 250 | 17.3 | 32.85 | 38.3 | 536.27 | 19.8 | 36.3 | 16.8 |
Shenzhen Light blue electronics Co,.ltd is a professiona manufacturer specialized in producing network cable, monitoring line,video cable, telephone cable and audio cable which belong to network communication series. We have imported advanced production l ine and testing equipment with strong technical research team and management elite, has strong production capacity, technology research and development, sales
network and customers group of all over the world.
We use a complete set of advanced cable production equipment which is based on " Science and
technology for precuusor, Innovation for development " and produce series of high quality wire products
including wires and cables, equipment, cables connected power of information network integrated system.
Diversified R&D design , Integrated manufacturer,strict quality management and perfect after-sale service
make our products sells well through the country and export Southeast Asia, Europe and America countries
and regions,which won high satisfaction of customers.
Our company insist on"people first,management promote benefit " .We bring in advanced management
models according to current situation of enterprise and already form our own unique management system."
Excellent quality, first-class service " is our goal. All of the staff are now vigorous and healthy with strong
confidence in order to improve vocational quality of librarians constantly and provide safe,durable products
and comfortable, efficient service with strictest working attitude for users.We will make unremitting efforts
towards scientific and environmental enterprise's developing road.
What service will you receive ?
1. The most professional service team connections with factories.
2. Do the business based on the profit of customers. Try best to get win-win.
3. Rapid responce within 24 hours.
4. QC team will check the goods from preparation of materials to delivery of goods.
5. Our Guarantee : Provide the highest level of quality control.
6. Samples are provided if needed.
7. P&P discount for multiple purchases. The more you buy, the more you save!
8. We can make replacements for you if there is any problem about the items after 3 days you receive.
UTP CAT6 CABLE
Company information
Shenzhen Light Blue Electronics Co., Ltd. is a leading professional manufacturer of cable assembly. Our products include HDMI cable, USB3.0/2.0 cable, VGA CABLE,MHL Cable, (DP)Displayport Cable, SATA cable, Network Lan Cat cable, AV cable, Coaxial cable,DVI cable, HDMI adapter, HDMI splitter, HDMI switch, HDMI extender, HDMI repeater, Chargers, Earphone cable, which all attained "CE", "UL", "FCC" and "RoHS", "ATC", ISO9001:2008, ISO14001:2004 certificates, and they have been sold to America, England, Mexico, Germany, Chile, Greece, Australia and European countries. We guarantee each product will be Full-checked 100%. If there are bad products, we will promptly pay compensation to customers without any charge.

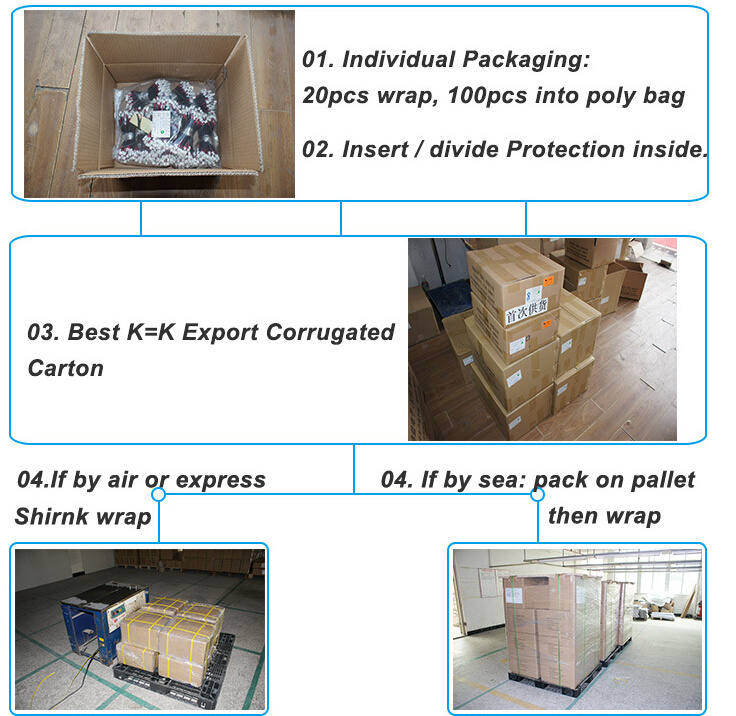

Package information
1pcs/poly bag
250pcs/carton
carton size:46*30*25cm
FAQ
With years of export experience along with excellent quality, advanced services and competitive prices, YITAILI has won numerous customers' trust and support.More detail please contact us.
Payment term?
(1)Payment:T/T only,30%deposit,the balance before delivery.
(2)Production leading time:10-15days,see qty to confirm.
(3)Shipping out:Guangzhou or Shenzhen
Certification
Shenzhen Light Blue Electronics Co., Ltd. is a leading professional manufacturer of cable assembly. Our products include HDMI cable, USB3.0/2.0 cable, VGA CABLE, MHL Cable, (DP)Displayport Cable, SATA cable, Network LAN Cat cable, AV cable, Coaxial cable, DVI cable, HDMI adapter, HDMI splitter, HDMI switch, HDMI extender, HDMI repeater, Chargers, , which all attained "CE", "UL", "FCC" and "RoHS", "ATC", ISO9001: 2008, ISO14001: 2004 certificates, and they have been sold to America, England, Mexico, Germany, Chile, Greece, Australia and European countries. We guarantee each product will be Full-checked 100%. If there are bad products, we will promptly pay compensation to customers without any charge

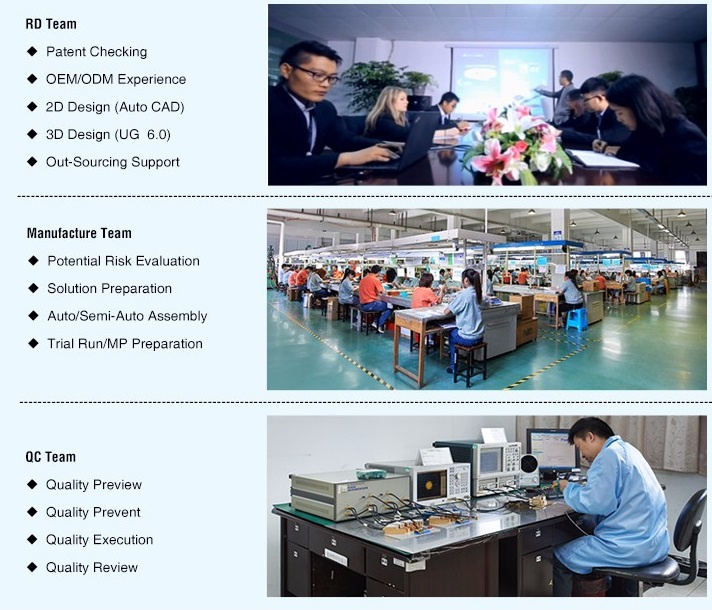

Our factory With strong technical capabilities, complete set of equipment and facilities, advanced technology and perfect testing and inspecting measures, we specialize in designing, developing, manufacturing and marketing connection cables which are applied to all kinds of computer, network, communication, car, medical resource, remote monitoring and household appliances. We can also undertake OEM orders of processing various special fiber optic cables. Our products sell well in domestic and foreign market and are widely used by many famous corporations.
We have set up a functional modern business management system and carried out ISO9001: 2000 quality management system for many years. We are authorized with independent import and export rights. Our products have obtained many product safety certificates including CCC (China) and UL (USA).
We will try our best to satisfy customers' requests. We sincerely welcome all clients to cooperate with us hand in hand for a wonderful future!
