24fiber MPO Bunch Cable 24 Cores Om3 MTP/MPO Patch Cable

Name: 24fiber MPO Bunch Cable 24 Cores Om3 MTP/MPO Patch Cable
Brand: all-electronics-online.com
SKU: 806609655
Availability: InStock
Rating: 4.3 (29 reviews)

Price:	US $ 1-10/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	MPO Patch cable
Cores:	8/12/24 Cores
Connector Type:	Sc, FC, St, LC,E2000, MTRJ, MPO,MTP,Mu,SMA
Storage Temperature:	40deg; C~ 85deg; C
Opreating Temperature:	40deg; C~ 85deg; C
Fiber Size:	0.25,0.9,2.0,3.0mm
Fiber Type:	OS1, OS2, Om1, Om2, Om3, Om4
OEM:	Available
Customized:	Available
Leading Time:	Depends on Qty
Application:	Communication
Type:	Multi-mode Fiber
Connection Structure:	LC
Certification:	ISO140001

Product Description

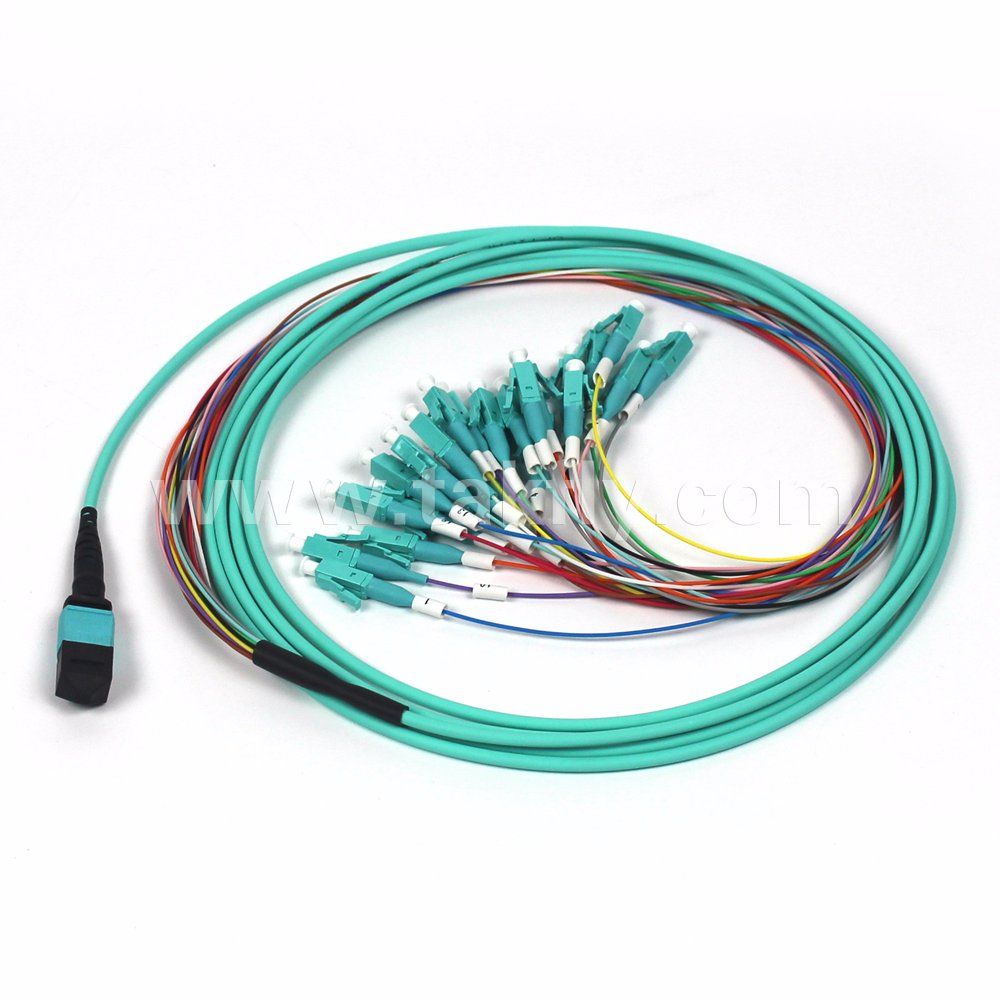

24fiber MPO Bunch Cable 24 cores OM3 MTP/MPO Patch cable

General Details:
Takfly MPO/MTP to LC SM/MM Fan-out/Breakout Harness cable assembly is mainly used for 10G/40G/100G, The LC fan-out cable with 2.0mm/3.0mm branch cable, the LC side could adopts uni-boot/single boot Duplex LC or dual boot duplex LC connector. The Harness MPO/MTP cable supports polarity support both type A and type B.

Features:
Fiber pre-position (AB/BA)
Compact size, easy to manage
LC/SC/ST/E2000 simplex/duplex connector available in single fiber connector interface
MPO/MTP connector with 12 or 24 fibers
Corning fiber available for selection
Rugged fan-out: Round fan-out cable jacket with 2.0mm diameter
Customized fan-out cable length to cater for different installation situations

Application:
Data Center Infrastructure
High Density Fiber Cabling System
High integrated instrument and components
High Precision Communication Device

Specification:
MPO/MTP Connectors

Optical Parameters
Insertion Loss (dB)	SM Standard		SM Elite	MM Standard	MM Elite
	≤0.7		≤0.35	≤0.5	≤0.35
Return Loss (dB)	≥60(APC)	≥50(PC)		≥30
Durability (dB)	≤0.2 500 times mating
Tensile Strength (kgf)	10
Working Temperature (ºC)	-40 ~ +85
Measurement Wavelength (nm)	1310/1550			850
Avg. Fiber Height Error (nm)	-300			+300
Central Concave (nm)	300

LC Fiber Connector

Fiber Mode	Single Mode		Multimode
Connector Polishing	PC	APC	PC
Insertion Loss(dB)	≤0.3
Return Loss (dB)	≥50	≥60	≥35
Repeatability (dB)	≤0.2 1000 times mating
Working Temperature (ºC)	-40 ~ +85
Measurement Wavelengths (nm)	1310/1550		850
