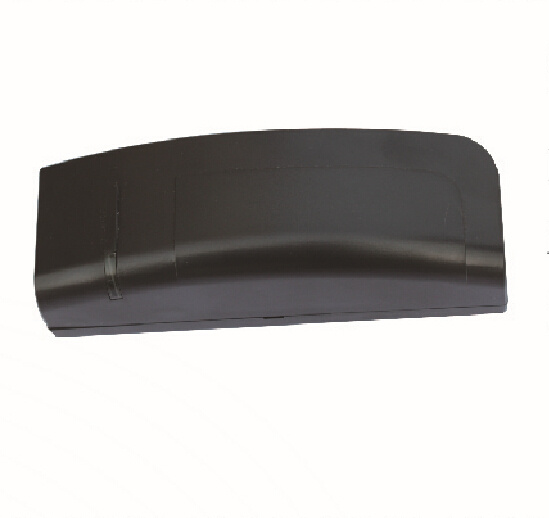

24G Hz Microwave Sensor

Name: 24G Hz Microwave Sensor
Brand: all-electronics-online.com
SKU: 695925332
Availability: InStock
Rating: 4.3 (71 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Money Gram,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	DL8
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Brand:	Deper
Single Or Double Beam:	Double
Dimension:	1414645mm
Weight:	180
Code:	Dl8
Cable Length:	2.5m
Color:	Black, Silver Grey
Standard:	Standard
Size:	120 Type
Type:	Microwave Sensor Switch
Certification:	CE
Principle:	Photoelectric
Wires:	Two-Wires
Application:	Automatic Door

Product Description

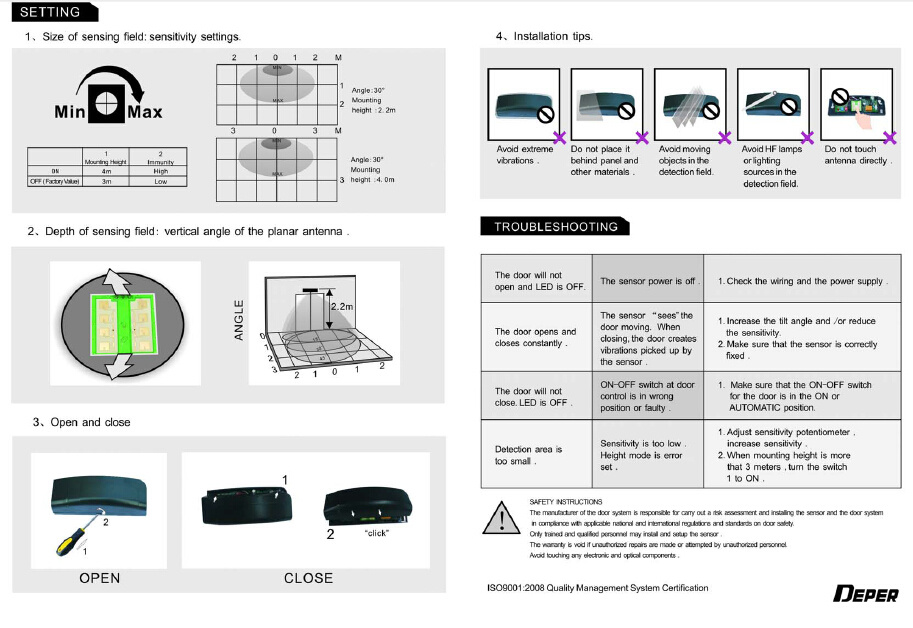

Technical Data
Transmitter frequency: 24. 125 G Hz
Transmitter radiated power : < 20 dBm ERIP
Transmitter power desity : <5mW / cm^{2
Max mounting height: 4 m
Tilt angles : 15° , - 45 °
Max detection field : 4*2 m (mounting height 2.2m)
Detection mode: motion
Min speed: 5cm/s (measured in the sensor aixs)
supply voltage: AC/ DC 12-24V
Main frequency: 50 Hz , 60 Hz
Pover consumption: 2 W
Max contact voltage: AC 42 - DC 60
Max contact current : 1A
Max switch power: AC 60 VA, DC 42 V
Output hold time: 0.5 s
Temperature range: -20 ~ +50 ºC
Degree of the protection: IP52
Housing material: ABS
Housing color: silver grey , black
cable lenght: 2.5 m

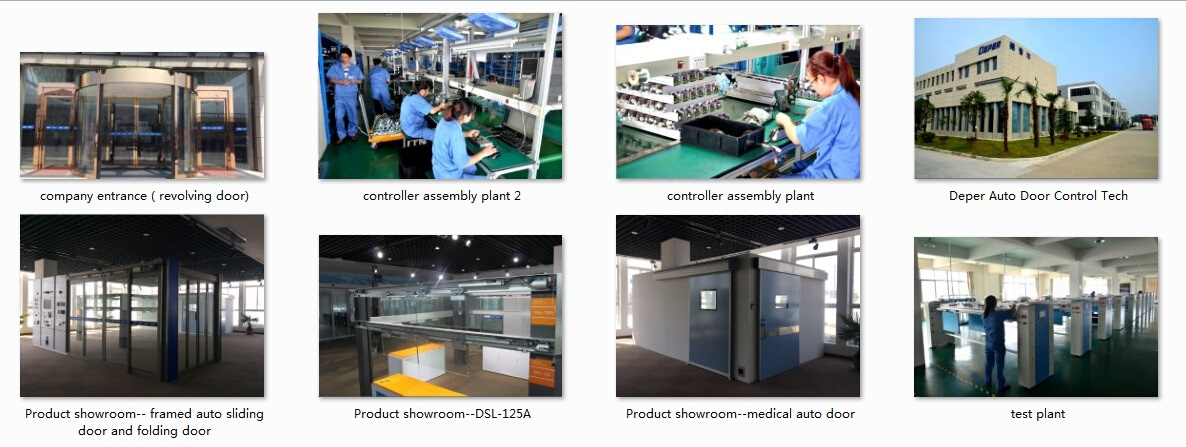

Our factory

Certificates}

DEPER Automatic Door is a company integrating the research and development, design, manufacture, sales, installation and service of integrated professional automatic doors.

Products include Sliding Auto-Doors, Swing Auto-Doors, Auto-Revolving Doors, Hermetic Auto-Doors, Cured Sliding Auto-Doors and Telescopic Door and Folding Auto-Doors.

DEPER doors are widely applied and efficiently operated in office buildings, public buildings, hotels and restaurants, homes, hospitals, banks, supermarkets, airports and railway stations and factories in Asia, Europe, Australia, America and Africa.

DEPER are adhering to the spirit of "honest, truthful, fair and innovative". With new management concept and quick and considerate service, we provide users with products with first-class quality and perfect appearance. We also expect to cooperate sincerely with friends from all circles on the equal and mutually beneficial basis.

DEPER expects to share scientific and technological achievements with you.

DEPER from now on is the PRODUCTION BASES OF AUTOMATIC DOORS in China! !

DEPER welcome you to join us!
