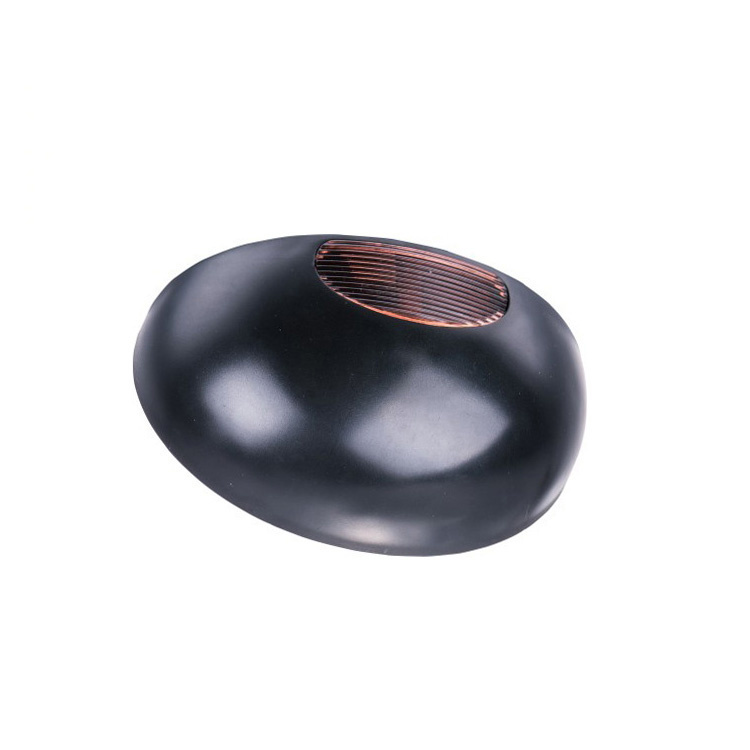

24GHz Microwave Doppler Motion Sensor for Automatic Door (Y105)

Name: 24GHz Microwave Doppler Motion Sensor for Automatic Door (Y105)
Brand: all-electronics-online.com
SKU: 821089025
Availability: InStock
Rating: 4.9 (30 reviews)

Price:	US $ 10-18/Piece
Min Order:	100/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	YH105
Power Supply:	AC 12V-24V +/- 10%; DC 12V-30V
Door Sensor GHz:	24.125GHz
Mounting Height:	Max 3.5m
Output Retention Time:	0.5 Second
Weight:	100g
Conducting Wire Length:	2.5m
Outer Covering Color:	Black

Product Description

Product features

1.Germany Innosent detecting chip, 24.125GHZ.

2.Electric filter provide a good capacity of resisting disturbance from raining, wind, lighting and so on.

3.Safe, beautiful, economic, comfortable.

Specifications

Hot sale & Cheap price microwave sensor for automatic door opening (Y105)
Approval	CE & SGS
Lunch frequency	24.125ghz
Launch power	<20 dBm EIRP
Launch frequency density	< 5mW/ cm ²
Assemble a dip angle	15°, 30°, 45°, 60°
The maximum checks range	42m(WH)
(whlie assembling 2.2 meters of altitude)	42m(WH)
Checking pattern	Move
The minimum checks speed	5cm/s (Along the longitudinal axis of air wire to tests)
Power source voltage	12V-24V AC(+/-10%), 12V-30V DC
Power source frequency	50-60HZ
Power dissipation	<2W(VA)
The relay outputs(there be no initial electric potential)
Maximal contact voltage	42V AC-60V DC
Maximal contact electric current	1A(Electric resistance)
The maximum change power	30W(DC) / 60VA(AC)
Output retention time	0.5 second
Temperature range	-20ºC~55ºC
Protection rate	IP 52
Outer covering material	ABS Plastic
Outer covering color	Black
Weight	100g
Conducting wire length	2.5m
