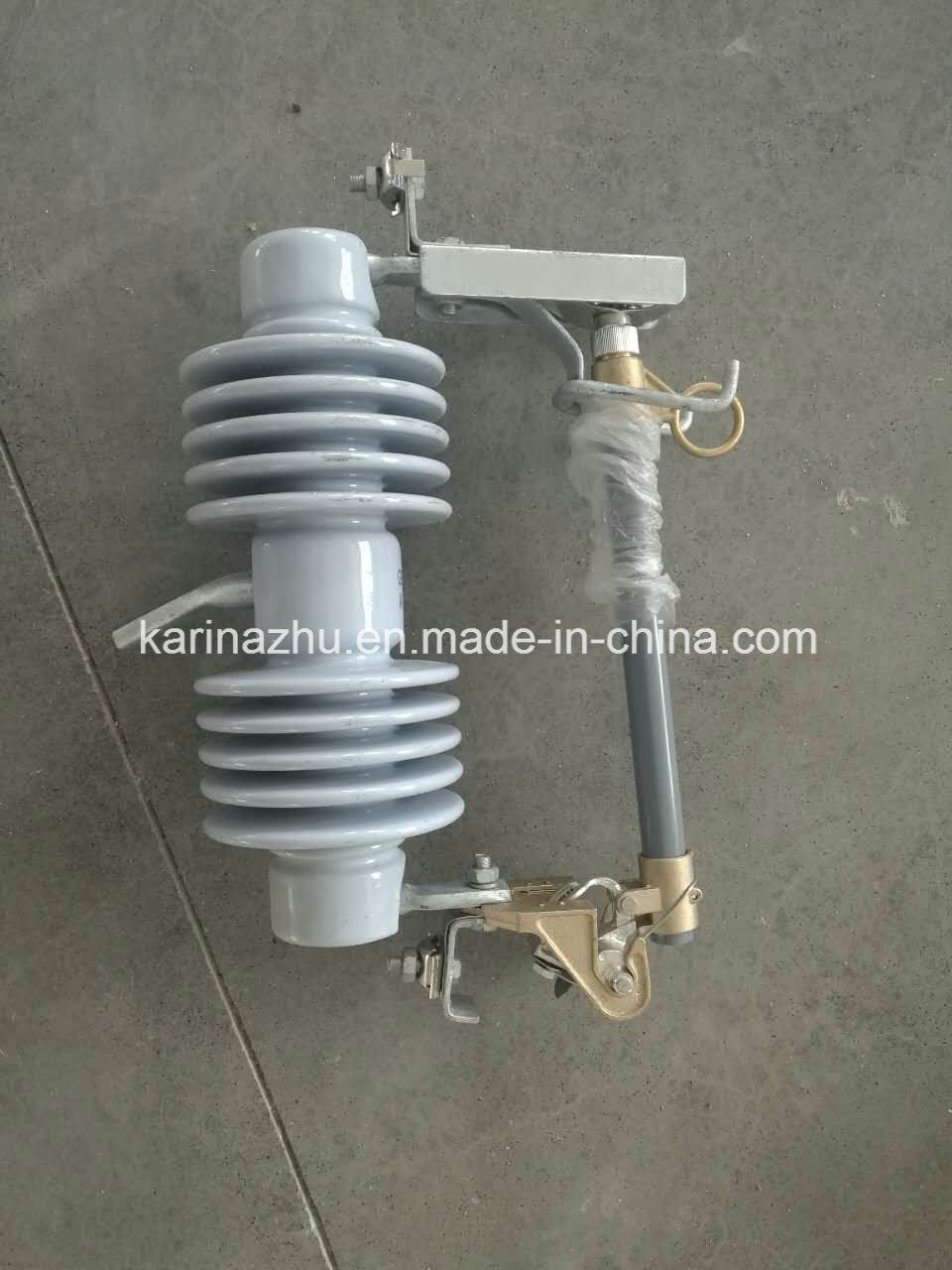

24kv-100A High Voltage Drop out Fuse Cutout

Name: 24kv-100A High Voltage Drop out Fuse Cutout
Brand: all-electronics-online.com
SKU: 802562255
Availability: InStock
Rating: 4.3 (93 reviews)

Price:	US $ 18.99-25.99/Piece
Min Order:	100/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	RW12-24-100A
Operation:	Electric Type
Installation:	Fixed
Speed:	High-Speed Circuit Breaker
Structure:	Moulded Case Circuit Breaker
Arc-Extinguishing Medium:	Vacuum
Function:	Ovp(Overvoltage Protection)
Certification:	ISO9001-2000
Breaking Capacity:	High
Usaga:	High Voltage
Type:	Fuse Cutout
Standard:	IEC282

Product Description

Condition of Use:
1. The ambient air temperatures within the range of -30 degreeto +40 degree;
2. The altitude above sea level not exceeding 1, 000m; (If the altitude is higher than 1, 000, it needs adjust. )
3. Frequency of the A. C. Power supply not less than 48Hz and not exceeding 52Hz;
4. Earthquake intensity not exceeding 7 degrees;
5. Maximum wind speed not exceeding 35m/s.

Technical Standard:
The technical performance of the products is in confirmed to IEC291, 282.

Type	Rated voltage(KV)	Rated current(A)	Breaking current(KA)	Impulse voltage(KV)	Power-frequency withstand voltage(KV)	Leakage distance(MM)	Weight (KG)
HRW12-24/100	24	100	10	125	70	350	5.5

FAQ
Q:Why choose us ?
A: we are a manufacturer, we have been manufacturing arrester & fuse cutout & insulator with 13 years .

Q. what is your payment term?
A: T/T 30% down payment, balance to be paid before shipment. or L/C.

Q:Can we print our logo on your products?
A: yes, we offer OEM/ODM service, we support the customized logo, size, package,etc.

Q: what is your main market?
A: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe

Q: Can I get samples from your factory?
A: Yes, Samples can be provided.

Q: If products have some quality problem, how would you deal with?
A: We will responsible for all the quality problems.

Zhejiang Zhongneng Electrical Co., Ltd., located in Zhejiang Province, is the key medium/high voltage electric productive enterprise of FATO Mechanical and Electrical Equipment Group Co., Ltd.And a provincial advanced enterprise, mainly producing 220kV and below high voltage electro ceramic products, especially lightning arrester series, composite insulator series and drop-out fuse cutout series, and low-voltage surge protective device series.Our products have complete testing devices and strict quality and production management systems.Our products are known for the characteristics of solid power, advanced science and technology, considering service and solid quality.Moreover, for some core products, we have the independent intellectual property right.

Our corporation has the independent corporate capacity.Our progenitor is the division store of Suzhou Surge Arrester Co., Ltd.Which is founded in 1989, and after joined into FATO Mechanical and Electrical Equipment Group Co., Ltd.In 2003, we changed the name to Zhejiang Zhongneng Electrical Co., Ltd.

Zhejiang Zhongneng Electrical Co., Ltd.Is the professional over-voltage protectors manufacturing enterprise, and a member unit of China Electric Industry Association.We passed the certification of ISO9001 quality system and confirmed to standards such as IEC 60099-4, 61643-1, 291, 282 issued by international electric and industrial committee.Moreover, we have a long-term technical cooperation with many technical and research institutes and core enterprises in this industry line, and the qualities of our products can stand long-time decimation.

Following the technical and economical developing step, and the globalization process, in the merger process of global advantage resources, we constantly expect the cooperation coming from global partner.We are looking forward to cooperating with you!
