| Prod Model: |
hc-61 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Rated Current: |
200A/600A |
| Max Impluse Voltage: |
125kv |
| Rated Voltage: |
12/20kv |
| Partial Discharge: |
20kv,Equal or Less Than 5PC |
| Application: |
Low-voltage |
| Structure: |
Bushing Insulator |
| Type: |
A Type Insulator |
| Material: |
EPDM |
| Color: |
Black |
| Brand: |
Hifuture |
Product Description

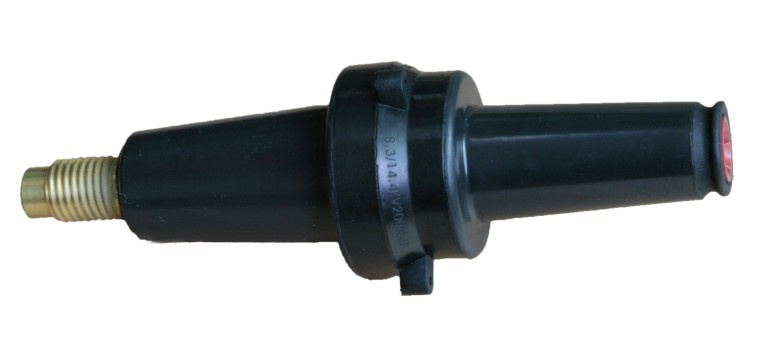

24kv 200A American Type Transform Adapter
Range of Application
Multiline branch can be made with additional using of 20kV American T type separable connector.
Product Description
Product adopts EPDM material to produce, which with excellent aging resistance, electrical insulation property, corona resistance, ozone resistance and good chemical stability, can be operated under any working conditions.
Each batch of raw material takes the mechanical properties and electrical properties index testing, which ensures product quality from source.
Import DESMA solid injection production system, with dustless and air-conditioned manufacturing shop, and constant temperature and humidity all year round, which ensures the product not affected by external environment and the quality stability of product.
Product structure design complies with IEEE386 standard requirement, and meets the performance requirement of IEC60502,GB12706.4 standard, which is safe and reliable with long period operation.
With professional engineering installing team, and years of installation and operating experience, providing the field installation and guide installation, we can make sure the finished product installation quality.
Technical Feature
Using 200A American transform adaptor with 600A T type connector, it can be connected with American elbow connector.
Used 600A American transform adaptor with 600A American T type connector, equipment wire can be divided to improve the utilization of switchgear.
Technical Parameter
| rated voltage | 12/20kV |
| rated current | 200A/600A |
| the highest operating voltage | 24kV |
| power frequency withstand voltage | 54kV, 5min,
54kV,5min,no flashover, no breakdown |
| partial discharge | 20kV,≤5pc |
| impulse voltage test | 125kV,±10 times |
Specification
| Voltage Level | Name | Type |
| 12/20kV | 200A American transform adaptor | HCPS-EH-20/200 |
| 600A American transform adaptor | HCPS-EH-20/600 |
