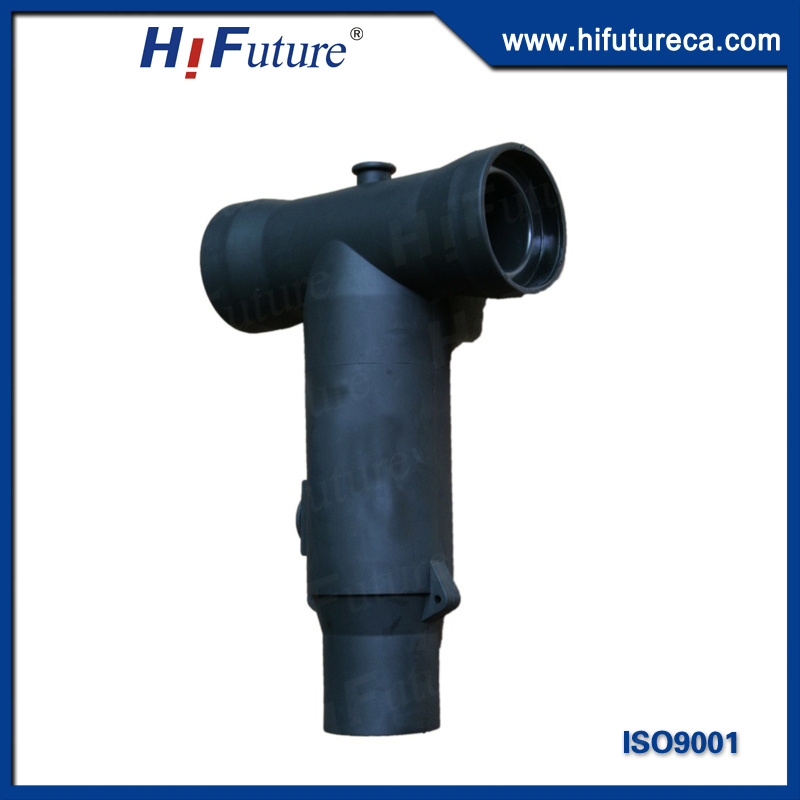

24kv American Tee Type Separable Connector

Prod Model:	hc-58
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Rated Voltage:	24kv
Cross Section:	25-500 Sqmm
The Highest Operating Voltage:	17.5kv
Cable Accessories Conductor Material:	Copper,Copper and Aluminum
Gender:	Male
Application:	Power

Product Description

24kV American Tee Type Separable Connector

Range of Application
Product apply to XLPE cable for voltage level of 12/20kV,mainly used for insulation protection of inlet-outlet wire bushing of switch cabinet, branch cabinet and other electric equipment, and widely used in American ring main unit, branch cabinet, enclosure substation and other electrical equipments.

Product Description
Product adopts EPDM material to produce, which with excellent aging resistance, electrical insulation property, corona resistance, ozone resistance and good chemical stability, can be operated under any working conditions.

Each batch of raw material takes the mechanical properties and electrical properties index testing, which ensures product quality from source.

All finished products 100% takes the factory performance test (power frequency withstand voltage, partial discharge)

Import DESMA solid injection production system, with dustless and air-conditioned manufacturing shop,  and constant temperature and humidity all year round, which ensures the product not affected by external environment and the quality stability of product

Product structure design complies with 600A bushing size requirement of IEEE386 standard, and meet the performance requirement of IEC60502,GB12706.4 standard, which is safe and reliable with long period operation.

With professional engineering installing team, and years of installation and operating experience, providing the field installation and guide installation, we can make sure the finished product installation quality.

Technical Feature
DXN-T and ESI can be installed in the product, which can make the equipment operational condition more clear.

Product can be connected with 200A elbow separable connector through 200A Transform Adapter.

Product can be extended backward by 600A transform adaptor to fulfill multi branch function.

Full screened design in product surface, screened resistance lower than 5kΩ, which ensures the safety of product operating and operator, as well as achieve the performance of all insulation, whole sealing, protection, maintenance-free, dust-resistant and so on.

Application

Screen method	Cable Type	Terminal	Conductor Cross Section mm2
Copper Strips Copper Wire	Single Core Three Core	Copper Copper Aluminum	25  35  50  70  95  120  150  185  240  300  400  500

Technology Parameter

rated voltage	12/20kV
rated current	600A
the highest operating voltage	24kV
cable accessories conductor material	copper,copper and aluminum
long-time running temperature	-40ºC to 95ºC
short circuit temperature	250ºC,less than 5s
power frequency withstand voltage	54kV,5min, no flashover, no breakdown
partial discharge	20kV,≤5pc
impulse voltage test	125kV,±10 times
short circuit thermal stability (conductor)	20KA,2s 2 times, no visible damage
short circuit dynamic stability	50kA,no less than 91ms,no visible damage
screened resistance test	before and after aging, screened resistance not bigger than 5000Ω
screened leakage current	Under 24kV, leakage current no bigger than 0.5mA

 Specification

Voltage Level	Type	Conductor Cross Section mm2
12/24kV	HCPS-EQ-20/600-T1	25-500
