24kv Outdoor Epoxy Resin CT or Current Transformer Lzzw-24

Name: 24kv Outdoor Epoxy Resin CT or Current Transformer Lzzw-24
Brand: all-electronics-online.com
SKU: 757683485
Availability: InStock
Rating: 4.5 (39 reviews)

Price:	US $ 450-480/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,D/P,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	LZZW-17.5(24)
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Current Transformer:	CT
Epoxy Resin:	17.5¬24
24kv:	Outdoor
Application:	Switchgear
Type:	Current Transformer
Phase:	Single

Product Description

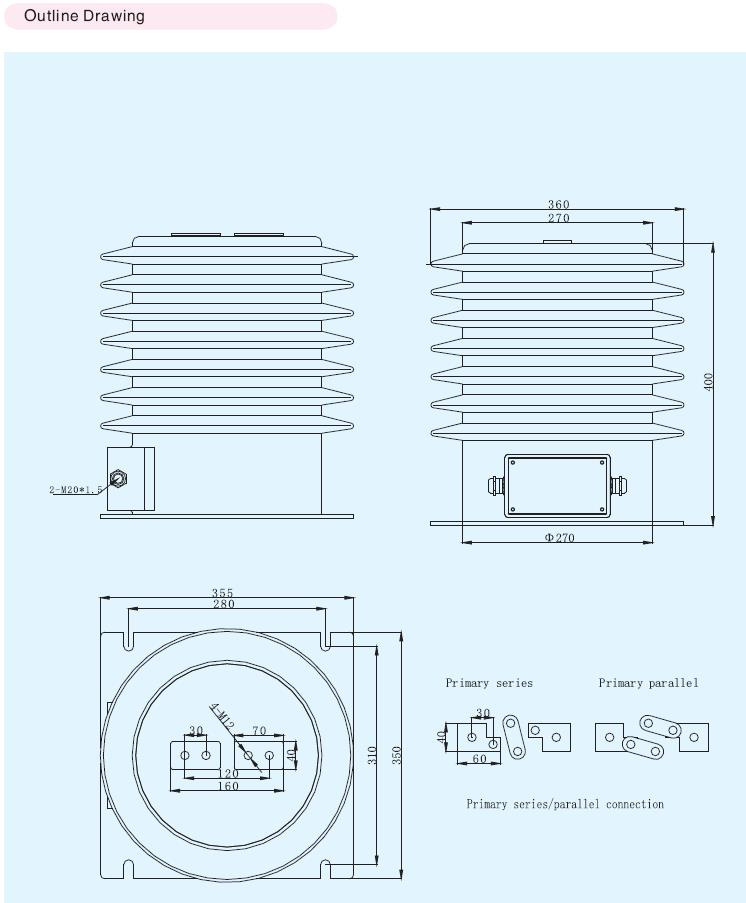

LZZW-17.5(24) Outdoor Current Transformer

Description
LZZW-17.5(24)current transformer, outdoor epoxy resin casting insulation and fully enclosed support construction, encloses the primary & secondary windings and annular core in the epoxy resin casting body. The product has large periphery insulation creep distance, withstanding dirtiness and dampness. Be suitable for measuring electric capacity, current and protective relaying in the power system of 17.5kV (Up to 24kV).

Main technical parameter
1. Rated voltage: 13.8 kV or 15 kV or 20 kV or 22 kV.
2. Rated secondary current: 5A or 1A
3. Rated insulation level: 17.5/38/95 kV or 24/50/125 kV.
4. Standards: IEC60044-1.2003 Part 1: Instrument transformers-Part1: Current transformers
5. Other technical parameter pls see as follow:

Single ratio

Rated transformation ratio(A)	Accuracy classes combination	Rated output (VA)			Rated short-time thermal current (kA/S)	Rated dynamic current ( kA)
		Measuring		Protective
		0.2(S)	0.5	10P
30-200/5	0.2(S)/ 0.2(S) 0.2(S)/0.5 0.2(S)/10P 0.5/10P	10 15	15 20	20 25	150I1n	375I1n
300/5					31.5	80
400/5					40	100
500/5					50	100
600/5					63	130
800/5					80	160

Double ratio

Rated transformation ratio(A)	Accuracy classes combination	COS =0.8 Rated output (VA)			Rated short-time thermal current (kA/S)	Rated dynamic current ( kA)
		Measuring		Protective
		0.2(S)	0.5	10P
30-60/5	0.2(S)/ 0.2(S) 0.2(S)/0.5 0.2(S)/10P 0.5/10P	10 15	15 20	20 25	2	5
50-100/5					8	20
100-200/5					15	37.5
200-400/5					30	75
400-800/5					63	130

Remarks: Upon request we are glad to offer transformers according to other standards or with non-standard technical specs.

Work with us, a CT and relay assembly solutions provider that GE and Itron trustCE-, TÜ V- and RoHS-marked ISO 9001: 2008-certified, KEMA

Offering a Wide Range of Products

Shenzhen Chuangyin is a national high-tech enterprise. We are specialized in R&D, production and sales of kinds

1. LV & MV epoxy resin CTs and PTs (0.66kV, 7.2kV, 11kV, 17.5kV, 24kV, 33kV, 72.5kV etc ) for switchgear or power system.

2. Cold shrink cable, Separable accessories(EPDM).

3. Split core Current Transformer, Clamp- on Current Transformer and Rogowski coil Current Transformeretc.

4. CTs and Relays for energy meter.

Passed KEMA, TYPE TEST REPORT, CE, TUV, ISO and RoHS standards

We have a head office in Shenzhen High-tech Park and two subsidiary production bases named Jiangxi Chuangyin (20, 000 square meters) and Zhuhai Chuangyin (10, 000 square meters). We offer a wide product range such as all kinds of current transformers from mini CT to medium voltage CT, and from solid core CT to split core CT. We are a key supplier of energy meter, switchgear and utility companies for more than 10 years. We are the only company who make current transformer and relay together, and provide good solution for smart meters. Our experienced engineers have good knowledge in energy meters and switchgears. Furthermore, we have certificates such as CE, RoHS and ISO from TUV.

Contact us today to know more.

Thank you for your attention and support. Chuang Yin will stay with you to create a better future.
