24kv Outdoor Phase-Phase/Double-Pole Voltage Transformer

Name: 24kv Outdoor Phase-Phase/Double-Pole Voltage Transformer
Brand: all-electronics-online.com
SKU: 757688985
Availability: InStock
Rating: 4.3 (116 reviews)

Price:	US $ 470-480/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	JDZW-24
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
24kv:	Double Pole
Outdoor:	PT
Phase To Phase:	Epoxy Resin
Voltage Transformers:	Voltage Transformer
Vt:	50-60Hz
Phase-Phase PT:	Double-Pole PT
LV:	Mv
Application:	Switchgear
Type:	Voltage Transformer
Phase:	Single

Product Description

Description:

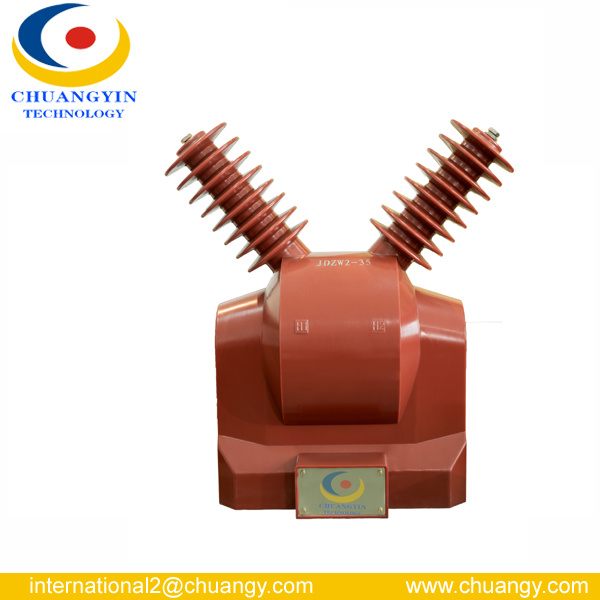

JDZW-24 voltage transformers (PT) epoxy resin casting and full-enclosed construction is used for measuring current, electric energy and protective relaying in the single-phase or three phase power system with the frequency 50Hz or 60Hz and high voltage for equipment 17.5kV or 24kV, IEC61869-1&3

Technical Data

1. Installation site:       Outdoor
2. Rated frequency:     50-60Hz
3. Burden power factory: COS=0.8
5. Technical standard:    IEC 60044-1:2003 , IEC 61869-1&3

Specification:

Type	Rated Primary Voltage(kV)	Rated Secondary Voltage(kV)	Accuracy classes combination	Rated output (VA)	Thermal limiting current (VA)	Rated insulation level(kV)
JDZW-17.5 JDZW-24	13.8 15 22	0.1	0.2	30	800	17.5/38/95 24/50/125
			0.5	80
			1	150
		0.11/0.11	0.2/0.2	15/15	400/400
			0.2/0.5	15/30
JDZXW-17.5 JDZXW-24	13.8/√3 15/√3 22/√3	0.11/√3/0.11/3	0.2/69(3P)	20/100	600	17.5/38/95 24/50/125
			0.5/6P(3P)	50/100
			1/6P(3P)	100/100

Remarks: Upon request we are glad to offer transformers according to other standards or with non-standard technical specs.
