LZZW-17.5(24)TH Outdoor Current Transformer

Description

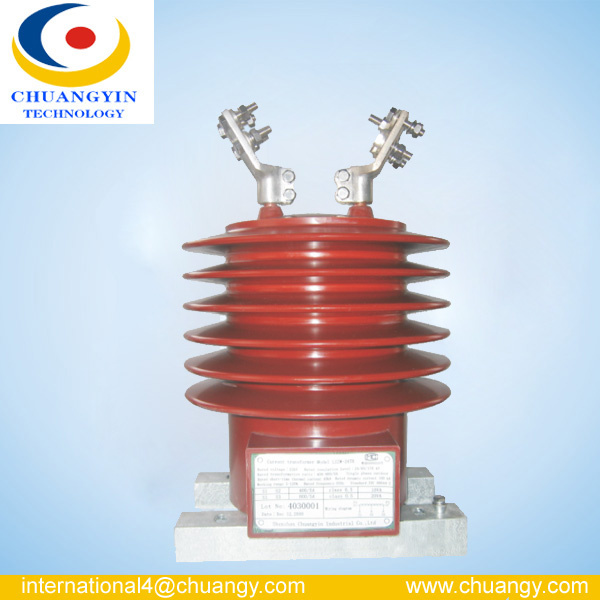

LZZW-17.5(24)TH outdoor support type current transformer with epoxy cast resin insulation. The product can have four secondary windings and each winding can have tap. The product has large external insulation creepage distance, withstands dirtiness and ultraviolet radiation. Be suitable for measuring current, electric energy and protective relaying in the electrical system of highest voltage for equipment 17.5(24)kV.

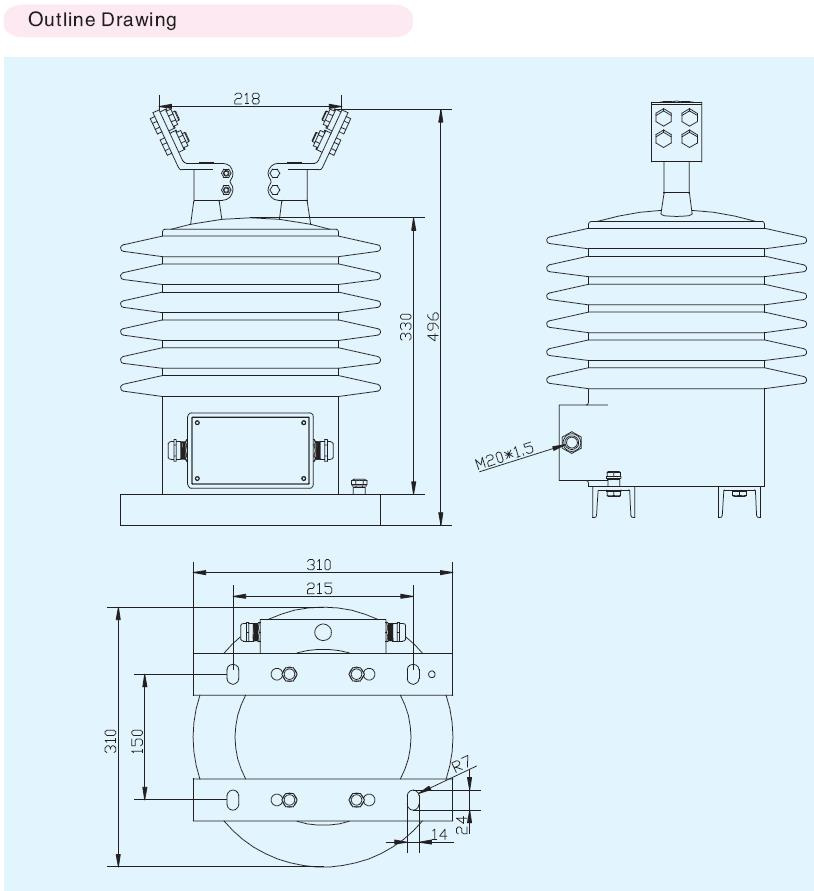

Outline drawing

Main technical parameter
1. Rated voltage: 13.8 kV or 15 kV or 20kV or 22kV etc
2. Rated secondary current: 5A or 1A3. Rated insulation level:17.5/38/95 kV or 24/50/125kV
3. Standards: IEC60044-1.2003 Part 1: Instrument transformers-Part1: Current transformers
4. Other technical parameter pls see as follow:

Single ratio

Rated transformation ratio(kV)	Accuracy classes combination	Rated output (VA)			Rated short-time thermal current (kA/S)	Rated dynamic current ( kA)
		Measuring		Protective
		0.2(S)	0.5	10P
30-200/5	0.2(S)/ 0.2(S) 0.2(S)/0.5 0.2(S)/10P 0.5/10P	10 15	15 20	20 25	150I1n	375I1n
300/5					30	75
400/5					40	100
500/5					50	125
600/5					63	125
800/5					80	160

Double ratio

Rated transformation ratio(kV)	Accuracy classes combination	Rated output (VA)			Rated short-time thermal current (kA/S)	Rated dynamic current ( kA)
		Measuring		Protective
		0.2(S)	0.5	10P
20-40/5	0.2(S)/ 0.2(S) 0.2(S)/0.5 0.2(S)/5P 0.5/10P	10 15	15	15 20	4	10
50-100/5					8	20
100-200/5					15	37.5
150-300/5					20	50
200-400/5					30	75
400-800/5					63	130

Remarks: Upon request we are glad to offer transformers according to other standards or with non-standard technical specs.
