24kv Suspension Insulator Fxbw4-10/70

Name: 24kv Suspension Insulator Fxbw4-10/70
Brand: all-electronics-online.com
SKU: 681229042
Availability: InStock
Rating: 4.4 (102 reviews)

Price:	US $ 4/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	500/Piece
Pay Type:	L/C,T/T,D/P

Contact Supplier

Showroom Product Company Profile

Prod Model:	FXBW4-10/70
Markets:	North America,South America,Southeast Asia,Africa,Mid East
Standards: IEC:	Composite Insulator
Structure:	Suspension Insulator
Material:	Composite Polymer
Type:	B Type Insulator
Application:	Low-voltage
Brand:	Cie or OEM

Product Description

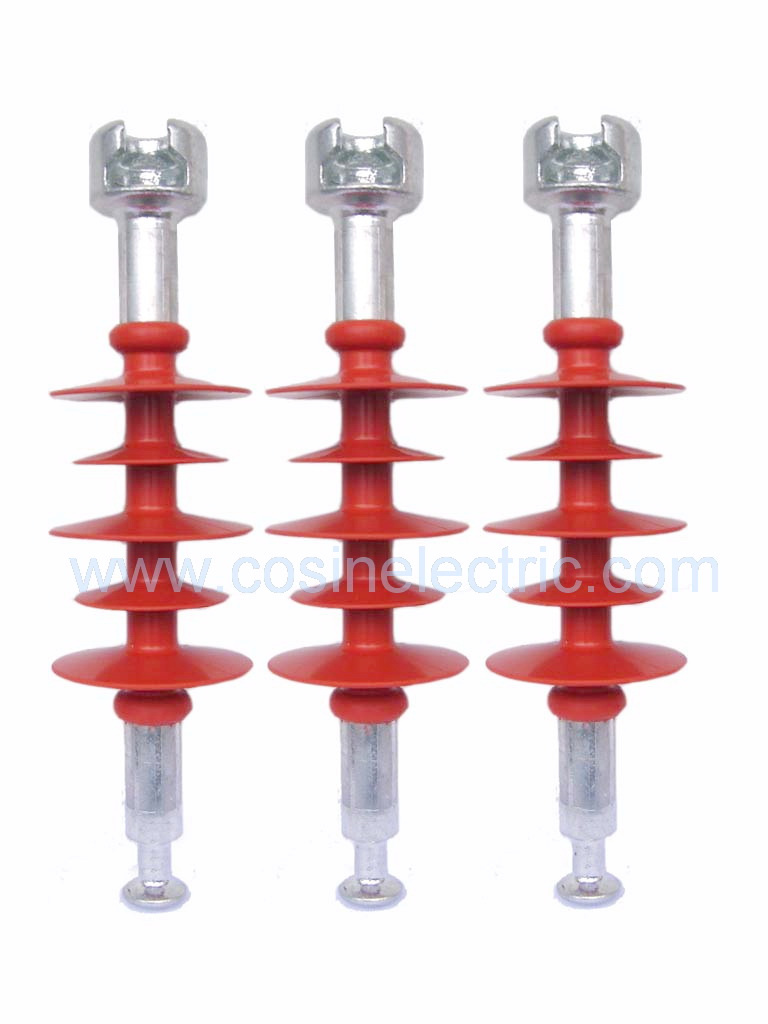

Name: Suspension Insulator
The rated voltage of suspension insulator: 24KV

Condition of Use of suspension insulator:
1. Ambient air temperatures within the range of -40 degree Celsius to +40 degree Celsius;
2. Altitude above sea level not exceeding 1, 000m; (If the altitude is higher than 1, 000, it needs adjust. )
3. Frequency of A. C. Power supply not exceeding 100Hz;
4. The mechanical load no more than the rated value.

Characteristics of suspension insulator:
-Small volume and light weight, easy to transport and install
-The superior in performance and high intensity mechanical enhance reliability of power line
-Extraordinary hydrophobic and resistance to contamination
-Long-duration resistance aging and leakage tracking.

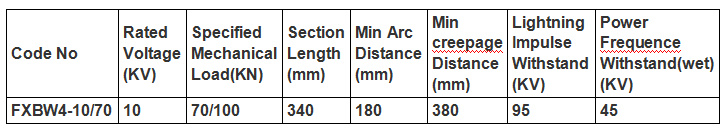

Code No	Catalogue No	Rated Voltage (KV)	Specified Mechanical Load(KN)	Section Length (mm)	Min Arc Distance (mm)	Min creepage Distance (mm)	Lightning Impulse Withstand (KV)	Power Frequence Withstand(wet) (KV)
FXBW4-10/70	QCE-10/70TC	10	70/100	340	180	380	95	45

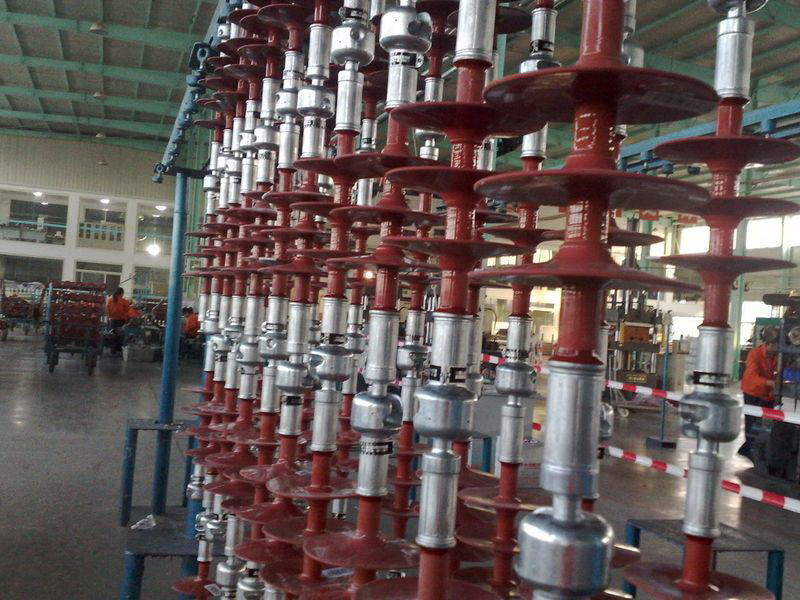

Experience: 16 years producing experience from 1999-2015 for insulator and line hardware

Product: Composite insulator, glass insulator and ceramic insulator

SML: From 40KN to 550KN From AC insulator to DC insulator.

Package: Exported free-fumigation

Quality control: Can do all the test according to IEC

Quality control System: Exactly according to ISO9001: 2000

Exporting Market: USA, Argentina, Mexico, Italy, South Africa, Turkey, Vietnam, France, Chile, etc.

Engineer term: Have 12 engineers to reply all your questions and offer professional service.

Sale term: All the sale man have been trained every month. And offer best service.
