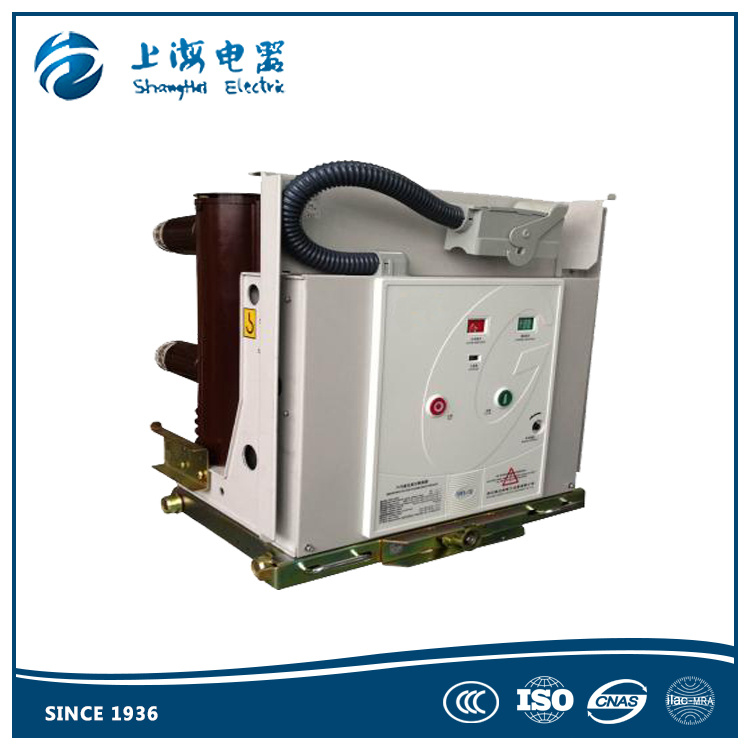

24kv Vacuum Circuit Breaker

24kv Vacuum Circuit Breaker
Price: US $ 1000-20000/Piece
Min Order: 1000/Piece
Pay Type: L/C,T/T,D/P
Contact Supplier
Showroom Product Company Profile
Prod Model: vd4
Breaking Capacity: High Voltage Circuit Breakers
Operation: Energy-storage Type
Speed: Normal Type Circuit Breaker
Arc-extinguishing Medium: Vacuum
Installation: Insert
Poles Number: 3
Certification: CCC
Structure: Embedded Pole Interrupter

Product Description

The vacuum circuit-breakers of type VD4 are intended for indoor installation in air-insulated switchgear systems. They have a switching capacity capable of handling the loads occurring at Start-up and shutdown of equipment and plant units both in normal and in fault state.

Vacuum circuit-breakers have particular advantages for use in networks where there is a high switching frequency in the working current range and/or where a certain number of short-circuit Breaking operations are expected. Type VD4 vacuum circuit-breakers are suitable for autoreclosing, and have exceptionally high operating reliability and long life.

The vacuum circuit-breakers of type VD4, designed in column form, can be supplied both as individual units for switchgear Type ZS1, AMS, Unigear, KYN28, etc.

Applying ambient conditions
1.Ambient temperature:-10ºC~+40ºC.
2.The height above sea level:≤1000m(besides the special requirements).
3.Relative humidity:the average humidity of a day should be no more than 95%;the average humidity of a month should be no more than 90%.
4.Saturated vapour pressure:the average pressure of a day should be no more than 2.2kPa;the average pressure of a month should be no more than 1.8kPa.
5.Earthquake intensity:not exceed 8 degrees.
6.It should be installed in the places without fire,explosion,serious filth,chemical erosion and violent vibration.
Shanghai Electric Group Co., Ltd(Shanghai Electric) since 1936.

Members of goverment mechanical ministry

Key enterprises of Shanghai

We are one of the earliest manufacturer of electrical equipment in China

We used cooperate with German Stahl, Siemens and Mannesmann, American Westinghouse, Timage, turbine air systems, Wyman-Gordon forgings, France Schneider, Italian Dalmine, ABB Switzerland, Spain Tubacex, Japan Mitsubishi etc famous international company

Our company was ISO9001/ISO14001/OHSAS18001 approval

Group has sucess project for Qinshan nuclear power plant, the YANGZI RIVER project, Pudong International Airport, Baosteel Group, Shengli Oilfield, the Oriental TV Tower, Nepal conference building, Iran subway, Pakistan Chashma nuclear power plant, sugar mills in Malaysia, Royal Palace of Thailand, and other domestic and foreign key projects supporting.

After 70 years of development, group have completely R&D, production, sales, contracting, engineering branch

Covering power transmission and distribution equipment manufacturing, environmental protection and energy saving products manufacturing, power generation equipment engineering contracting, import and export trade, bio medical industry of 5 big pillar, the camp pin network throughout the world more than 30 countries and regions, the group company (including member enterprise with total assets of 11.2 billion yuan, the number of employees more than 13000 people, the total output value in 2015 reached 26.5 billion yuan.

We will be a new concept, the success of the performance, solid strength, good reputation for you to build a boutique project!
