24kv Vcb with Modular Mechanism and Embedded Pole

Name: 24kv Vcb with Modular Mechanism and Embedded Pole
Brand: all-electronics-online.com
SKU: 835619965
Availability: InStock
Rating: 4.3 (139 reviews)

Price:	US $ 2000-8000/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	VSD-24P
Breaking Capacity:	High Voltage Circuit Breakers
Operation:	Energy-storage Type
Arc-extinguishing Medium:	Vacuum
Certification:	ISO9001-2000

Product Description

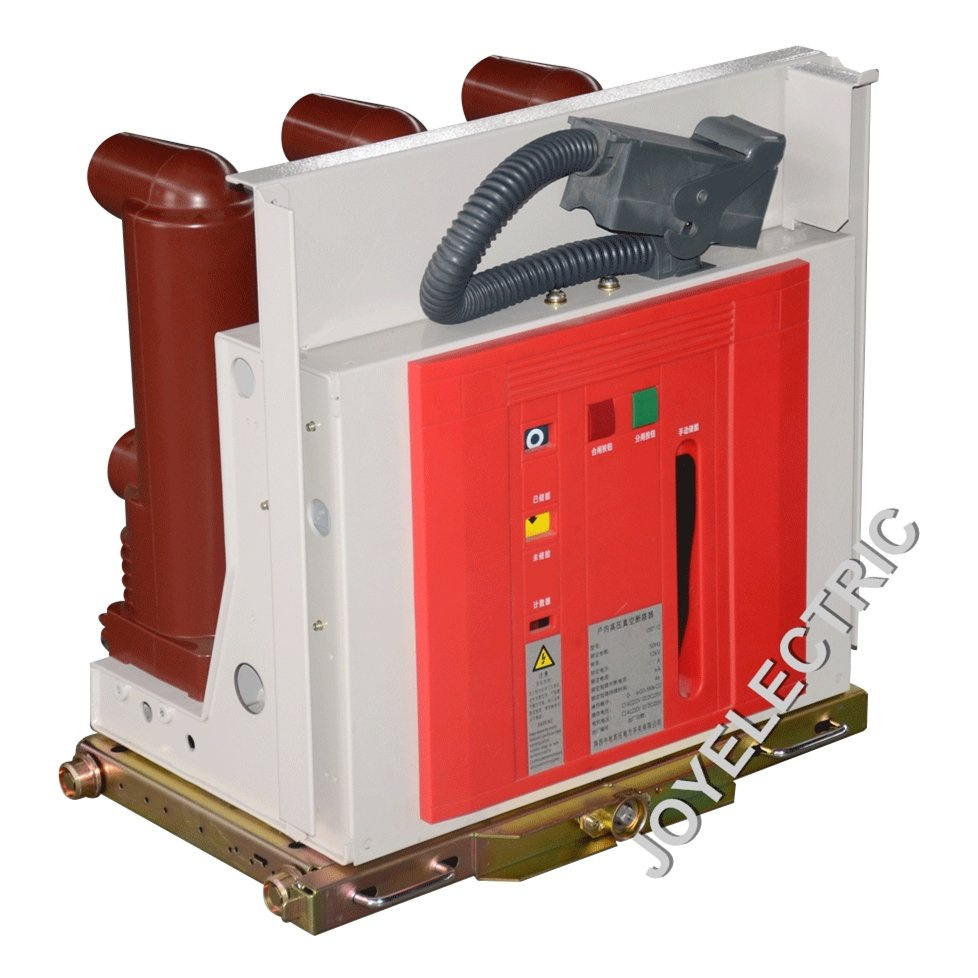

VSD-24P series
Rated voltage: 24kV
Rated current: 630A~3150A
Rated short-circuit breaking current: 20~50KA
Mechanical life: 20000 times/10000 times (≥40kA)
Breaking times of full capacity: 30 times (≤31.5kA)/20 times (40kA)/12 times (50kA)
The height above sea level: ≤2000m
Use embedded pole and traditional but reliable VS1 type operating mechanism
Main circuit use compound insulation
The performance meet C2/E2/M2 class
Can be matched with middle mounted switchgear and other switchgear of fixed type
Can be matched with switchgear of 1000mm width
Pole distance: 275mm
Meet requirements of "Five Prevention"

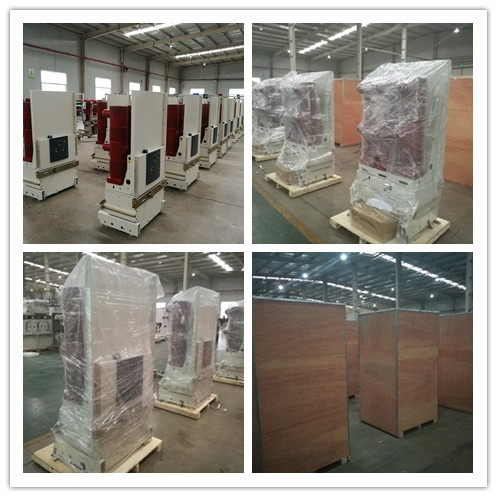

Our packing

Shaanxi Joyelectric International Co., Ltd. is a specialized company which is dealing with international business mainly covering electric and energy system, supplying products, design & service as well as production/test equipment in the field of power transmission and distribution.

With more than 20 years experiences in this fields, our main products include 12kV-24kV-36kV/40.5kV vacuum circuit breaker, switchgear & SF6 RMU as well as relative main components and accessories. With business development and meet requirement from customers, we also agent and distribute relative production/test equipment.

We had established close long-term cooperation with 10 more overseas customers from Europe, South American, Middle East and Asia due to our professional quality, excellent service and competitive prices.

We are not only your supplier, but also your purchasing consult as well as solution provider.
