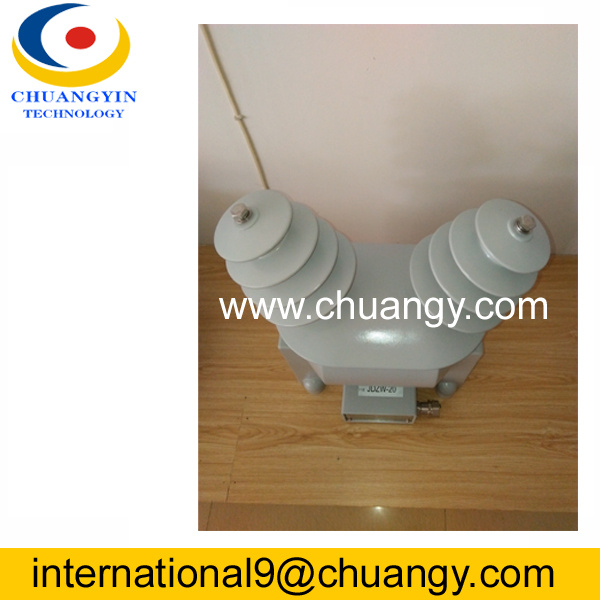

24kV Outdoor Doublepole Potential Transformer or Voltage Transformer manufacturing

JDZXW-17.5(24)voltage transformer, outdoor epoxy resin casting and full-enclosed construction, is widely used for measuring current, electric energy and protective relaying in the single-phase or three phase power system with the frequency 50Hz or 60Hz and highest voltage for equipment 17.5kV or 24kV

Main technical parameter

Type	Rated primary Voltage (kV)	Rated secondary voltage (kV)	Accuracy class or accuracy classes combination	Rated output (VA)	Thermal limiting current (VA)	Rated insulation level(kV)
JDZW-17.5 JDZW-24	8.4 13.8 15 20	0.1 0.11 0.12	0.2	30	800	17.5/38/95 24/50/125
			0.5	80
			1	150
		0.1/0.1 0.11/0.11	0.2/0.2	15/15	400
		0.1/0.1 0.11/0.11	0.2/0.5	15/30	400
JDZW-24	22	0.23	0.5	50	500
JDZXW-17.5 JDZXW-24	13.8/ 15/ 20/	0.1//0.1/3 0.11/0.11/3	0.2/6P(3P)	20/100	600
			0.5/6P(3P)	50/100
			1/6P(3P)	100/100
JDZXW-15	12.5/	208/	0.2	30	800	17.5/38/95

Remarks:Upon request we are glad to offer potential transformers according to other standards or with non-standard technical specs.

Outline drawing
Note: Upon request we are glad to offer transformers according to other technical specs.
