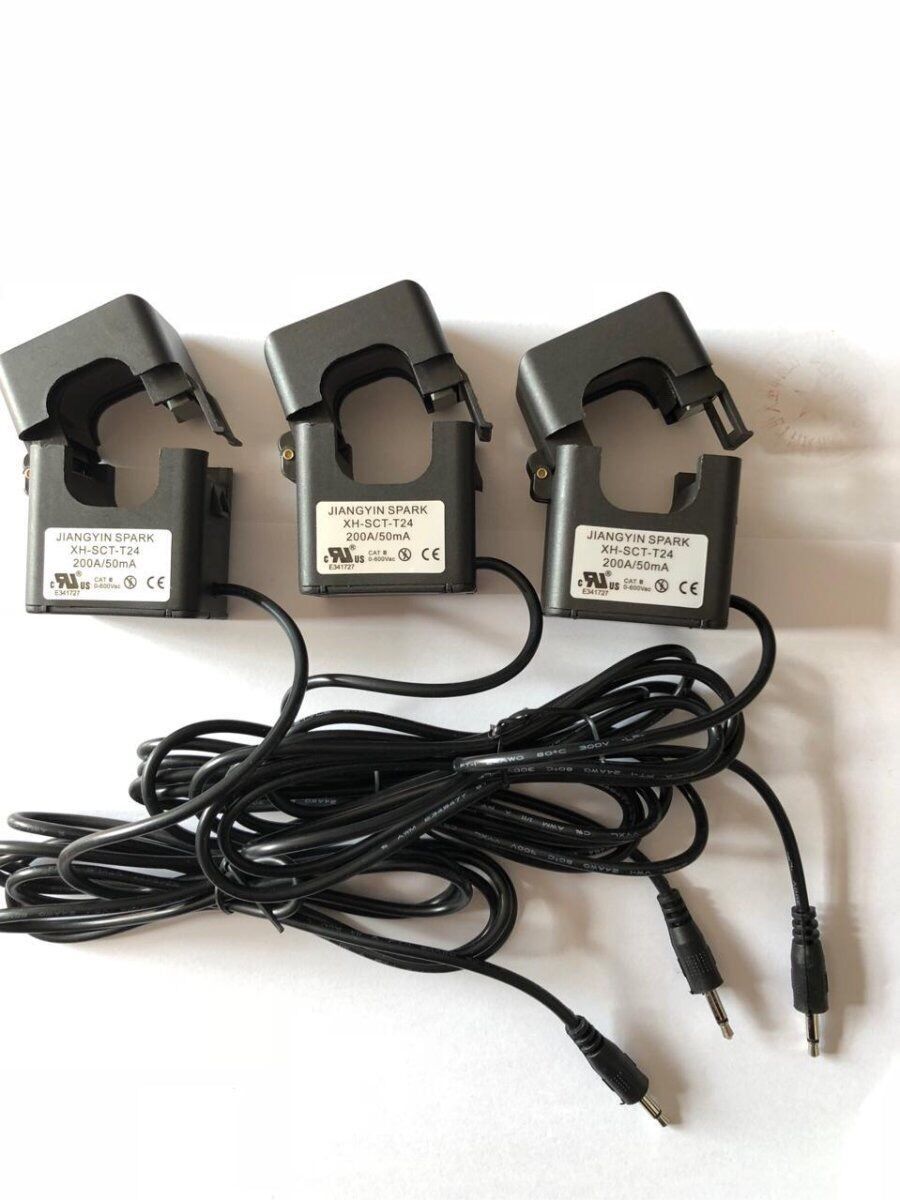

24mm Xh-Sct-T24-200A 50mA Split Core CT

Name: 24mm Xh-Sct-T24-200A 50mA Split Core CT
Brand: all-electronics-online.com
SKU: 840289225
Availability: InStock
Rating: 4.6 (148 reviews)

Price:	US $ 1-10/Piece
Min Order:	10/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	XH-SCT-T24-200
Model:	Clamp on Current Transformer Xh-Sct-T16
Input/Output:	100A/33.3mA
Certificates:	ETL,Ce,RoHS
Application:	Lighting
Phase:	Single
Type:	Split Core Current Transformer

Product Description

Split-Core AC Current Sensor XH- SCT-T24

φ24mm Opening With 100 To 300 Amp Rating

Description:

Jiangyin Spark XH-SCT-T24 Series split-core current senses AC current from 100 to 300 Amps passing through the center conductor. Split core CTs are designed for fast and easy installation.The split core design permits non-contact current measurements through magnetic field induction without requiring that the primary wire be taken offline and disconnected for CT installation.This method permits a safer,easy and portable current measurement.

Specifications:

Maximum continuous primary current 300 A AC
Current Ratio: 3000: 1
Output: 0.333 Volt at rated current
Accuracy: ± 1% from 5% to 120% of rated current
Insulation Voltage: 600VAC
Maximum Primary Voltage: 5000VAC(Insulated Conductor)
Phase angle: Less than 2 degrees at 50% of rated current
Frequency Range: 50 Hz to 400 Hz
Operating Temperature: -15Cto 60C.
Leads: 4Foot(105cm), UL 1015, Twisted Pair, 0.34 mm2(22AWG)
CE recognized, and RoHS compliant
Output and leads can be customized

Applications:

Sub-Metering Accurate Measurement
Data Loggers to analyze Building & Machinery Performance
Digital Fault Recorders
Smart Grid Application Features
Load Center
Three Phase Balance Control
In-Factory Display In-Home Display
Inverters for Solar & Wind Turbine Systems
Power Measurement Device For PLC

Model	Input(A)	Max currnet(A)	Turns(T)	Burden(Ω)	Output
XH-SCT-T24	10A-300A	300	3000	100	mA/0.333VAC/0-5 VAC

Package:

Our hot sales:

Welcome to contact us:

Welcome to JIANGYIN SPARK

Jiangyin Spark Electronic Technology Co., Ltd. is a professional manufacturer in China devoted in research, design, and production of electromagnetic products. We commonly provide split core current transformer sensor, mini current transformer, and mini voltage transformer, but also develop and design all kinds of energy saving modules and instruments. The well trained production and QC staff can assure all the current transformers perfect performance.

Since the company is founded in 1995, we have registered many Invention and practical Utility Model patents. We have passed the ISO9001: 2008 quality management certification system and UL and CE certification. In 2010, our company was awarded the second prize of Jiangsu Province Engineering Industry Improvement Award, and won the title of Wuxi City High and New Technology Enterprise. Located near the Port of Shanghai, the domestic logistics cost can be effectively saved.

For all of our products, samples are provided for free, but the purchaser has to endure the freight. The delivery cycle is generally 1 or 2 weeks depending on the product models. We can design products according to your requirements. OEM is also available.

In the principle of unity, efficiency, development, and mutual benefit, we are striving to provide you with better services.
