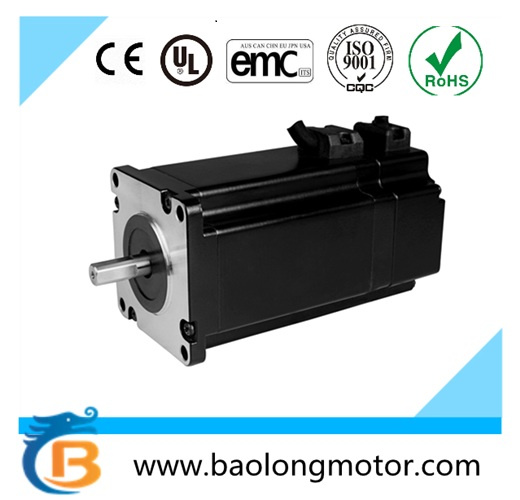

24SSM4430EC Series Closed-Loop Servo Hybrid Stepper Motor with Encoder

24SSM4430EC Series Closed-Loop Servo Hybrid Stepper Motor with Encoder
Price: US $ 50-60/Piece
Trade Terms: FOB,CFR,EXW
Min Order: 2/Piece
Pay Type: L/C,T/T,D/P,Paypal
Prod Model: 24SSM4430EC Series
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Motor Frame: NEMA 24
Rated Voltage: 1.8 VDC
Phase Current: 3.0 A
Holding Torque: 0.9 N.m
Motor Length: 45 mm
Number Of Stator: Two-Phase
Excitation Mode: HB-Hybrid
Type: Magnetic-Electric
Operate Mode: 2 Phase
Certification: CE
Brand: Baolong

Product Description

Baolong's closed-loop servo hybrid stepper motor, attached the encoder with the motor shaft can feedback the motor rotor movement then correct the movement error. It moves with

High precision;
High speed;
Multi-mode control;
High response large torque;
Smooth operation;
Low noise;
Energy-efficient with compact structure.





Phase:                                        2
Rated Voltage (VDC):                 1.8 V
Phase Current (A):                     3.0 A
Phase Resistance (ohm):            0.6  (ohm)
Phase Inductance (mH):             1.3 mH
Holding Torque (N.m):                0.9 N.m
Rotor Inertia (g.cm2):                 140 g.cm2
Motor Length (mm):                    45 mm
Motor Weight (Kg):                     0.85 Kg





Changzhou Baolong Motor Co., Ltd, established in 2004, is a high-tech enterprise, which is engaged in the development, production and selling kinds of micro motor and motion control systems.

Using high-quality materials, sophisticated manufacturing process and strict quality management our product line includes almost all kinds of high-quality motors, such as hybrid stepper motors, close-loop stepper motors, brushless DC motors, servo motors, etc. Our company is one of the leading manufacturers in domestic and international market, and our products are at the same level of international famous-brand ones. Our products are widely used in computer peripheral devices, communications, stage lighting, textiles, packaging, printing, medical equipment, sewing machines, and other industrial automation systems.

Our company is rich in technical experience, we use advanced production process and testing equipment, and obeys advanced quality management requirements in production, such as ISO9001: 2008, 6 Sigma. Besides, our company also has obtained the CE certificate, and all of our products are RoHS compliant.

With the spirit of "product innovation, high quality, excellent service", our company will continuously focus on micro motor industry, and provide more high-quality products and more professional service for our clients. We try our best to win the client' S trust by our high-quality products, excellent service and reasonable prices. We are becoming the leader of the micro motor industry.
