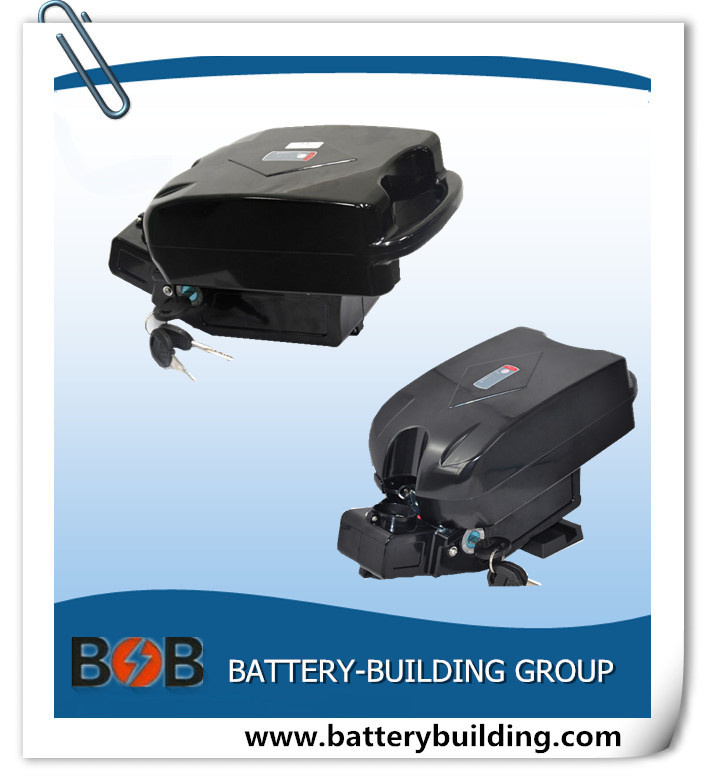

24V 10ah Frog Lithium Battery Pack for E-Bike

Prod Model:	BB-EB2410F
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Application:	E-Bike, E-Scooter
Structure:	Icr18650 2200mAh 7s5p
Battery Type:	Lithium Ion
Certificate:	CE, RoHS
Type:	Lithium-Ion Battery Pack
Connection Mode:	Series and Parallel
Standard Voltage:	24V
Usage:	E-Bike
Electrolyte:	Li-ion

Product Description

24V 10Ah frog lithium battery pack for e-bike

Specification

Model: 24V10Ah
Voltage: 24V
Capacity: 10Ah
Dimension: 74*134.5*168.9mm
Voltage:24V
Capacity:10Ah
Dimention:168.9×134.5×74mm
Continuous discharging current:15A
Maximum discharging current:40A
Impedance:≤15
Discharge cutoff voltage:18V
Charge voltage:29.4V
Standard charge current:2A
Charging and charger:CC/CV with professional charger
Weight:2.5kg
Working temperature:Charge: 0~45°C    Discharge:-20~55°C
Normal temperature capacity:10Ah

Application:
·Electric Vehicles, such as E-bike, E-scooters, E-cars, E-bus;
·Electric boats, such as trolling fishing boat;
·Robots for industries and military;
·Remote data transfer system;
·Satellite communication station;
·Un-manned submarine;
·Un-manned aircrafts;
·Power tools, such as drilling, cutting and polishing tools;
·Power station for low temperature application, such as -40;
·Power supplier for Training systems, such as Torpedo Trainer

Advantages:
·Fast charging
·Large overcharge tolerance and safe performance
·Self balance
·Simplifying battery management system (BMS) and battery charger
·Longer cycle life; It extends its cycle life up to 800 cycles
·High temperature performance
  We can customize the battery as per your request too. So if you cant find your power battery, please tell me your request, we will give the best service.
