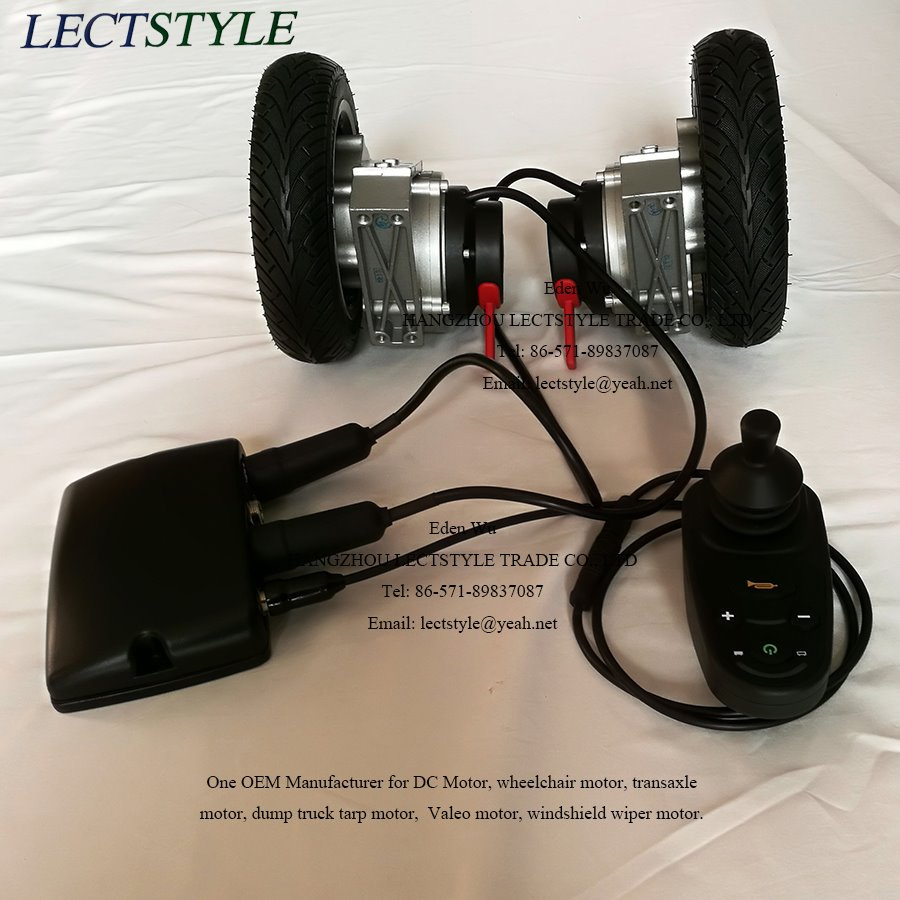

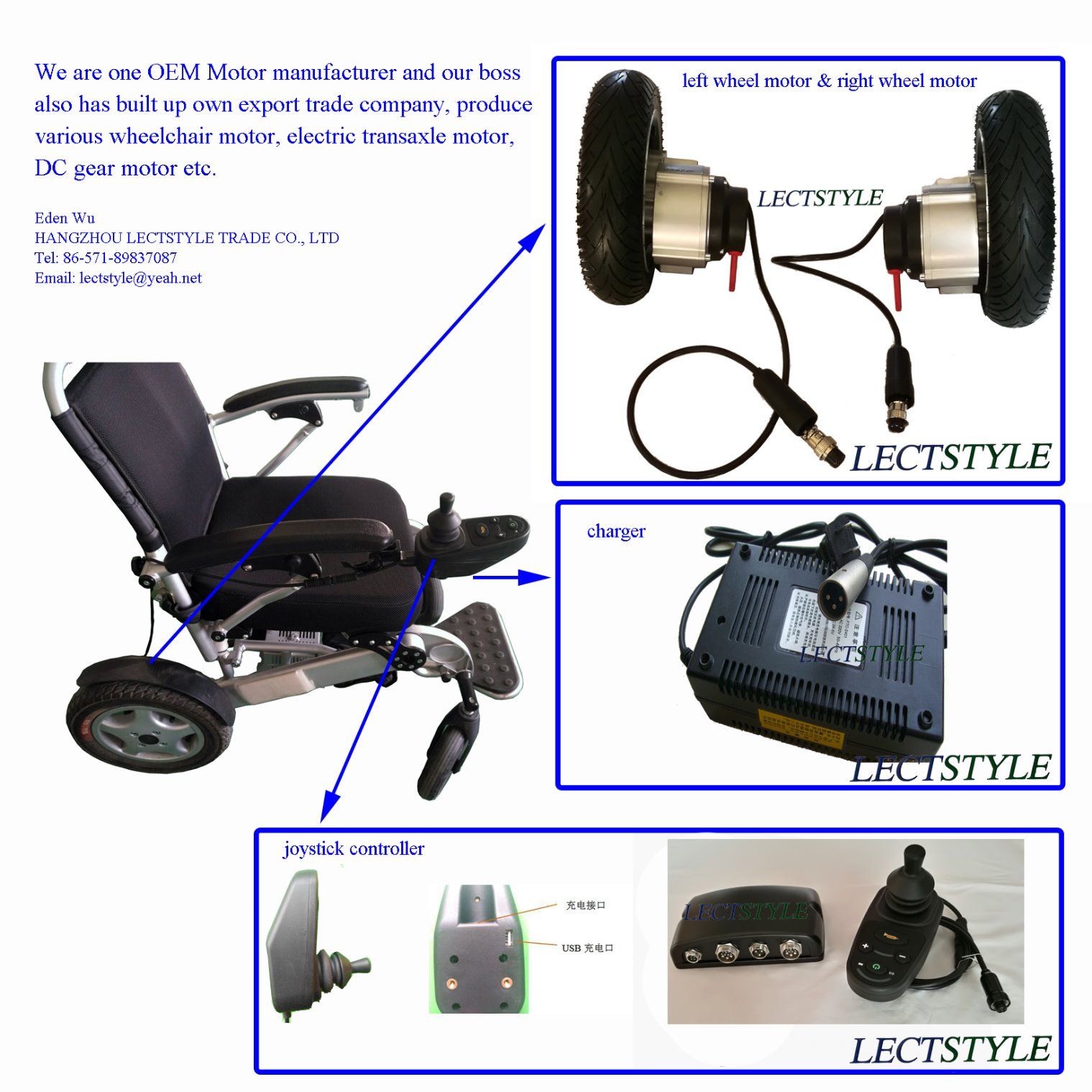

24V 120rpm Lightweight Power Brushless Wheelchair Hub Motor with Controller & Joystick Lever
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
5/Piece |
| Pay Type: |
T/T |
| Prod Model: |
8inch |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Mid East,Eastern Asia,Western Europe |
| Rated Voltage: |
24V |
| Rated Power: |
180W-400W |
| Motor Material: |
Alloy Steel |
| Gearbox Material: |
Aluminum |
| No Lad Speed: |
3100rpm |
| Wheel Diameter: |
8inch |
| Output Speed: |
160-180rpm |
| Diameter Of Drive Shaft: |
30mm |
| No-Load Current: |
2.3A |
| Application: |
Industrial |
| Operating Speed: |
Adjust Speed |
| Excitation Mode: |
Compound |
| Structure And Working Principle: |
Brushless |
| Type: |
- |
| Brand: |
Lectstyle |
Product Description
We are one OEM Manufacturer for various brushless wheelchair motors, powerful golf trolley motor, DC electric wheelchair motor, automatic sliding door motor, trap machine motor and dump truck tarp motor etc.
Product Features:
Based on current market demand, we, independently developed the cost-effective DC brushless wheelchair controller system, and its main features are as follows:
1. Brushless motor, high efficiency, long working liftspan, free of maintenance
2. Single-stage gear power transmission, low loss and long driving range
3. Adaptive 8 inches, 10inches and 12inches inflate-free tyle
4. Rectangle plate installation, compatible with a variety of models
5. Speed and power of the motor at users option| Brushless wheelchair motor |
| Item | Value |
| Rated Power | 180W |
| Rated Voltage | 24V DC |
| Insulation Class | F Class |
| No-load Speed | 2900rmp |
| No-load Output Speed | 180 rmp |
| Starting Current | ≤1.8A max |
| No-load Current | ≤1.1A |
| Reducer Speed Ratio | 16.67:1 |
| Electromagnetic Brake | 3N.m, 24V DC |
| Wheel diameter | 8 inch |
Advantages of hub motors:
1. Omitting a lot of transmission parts, making more simple structure.
The car with hub motor will get better space, utilization and higher transmission efficiency.
2. Achieving varieties complex driving mode.
It can easily achieve the FWD (Front Wheel Drive), RWD(Rear Wheel Drive) or 4WD(Four Wheel Drive) form. Full-time four-wheel drive will be easy in vehicle with hub motor.
3. Using a variety of new energy vehicle technology easily.
Nowadays, more and more energy vehicle uses electric drive, so hub motor drive plays an important role. No matter all-electric battery, fuel cell battery bus or EREV(Extended-Range Electric Vehicle), hub motor is suitable, also for hybrid Electric Vehicle.

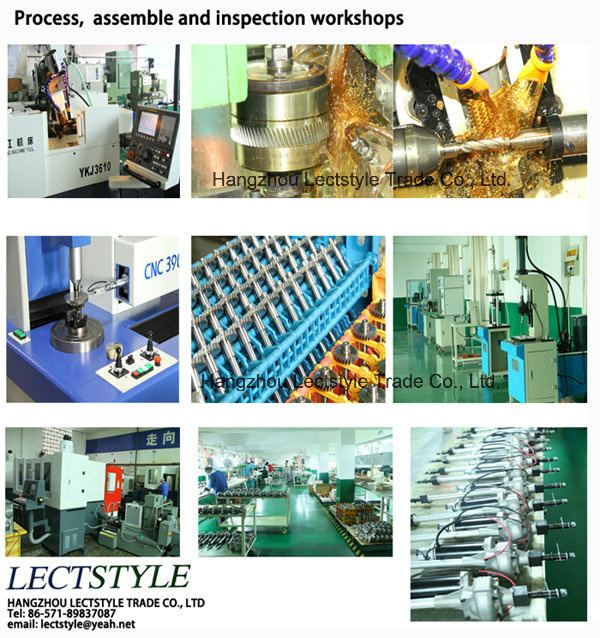

Our processing workshop:

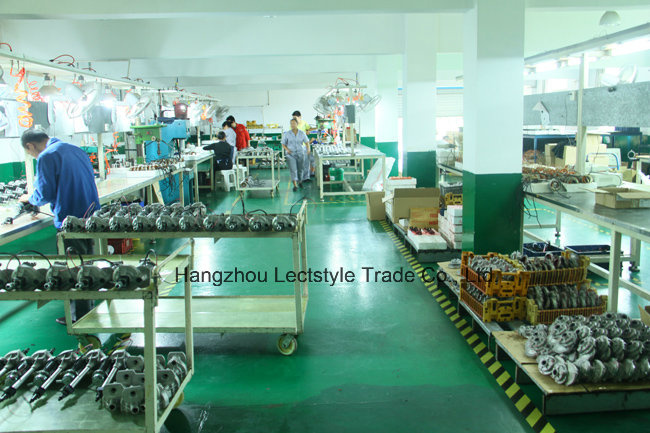

Our assembled workshop:

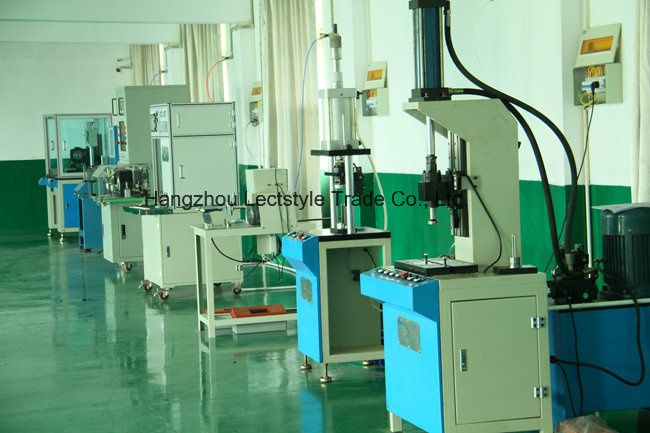

Our inspection workshop:
Special motors can be customized per your requirements.
Encoder and gear box can be fixed.
Our business range is supplied to these products as below:
1.Planetary reducer, PMDC Motor, brushless DC motor, and transmission parts etc, these are fabricated from our motor factory.
2. Roller chain, conveyor chain, flat top chain, silent chain, drag chain etc, these are supplied from our chain drive factory.
HANGZHOU LECTSTYLE TRADE CO., LTD is responsible for exporting the above products, and we also import some important products from oversea markets.
Our company has got the right of import and export from the Government department.
It is necessary to get your specific requirement when contacting us, for example of motor, voltage, power, speed, output torque, connecting type and size of shaft, outside structure drawing or relevant pictures etc. And then we will give the accurate offers.
Therefore, hope to get your feedback soon.
About us
Our HANGZHOU LECTSTYLE TRADE Co., Ltd is one reliable OEM supplier, we have own chain factory, motor factory and export trade company to support our job, some spare parts are from our long cooperated suppliers, these quality parts are repeatedly proven and tested in-factory, so donot worry about our capacity.
Our main supplied products as below:
1. DC Motors, windshield wiper motor, wheelchair motor, dump truck tarp motor, wind turbine generator and planetary reducer
2. Transmission parts (roller chain, agricultural roller chain, conveyor chain, silent chain, sprocket, spur gear, transmission gear, gear shaft etc).
Our company is qualified with integrally mechatronic abilities of design, manufacture and testing. In these years of production process, throught constant practice, experiment and research, we have collected a large amount of data and accumulated rich experience. Through these, our plant created a various of advanced production process documents, quality standard and inspection process documents, which guarantee the product's production process of each contact completely in according to one standard control.
Our LECTSTYLE always adhere to the "Ensuring quality, Persisting improvement, Pursuiting customer satisfaction" principle, to provide the best products for the domestic and foreign clients with the pre-sales and after-sales service.
In the pages, you will find some samples of the thousands of parts, products, and components that LECTSTYLE supervises the fabrication in our own and cooperated factory. It's really best to contact us directly, so the LECTSTYLE can address your project and structure all elements of a complete end to end solution that can get your job done right.
