Henan Dirk Electronic Co., Ltd. >> 24V/12V Remote Control Switch with 2 Transmitter with 1 Receiver Telecrane Remote Control F24-8d-2tx for Sany Crane, XCMG Crane, Tadano Crane, Demag Crane
24V/12V Remote Control Switch with 2 Transmitter with 1 Receiver Telecrane Remote Control F24-8d-2tx for Sany Crane, XCMG Crane, Tadano Crane, Demag Crane
| Price: |
US $ 70-225/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union |
| Prod Model: |
F24-8D |
| Model: |
Telecrane Radio Remote Control |
| Temperature: |
-35°c___+80°c |
| Control Distance: |
up to 100m |
| Enclosure Protection Class: |
IP65 |
| Unique Code: |
Over 4.3billon Unique ID Codes |
| Transmitter Power: |
DC3V |
| Certificate: |
Ce, FCC, ISO |
| Control Model: |
Wireless Control and Radio Control |
| Warranty: |
12 Months |
| Application: |
Industrial Machinery |
| Signal Transmission: |
Radio Waves |
| Type: |
Button |
| Certification: |
CE |
| Universal: |
Universal |
| Transmission Distance: |
50-100m |
| Material: |
Plastic |
| Battery Type: |
AA Battery |
| Voltage: |
DC/AC12V, AC380V, AC110V, AC220V, DC/AC36V |
Product Description
24V/12V Remote Control Switch with 2 Transmitter with 1 Receiver telecrane remote control F24-8D-2TX for Sany Crane, XCMG Crane, Tadano Crane, Demag Crane

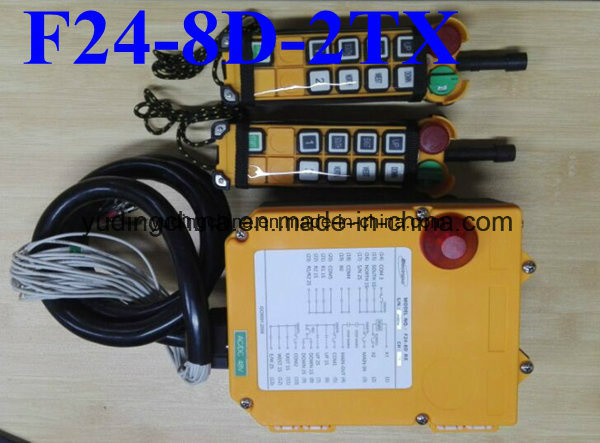

Customized Configuration (F24-8D-2TX):
1. Two transmitters
2. One receiver;
3. One 1m cable connect with receiver
4. One operation and maintain manual.
5. 1 piece dust-proof bag
PS: 1 standard configuration: 1 Transmitter with 1 receiver, if you need standard, let me know, or three transmitter with 1 receiver is also ok
Brief Introduction:

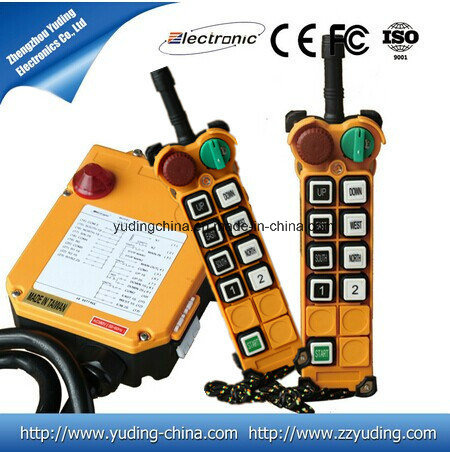

Transmitter: size:239x65x65mm weight:255g
Receiver: size:200x165xx227mm weight:1400gOur Advantage:
1. More than 10 years researching and exporting experience in Radio Remote Control industry.
2.More than 20 people R&D working team, have the ability to research and develop new product independently.
3. Have 15 production lines. we also have many production machines such Printing circuit board machine, SMT machine, automatic wave soldering machine, automatic soldering robot, etc. also have many testing machine.
4. Well and high quality control, all working process according to ISO9001:2008.
5. CE, FCC & ISO certificates.
6. OEM acceptableFeature:
1. 8 double speed + 1 Start + 1 Emergency Stop + 1 on/off switch
2. Control contact is up to 15
3. With Battery voltage warning device, the power supply is cut off during low power
4. Program the button function by computer software
5. Safty key prevents from unauthorized user.
6. Up/down can be programmed to interlock or non-interlock,toggle and normal etc.
7. Start button can be program to be start, Normal, toggle function etc.
Specification: | TX Model | F24-8D-2TX-V-(E) |
| TX Size | 239x65x65(cm) |
| TX Weight | about291g(without Batteries) |
| Housing Materail | glass fiber-reinforced nylon-6 |
| Protection Degree | IP65 |
| Temperature Rating | -35°C ~ +85°C(Regardless of the battery temperature tolerance) |
| TX power Supply | Two 1.5 volts Batteries(AA Size) |
| Number of buttons | 8 double speed buttons,1 START button,1 E-Stop button |
| Button Marking | arrow tip or English |
| I.D.Code | 4.3 billion |
| Voltage Warning | TX Red LED will flash slowly when the volts under 2.2V,and unable to start TX under 1.8V. |
| Operating Frequency | 310.0325-331.165MHz or 425MHZ-441MHZ |
| Channel Spacing | 0.2675MHz |
| Channel | 80CH |
| RF Power | <10DBm |
| Fault Detection |
TX Red LED is flashing quickly:
1.Not in the correct way to start;
2.One of the pushbutton is jammed.
TX LED will flash slowly:
1.Please change two new batteries |
Application:

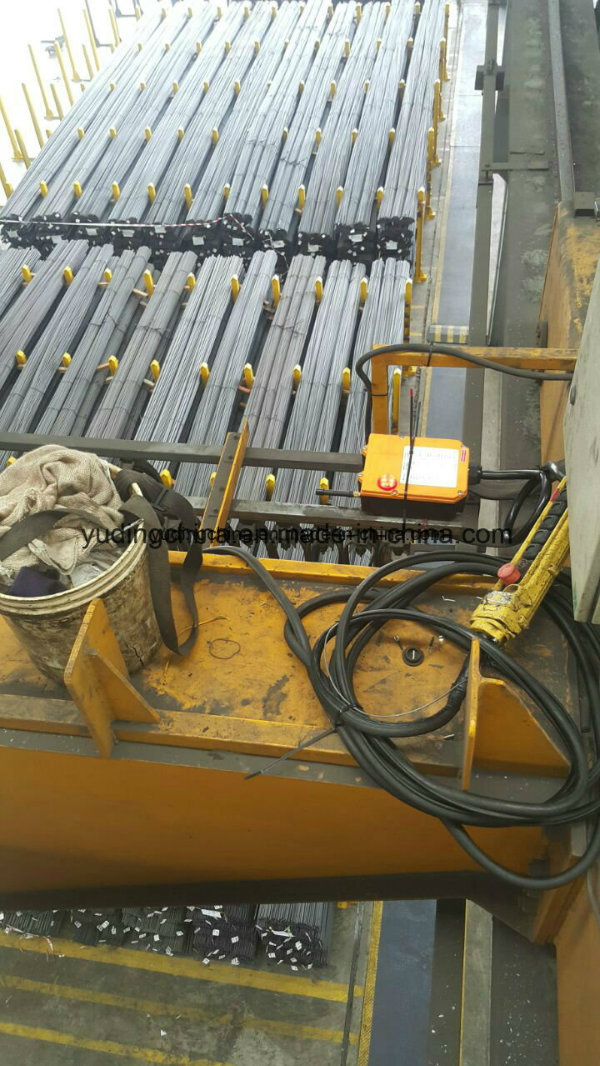

Widely applied for lifting equipment, construction machinery, cargo loading/unloading machines, water supply system, data transmission, the iron-smelting and steel making, the automobile manufacturing, paper making and chemical industry, steel structure processing, galvanization, shipbuilding, railroad, bridge, tunnel construction and other equipment and sites which can be worked by radio controls.
Safety features
1.Unique 4.3 billion ID code
2.Hamming code
3.Enhanced watch-dog circuit
4.With FCC and CE certificate

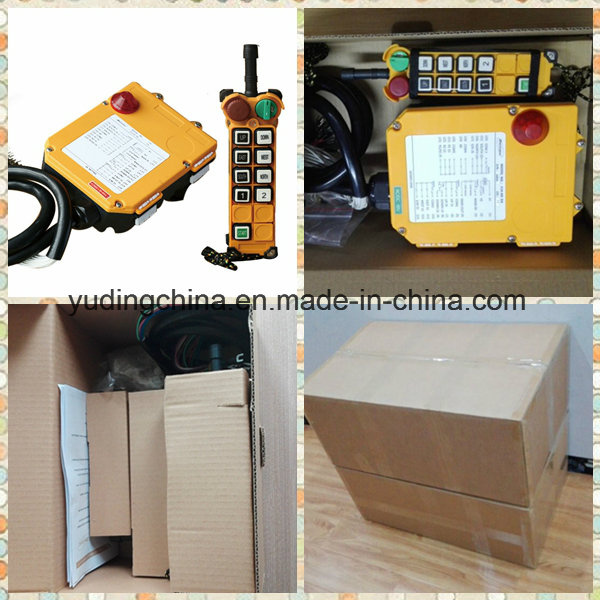

Package
1 set per box, 6 pcs per carton.
If you need specification or connection diagram, please contact lily, lily's
Henan Dirk Electronic Co. Ltd (former Henan Yuding Electronics Crop., Ltd) is an industrial radio remote controls manufacturer in China. Established in August, 2010, With more than 10 years experience on this industrial remote control system business area. Headquartered in Zhengzhou, Henan province. Dirk has so many experts in the industrial radio remote controller area to assure quality and productivity, Dirk are becoming one of the leading companies in this industry in China.
Our main products is: F21 Series radio remote controls, F23 series radio remote controls, F24-60 Dual Joystick radio remote control and explosion-proof remote controls. All these remote controls are easy to operate to keep workers safety and Efficient. All our products are CE & FCC & ISO Certificate.
Quality is company's life. From the raw material testing, manufacturing, aging test and assembly, Each process are operate according to ISO9001: 2008 & international quality control system to guarantee the products quality. Competitive price with excellent quality and good after-sales service make our Internal customers are covered Over 400 cities of 33 countries. We also have built long-term business relationship with the foreign customers.
We here sincerely hope to establish partnership with you and your esteem company.
