24V 150W Waterproof AC-DC LED Driver with SAA

Name: 24V 150W Waterproof AC-DC LED Driver with SAA
Brand: all-electronics-online.com
SKU: 740163945
Availability: InStock
Rating: 4.4 (57 reviews)

Price:	US $ 17.24-19.15/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	LPS-24E150B
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Usage:	Construction
Output Type:	Single
Driving Method:	LED Regulator Voltage
Circuit Structure:	PWM Controlled
Certification:	SAA
Power Supply Voltage:	AC170-250V
Brand:	Neonpro

Product Description

24V 150W Waterproof AC-DC LED driver with SAA

Brief Introduction
*External led power supply for LED module, strip, flex ribbon, bar light, spot light, down light, wall washer, panel light, etc...
*Seamless aluminum case, fully sealed & waterproof, IP67
*Constant voltage output
*100% burn-in test

Note
Trade Terms: EXW, FOB, CIF and CNF term available
Lead time:1-3 days for sample order;15 days after order confirmed for normal order
Payment terms: L/C, T/T, Western Union
MOQ: 1 pc

Shipping Method
* DHL FedEx TNT UPS EMS
* By Sea
* By Air

Technical Specification

Model no.	LPS-24E150B
Input voltage	170-250 VAC 50/60 Hz
Max. power	150W max
Output type	Constant voltage
Dimming	No
Built-in active PFC	No
Power factor	Low
Efficiency	86%
AC inrush current(max.)	Cold start, 40A@230VAC
Output voltage	24VDC ± 5%
Output current	6.25A max
Overload protection	105%-120% hiccup mode, auto-recovery
Over voltage protection	120% rated output voltage
Withstand voltage	I/P~O/P:1.5kVAC, 1 minute
Operating temperature	-25~40 degree
Installation	Outdoor waterproof
IP rating	IP 67
Cooling	Free air convection
Certificates/standards	CE/SAA
Connection input/output	Input:0.75mm²x3 (18cm) / Output:0.75mm²x2 (18cm)

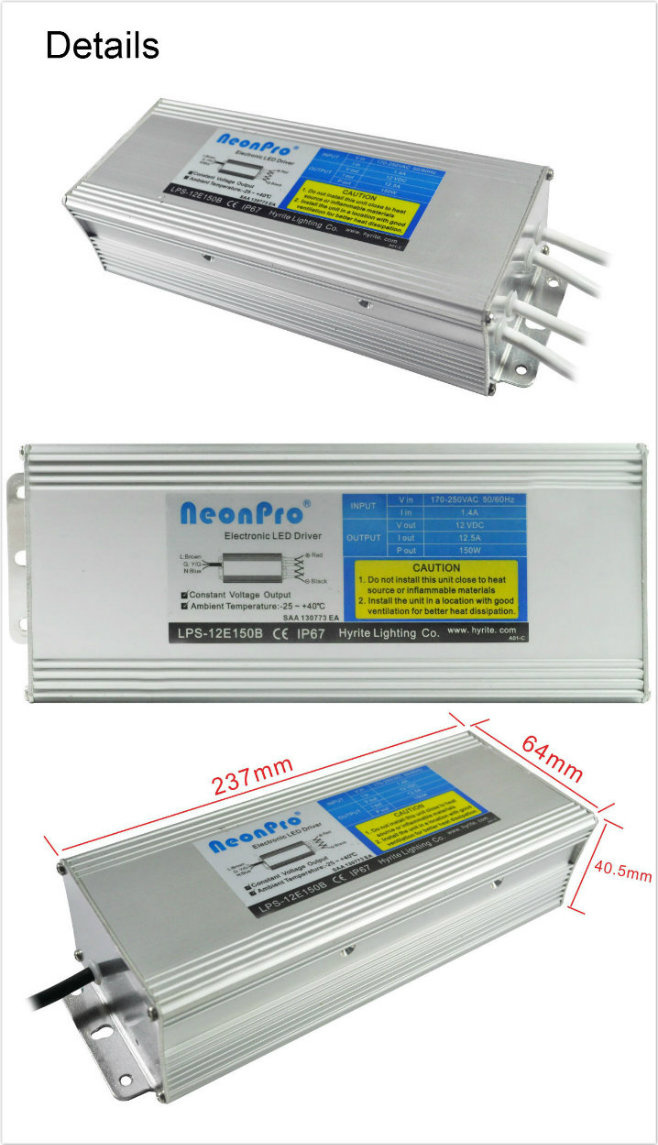

Dimensions(LWH)	2376440.5 mm
Weight(kg)	1.1
Packing information	10Pcs/ Carton, G.W 12.5KG
