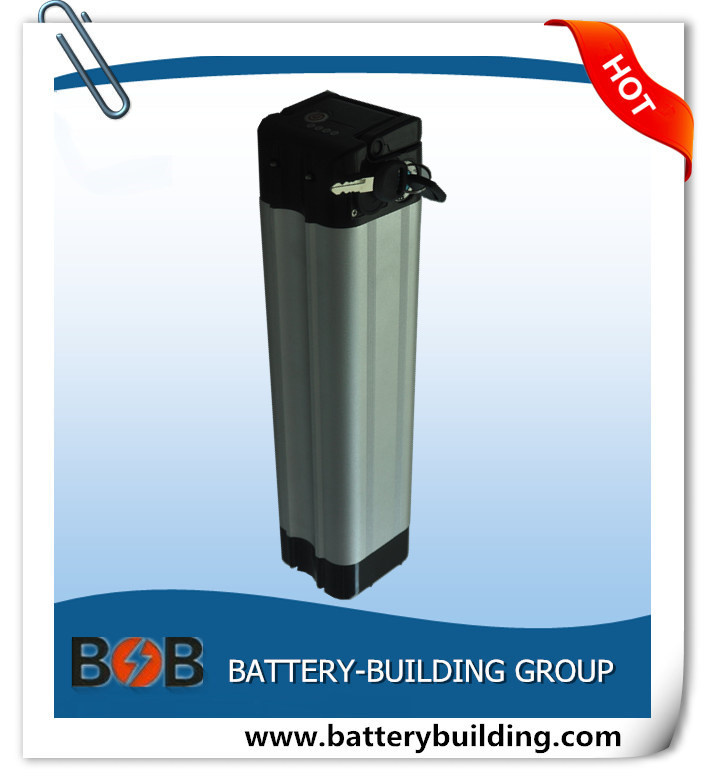

24V 15ah LiFePO4 Battery Pack Silver Fish Type

Prod Model:	BB-EBLFEP2415SF
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Structure:	Ifr26650 3000mAh 8s5p
Application:	E-Bike, E-Scooter
Dimension:	87*125*370mm
Working Current:	15A
Certificate:	CE, RoHS
Connection Mode:	Series and Parallel
Type:	LiFePO4
Standard Voltage:	24V
Usage:	E-Bike
Electrolyte:	LiFePO4

Product Description

24v 15ah lifepo4 battery pack silver fish type

Specification
1. Nominal voltage:24Volts.
2. Rated capacity:9Ah.(Min)
3. Dimension: 89x91x290mm
4.Combination: IFR26650 3000mAh 8S5P
5.Cycle life:The cycle life can reach 2000 times with 80% DOD at recommended charge and discharge under 25ºC temperature

Details

NO	Item	General Parameter				Remark
1	Model	BB-EBLFEP2415SF
2	(0.5C) Standard capacity(0.5C)	15.0 Ah
3	Rated voltage	24.0 V
4	Max. charge voltage	29.2 V				:3.65V Single Ave. charge Voltage
5	Over charge protection			3.90±0.025V		Over charge detection voltage
				3.8±0.025V		Over charge release voltage
6	Standard charge current	2-3A				0.2C-0.3C
7	Charging time	About 2-5 h				X C
8	Discharge cut-off voltage	16.0 V				:2.0V Single Ave. Discharge Voltage 2.0V
9	Over discharge Protection				2.0±0.05V	Over discharge detection voltage
					2.3±0.05V	Over discharge release voltage
10	Max. continuous discharge current	15A				1.5C
11	Peak discharge current	30A				3C
12	Short circuit protection	Detetion delay time			XXμs	Release condition	Cut-off load
12	Battery dimension	87*125*370mm
13	(Approx.) Total weight(Approx.)	About 4.9 kg
14	Operation temperature	Standard	0ºC~45ºC
		Discharge	-20ºC~65ºC
		Storage	-20ºC~65ºC

Application:
·Electric Vehicles, such as E-bike, E-scooters, E-cars, E-bus;
·Electric boats, such as trolling fishing boat;
·Robots for industries and military;
·Remote data transfer system;
·Satellite communication station;
·Un-manned submarine;
·Un-manned aircrafts;
·Power tools, such as drilling, cutting and polishing tools;
·Power station for low temperature application, such as -40;
·Power supplier for Training systems, such as Torpedo Trainer

Advantages:
·Fast charging
·Large overcharge tolerance and safe performance
·Self balance
·Simplifying battery management system (BMS) and battery charger
·Longer cycle life; It extends its cycle life up to 2000cycles
·High temperature performance

We supply batteries types such as bottle battery, rear rack battery, silver battery, frog battery, Qingtian battery, 24/36/48V normal series, we also accept customized battery packs, domestic cell or imported cells are all available. If you are interested, welcome to send your inquiry.

Key Application
Widely applied in  Electric Bicycle, Electric vehicle, Electric Tricycle, Electric scooter, Electric golf trolley, Electric car, Electric wheelchairs,two wheel vehicles and etc.

Payment Terms
1.We accept bank transfer(T/T) ,PayPal,Cash.
2.If you prefer other payment method,please contact us by email.

Shipping Terms
1.Samples order: sending by Express ( DHL/ UPS/ FEDEX/ TNT )
2.Bulk order: sending out by air/express/sea.

Warranty Instructions
1.We provide 2 years Warranty.
2.Warranty code: quality problems, defective goods can be fixed or replacement; Man-made damage, inflowing water, fault operation leading to short circuit or burning, damaged by carrier is out of our warranty.
3.Goods should be returned in original condition to qualify for a replacement or repair.

Advantages
1.OEM&ODM manufacture, design any of special shape, dimension and other requirements battery packs.
2.Good quality, competitive price, fast delivery, excellent service.
3. Wonderful package, stable shipment, 100% testing and inspection before shipment to insure the quality.
4.CE, RoHS, UN38.3, UL, MSDS certificates.
5. Quick action&response,every inquires will be relied within 24 hours
