| Prod Model: |
H3-POE241 |
| Input: |
110-250V,50-60Hz |
| Output Voltage: |
24V |
| Output Current: |
1A |
| Output Power: |
24W |
| DC Port: |
RJ45 |
| Network Interface: |
+4.5pins - 7.8pins |
| Material: |
ABS,Copper |
| Protection: |
Short Circuit Protector. |
| Safety: |
Safety Push Button |
| Output Type: |
DC |
| Connection: |
Plug In |
| Usage: |
Network |
| Certification: |
Ce, FCC |
| Brand: |
OEM |
Product Description

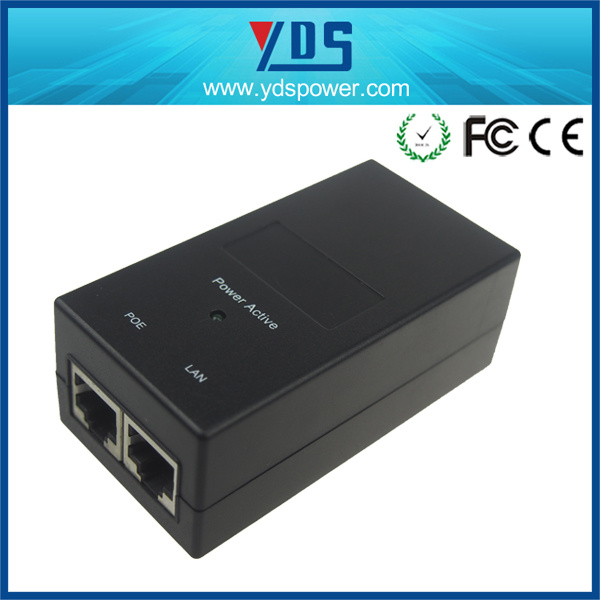

24v 1a 24W POE Injector Power Adapter
Output
1) Data speed: 10/100M
2) Rated voltage: 24volts direct current
3) Ripple: 480mVp-p
4) Rated power: 24W
5) Voltage tolerance: ±3.0%
6) Setup, rising time: 500ms, 50ms at full load
7) Hold up time: >5ms at full load
8) Power out pin: midspan 4,5(+) 7,8(-)
9) Rated current: 1.5amperes
10) Current range: 0~1.5A
Input
1) Rated Voltage range: 100~240VAC
2) Frequency range: 50/60 hertz
3) Leakage current: < 0.25 mA at 250 V
4) Inrush current: < 40 A at 230 V
5) Efficiency: >82% (minimum)
6) AC current: 1.1 amperes (maximum)
Environment:
1) Working temp: 0 ~+40°C
2) Working humidity: 20 ~90% RH non-condensing
3) Storage temp & humidity: -20~+85°C, 10~95% RH
4) Vibration: EN 61131-2
Protection
1) Protection Short circuit: YES
2) Over load protection: YES
3) Over power protection: YES
Weight & Dimension
1) Certification: CE
2) PCB dimension: 121.5*33*58mm
3) Weight: 214g
4) Warranty Period: 24 months
5) Mounting: Desktop
6) MTBF: 50Khrs, Mil-HDBK-217F(25°C)
7) Connection: plug
Application
routers, switches, wireless APs, network telephones, industrial network terminals or IP cameras, massager, sos telephone, fetal monitor equipment, robot
Safety & EMC:
1) Standards: design refer to EN60950
2) Withstand voltage: I/P-O/P: 1.5KVAC, 5mA, 60S
3) Isolation resistance: I/P-O/P: 10
Packing
Each laptop adapter put in a bubble bag ,then packed in the Brown Box,
and then 50pcs packed in one carton or customized according to customers' requirment.
shipping
1. By express ,FedEx/DHL/UPS/TNT for samples, Door-to-Door;
2. By Air or by Sea for batch goods, for FCL; Airport/ Port receiving;
3. Customers specifying freight forwarders or negotiable shipping methods;
4. Delivery Time: 3-5 days for samples; 5-20 days for batch goods.
