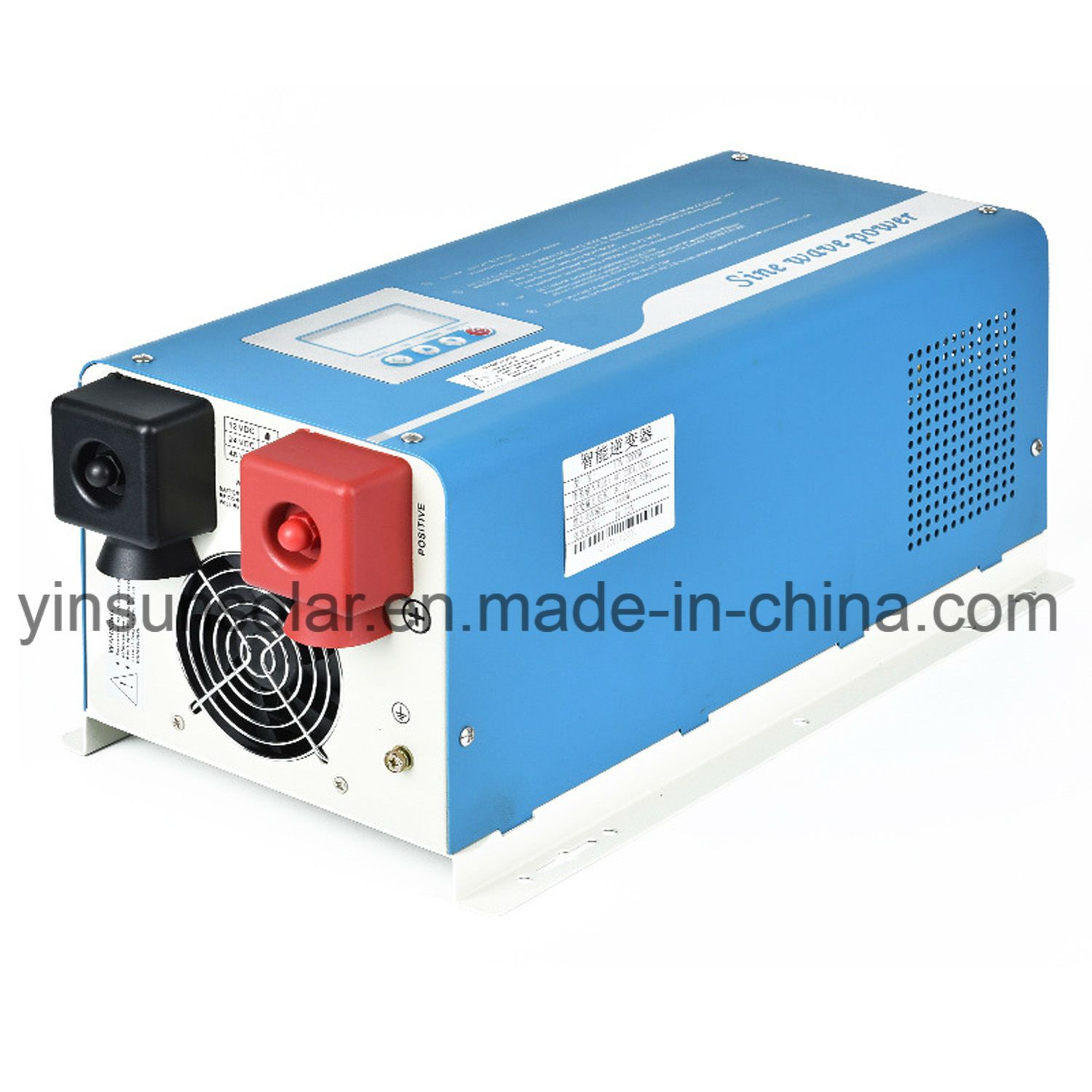

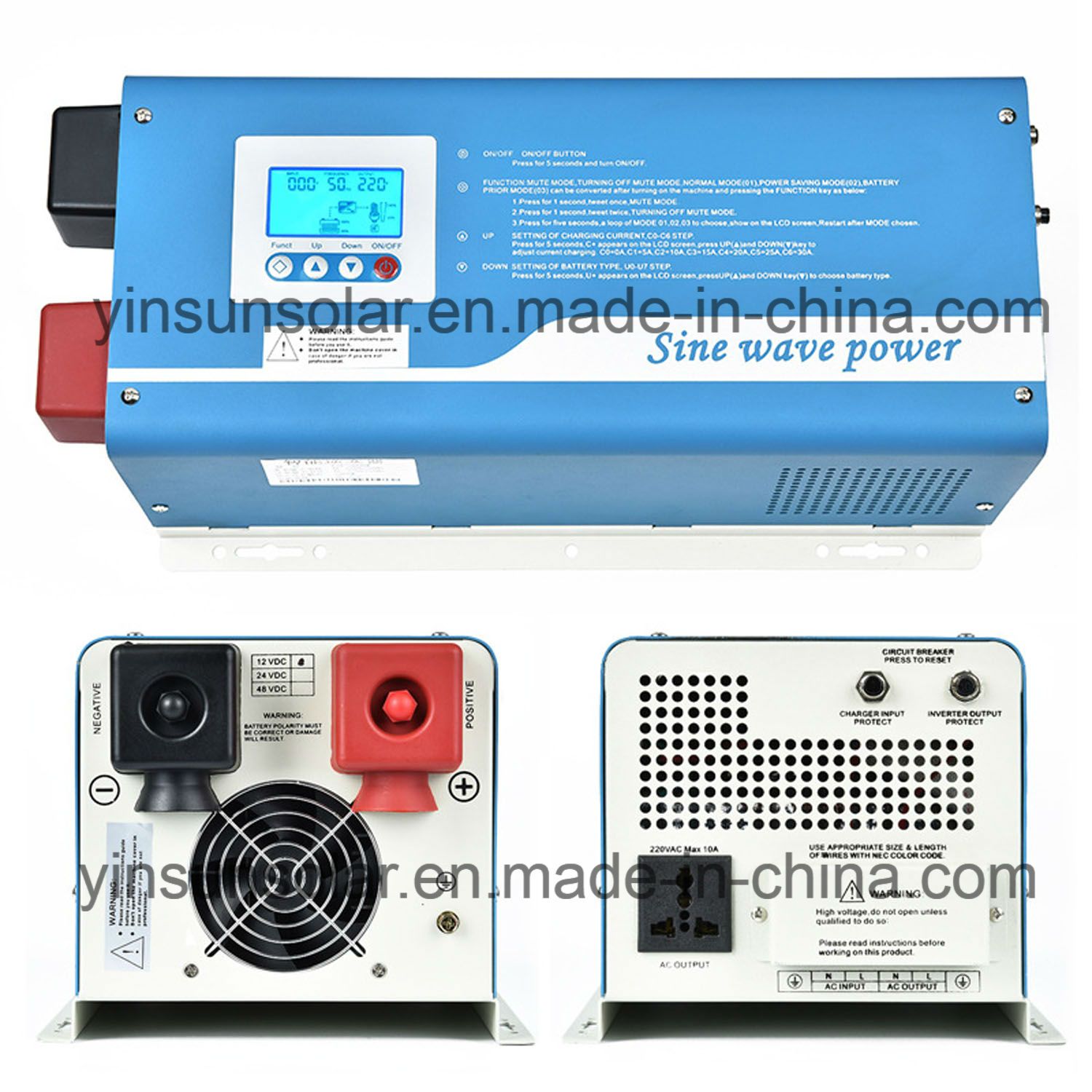

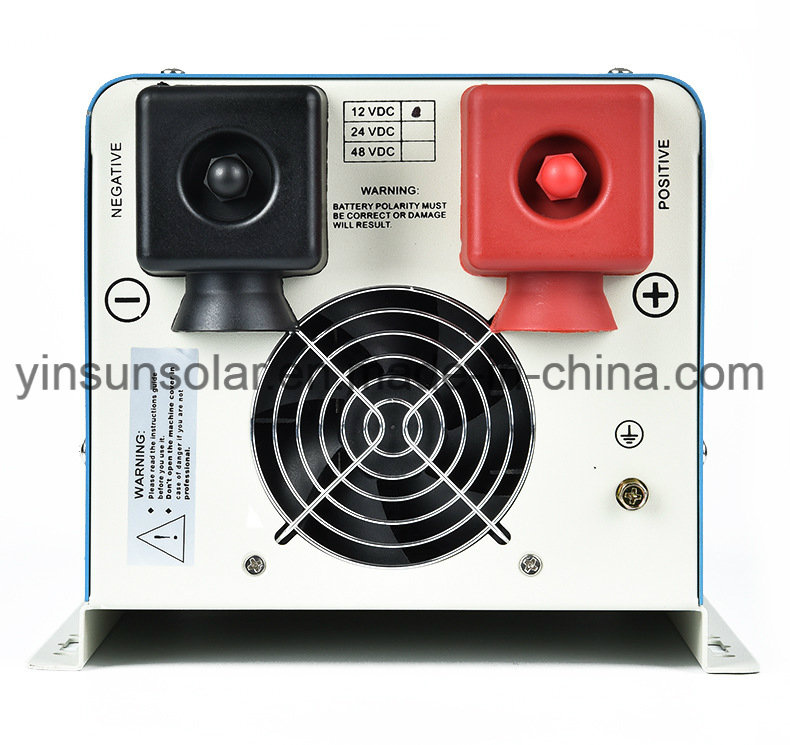

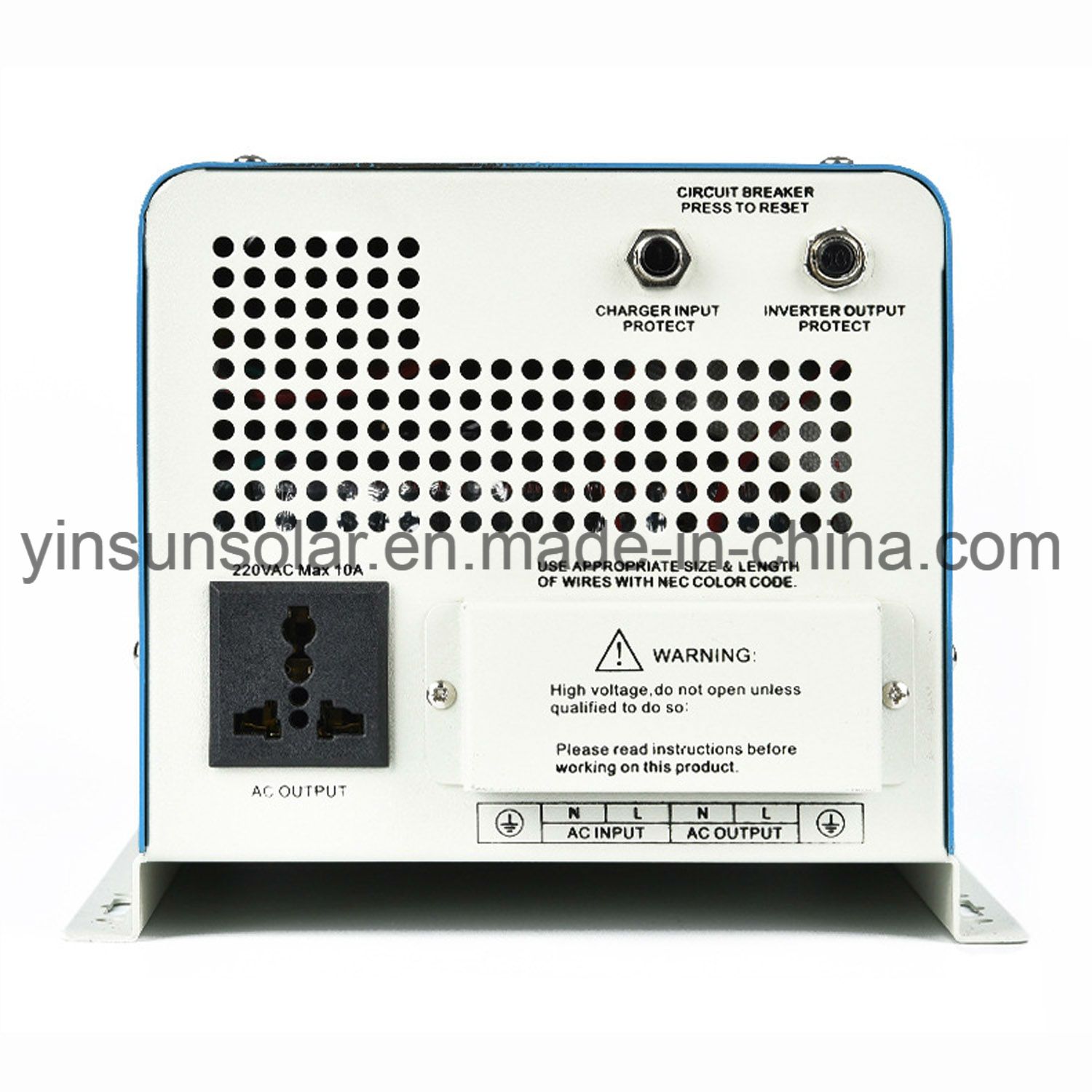

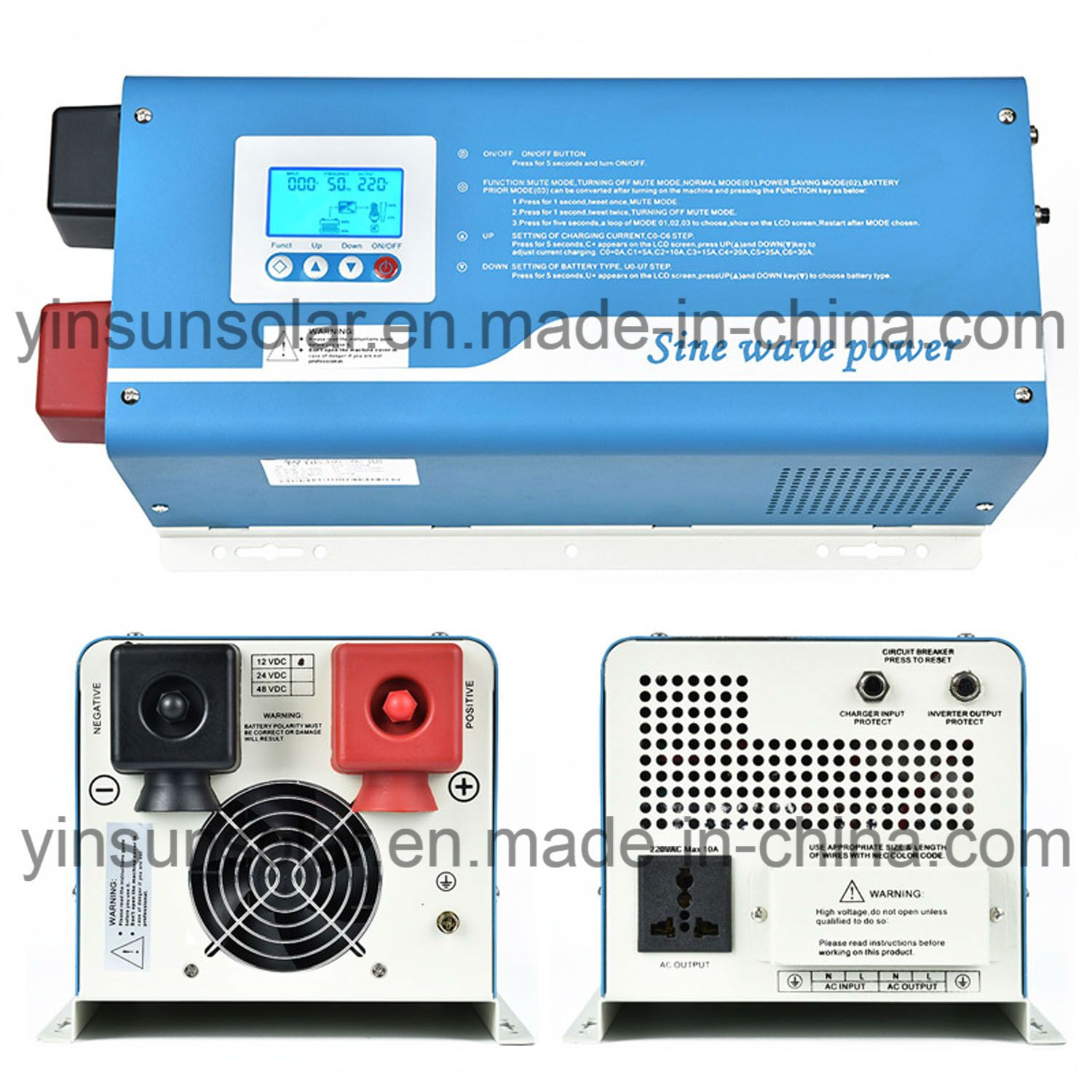

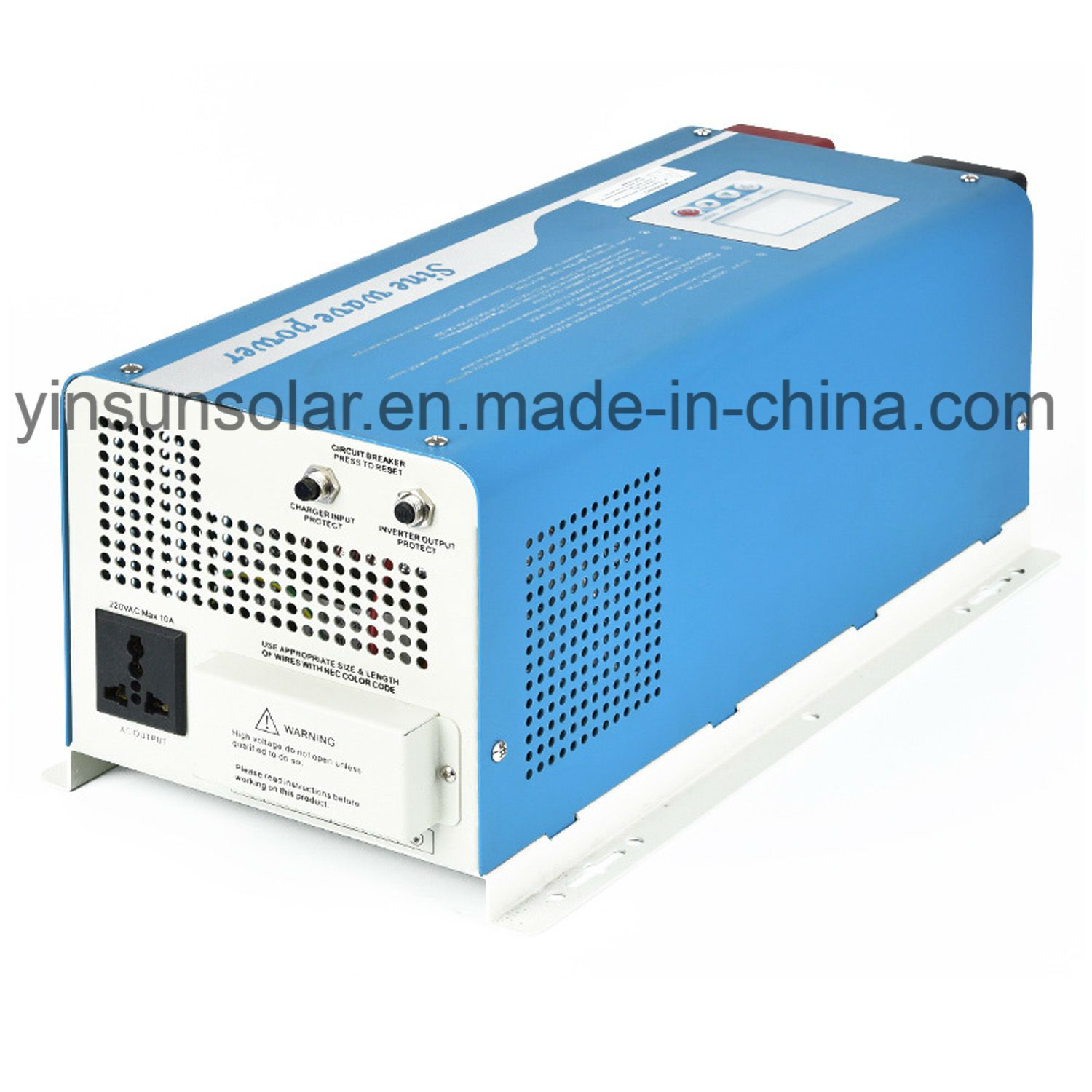

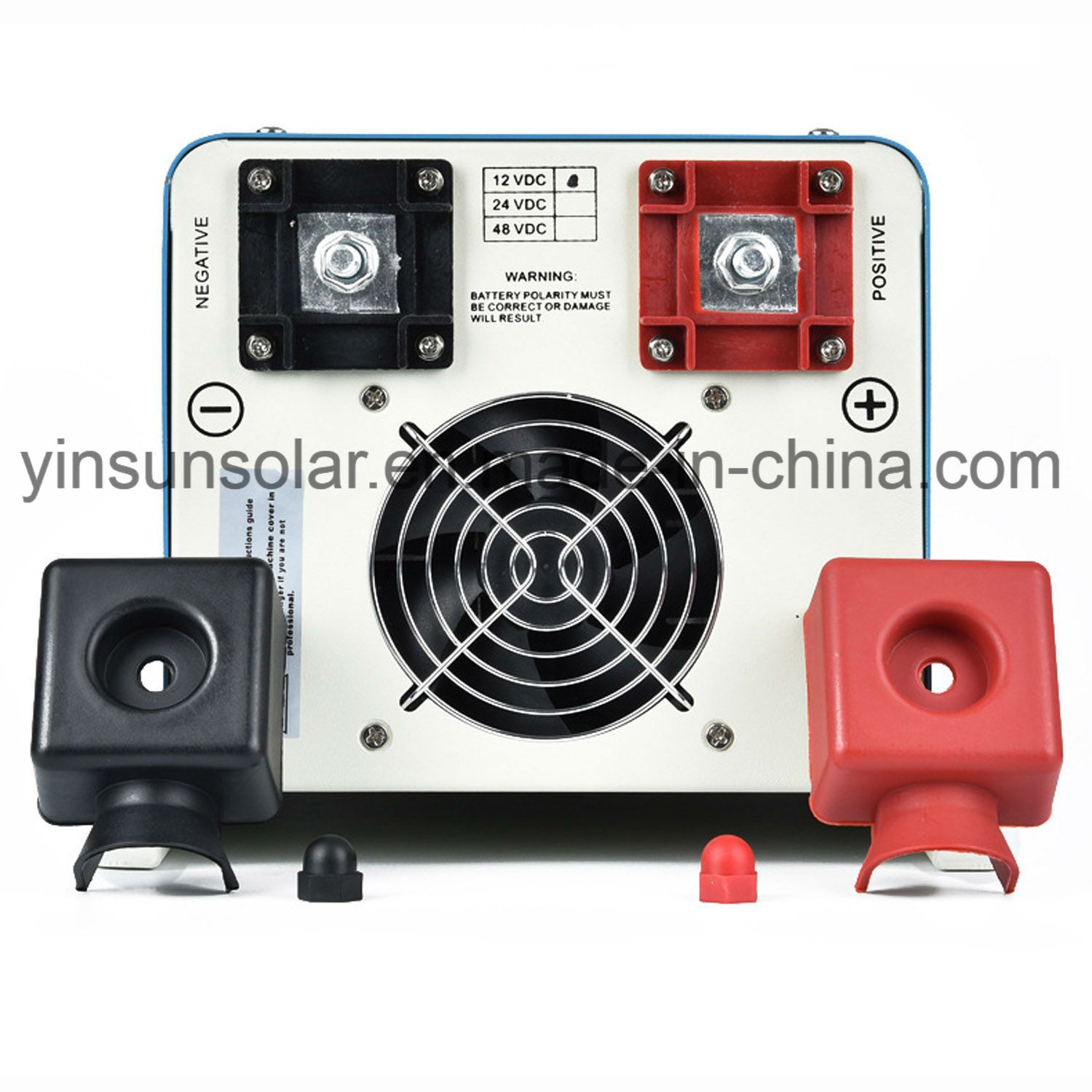

24V 2000W Pure Sine Wave Solar Inverter for Solar Power System
| Price: |
US $ 262-323/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal,Money Gram |
Product Description
Solar inverter
Using double MCU, the product provides different charge voltages and charge currents to realize charge management for batteries of different types.Its mains supply preferred mode ,energy-saving mode and battery preferred mode are all settable,thus making it easy to meet the different application needs of users.It has an LCD.it is widely applied to families,schools,streets,frontier defense,pasturing ares,industrial equipment,satelite communication equipment,military vehicle-borne equipment,ambulance,police cars,ships,ect.Main Features1.Excellent performance because of this module have double-MCU intelligent design.
2.Pure sine wave output for compatibility with loads of different types.
3.Visualization of operation status of the equipment through a digital LCD.
4.A wide range of input voltage,accurate output and full automatic voltage stabilization.
5.Settable battery type and charge current for the charge management of batteries of different types.
6.Settable mains supply preferred mode,energy-saving mode and battery preferred mode for easy meeting of the needs of different users.
7.Overall protection functions(battery overvoltage protection,battery undervoltage protection,overload protection,short circuit protection and overtemperature protection).
Technical indexes| Model:FT- | 1KW | 1.5KW | 2KW | 3KW | 4KW | 5KW | 6KW |
| Rated | 1000W | 1500W | 2000W | 3000W | 4000W | 5000W | 6000W |
Battery
| Rated voltage | 12VDC/24VDC/48VDC | 24VDC/48VDC | 48VDC/96VDC |
| Charge current | 30A (Default -C0-C6) |
| Battery type | U0-U7 |
Input
| Voltage | 85-138VAC/170-275VAC |
| Frequency | 45-65Hz |
| Output | Voltage | 50/60HZ ±1%(inversion mode) |
| Frequency | 110VAC/220VAC±5%(inversion mode) |
| Output waveform | Pure sine wave |
| Conversion time | <10ms(typical load) |
| Efficiency | >85%(80% resistive load) |
| Overload | 110-120%/30s;>160%/300ms |
| Protection function | Battery overvoltage protection,battery undervoltage protection,overload protection,short circuit protection,overtemperature protection etc. |
| Ambient temperature for operation | 0-40ºC |
| Ambient temperature for storage | -15-+50ºC |
| operation/storage confitions | 0-90%(no condensation) |
| Extermal dimensions:D*W*H(MM) | 480*222*182 | 655*248*182 |
| Packing dimensions:D*W*H(MM) | 560*290*235 | 735*316*235 |
Payment Term:
| Payment Terms | T/T | EXW | 30% T/T in advance, paid the balance before shipment |
| FOB |
| CFR(C&F) | 30% T/T in advance, paid the balance against copy of B/L |
| CIF |
| L/C | L/C amount above 50,000 usd, we can accept L/C at sight |
| West Union | Amount lower than 5000usd |
| Paypal |
| Delivery time | 3-15 working days after receiving payment |
service
1.Reply your inquiry in 24Hrs
2.Feedback of complaint in 24Hrs
3.OEM/ODM are accepted
4.Exclusive agents in local country are welcomed
5.Providing professional technical advice
6. All Yinsun solar products of our company have been obtained theCE, FCC, RoHS, IEC61215, IEC61730, TUV and VDE certificate,making sure that we can provide all of our clients the best user friendly products!
Welcome to contact us!
YINSUN Solar Energy Technology Co., Ltd. is a professional new energy manufacturer of solar solar PV modules and solar application products and systems research and development, manufacture and sales. YINSUN Solar Energy Technology Co., Ltd, has the first-rate factory, progressive production line of solar cell components, and mature production technology. On technology, it has a group of rich experience and strong ability of scientific research and new product development doctor, master high-tech talent in the field of research and development of solar energy. Through continuous technological innovation, our annual output is get to 100MW.
All solar products of our company have been obtained theCE, FCC, RoHS, IEC61215, IEC61730, TUV and VDE certificate. YINSUN company is committed to solar power business, provide professional green solar power products and solar power generation system, solar water heating systems engineering, and the reasonable development and utilization of natural resources for human being to create healthy and harmonious living environment and make unremitting efforts.
Our products mainly about solar modules; Solar power station; Home power system series; Solar street light; Garden light series; Solar energy traffic; Warning series; Solar energy electronic products, gifts; Solar control equipment; Inverter series; Solar battery; Buried box series; Energy-saving lighting lamps and lanterns series; The solar water heater series, etc...
Our company owned high quality of products and reasonable price. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with good quality at the reasonable price.
