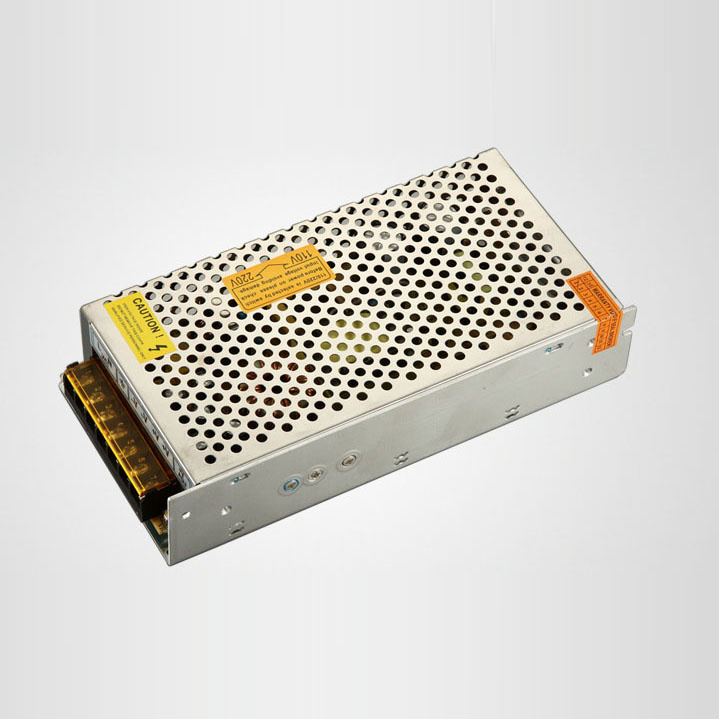

24V 200W DC Switch Mode LED Power Supply

Name: 24V 200W DC Switch Mode LED Power Supply
Brand: all-electronics-online.com
SKU: 786059335
Availability: InStock
Rating: 4.5 (22 reviews)

Price:	US $ 9/Piece
Trade Terms:	FOB,EXW
Min Order:	1000/Piece
Pay Type:	T/T,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	WSP-24-200
Markets:	Mid East
Size:	1609842mm
Output Type:	Single
Warranty:	>2 Years
Output Power:	101 - 200W
Input Voltage:	110-220V
Connection Mode:	Series Switching Power Supply
Starting Mode:	Self-excited Switching Power Supply
Voltage Regulating Mode:	Frequency Modulation Type
Power Supplying System:	Terminal Power Distribution Equipment
Certification:	CB
Brand:	OEM

Product Description

24V 200W DC switch mode LED power supply
1.Non-waterproof
2.Universal full range AC input
3.Protection short circuit,overload;over voltage
4.Nature wing cooling
5.Led indicator for power on
6.100% full loaded aging
7.No-load power consumption <0.5W
8. All 105°c long lifespan electrolytic capacitor used
9. Can suffer 300V AC surge input for 5 seconds
10. Working temperature reaches 60
11.Suffer 5G vibration testing
12. High reliability, low cost
13. 2 years warranty
14. CE & RoHs certificate

Model	WSP-24-200
Input	Input Voltage(V)	180VAC~264VAC
	Input Current (A)	0.57A Max
	Frequency (Hz)	50Hz-60Hz
	Efficiency	82% Typ(230VACFull Load)
	Inrush current(A)	Cold star <40A/230VAC
	Leakage current(mA)	<3mA/240VAC
Output	Output Voltage(V)	+24VDC
	Voltage Regulation	+3,-2%
	Output Current(A)	8.3A
	Current Range (A)	0 ~ 8.3A
	Rated Power(W)	200W
	Start time, hold-up time(ms)	Ton≤1000ms,Td≥20ms @230Vac Full Load
	Rise time(ms)	Typ:20ms @230Vac Full Load
	Ripple/Noise(mVp-p)	120mVp-p
Environment	working Temperature (°C)	0°C - +40°C(refer derating curve)
	Storage Temperature(°C)	-20°C - +60°C
	Humidity(%)	20% - 90% RH non condensing
Safety/ EMC	Withstand voltage(VAC)	I/P-O/P:1.5KVAC,I/P-FG:1.5KVAC,OP-FG:0.5KVAC 1min
	Safety Standard	EN/UL60950-1,GB4943
	EMC Standard	EN55022 Class B,EN61000-4-2,3,4,5,6,8,11 GB17626.5 Level3
Protection	Over voltage Protection	>115%-135% Rated output voltage
	Over load Protection	>105%-150% Auto recovery
	Short circuit Protection	Latched
	Over Temperature Protection	No
Others	Sise LWH(mm)	1999842mm LWH
Others	Weight	456g/pcs
