| Prod Model: |
LHDV-24E200 |
| Markets: |
South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model No.: |
Lhdv-24e200 |
| Input Voltage: |
180-250 VAC 50/60 Hz |
| Output Current: |
8.33 a Max |
| Output Voltage: |
24VDC ± 5% |
| IP Rating: |
IP23 |
| Installation: |
Outdoor Rainproof |
| Weight(Kg): |
0.9600 |
| Packing Information: |
20 PCS/ Carton, G.W 20.5kg |
| Cooling: |
Built-in Electric Fan |
| Dimensions(L*W*H): |
207*140*66 mm |
| Usage: |
Vehicle |
| Output Type: |
Single |
| Driving Method: |
LED Regulator Voltage |
| Circuit Structure: |
PWM Controlled |
| Certification: |
Bis |
| In-Out: |
AC to DC |
| Power Supply Voltage: |
AC180-250V |
| Brand: |
Neonpro |
Product Description

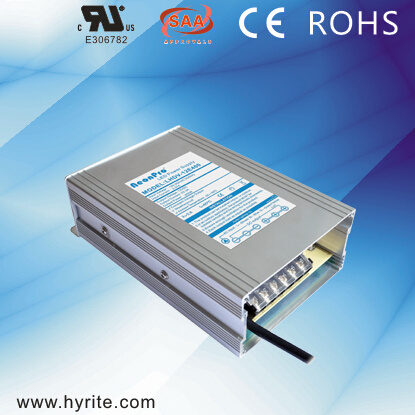

24V 200W Economic Type Slim Rainproof Power Supply CE BISBrief Introduction:- Constant voltage output.
- Rainproof.
- Special heat dissipation design with aluminium housing and hot start ventilating fan.
- Safety design with separated line input power cord and low voltage output terminals, preventing electrical shock.
- Output voltage adjustable.
Technical Specification:| Model no. | LHDV-24E200 |
|---|
| Input voltage | 180-250 VAC 50/60 Hz |
|---|
| Max. power | 200W max |
|---|
| Output type | Constant voltage |
|---|
| Dimming | No |
|---|
| Built-in active PFC | No |
|---|
| Power factor | Low |
|---|
| Efficiency | >83% |
|---|
| Output voltage | 24VDC ± 5% |
|---|
| Output current | 8.33 A max |
|---|
| Operating temperature | -25~40 |
|---|
| Installation | Outdoor rainproof |
|---|
| IP rating | IP23 |
|---|
| Cooling | Built-in electric fan |
|---|

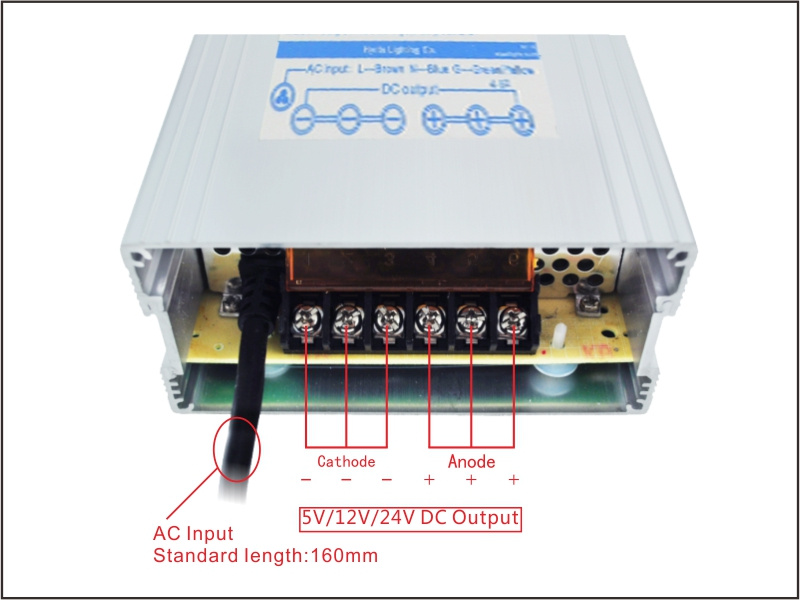

| Connection input/output | Input:18AWG*3(30cm) Output: terminal(six) |
|---|

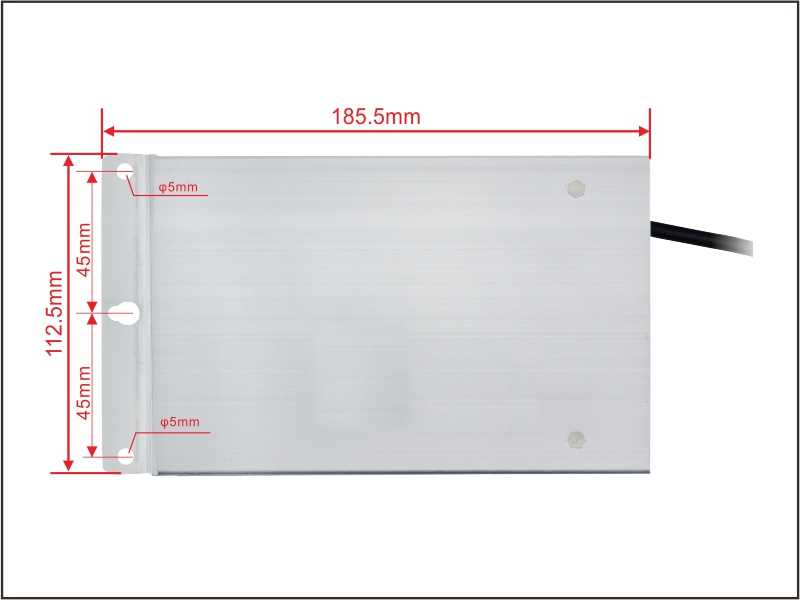

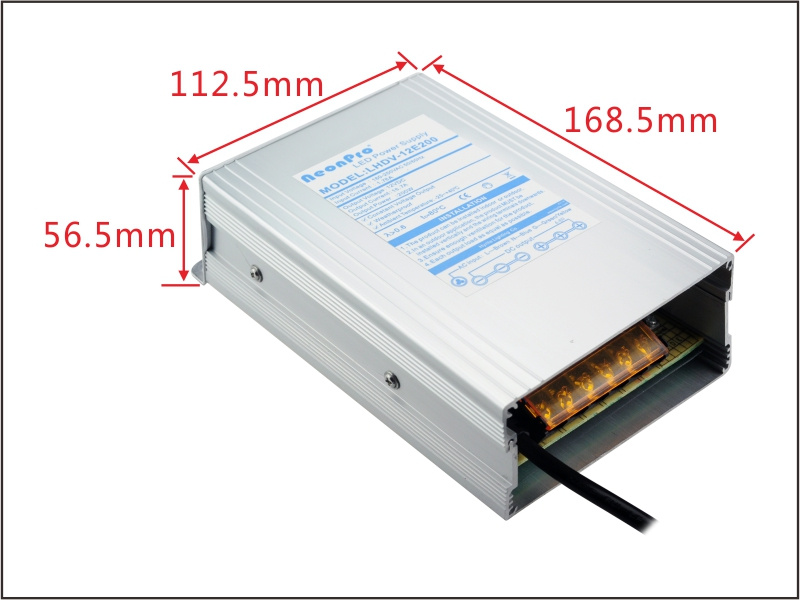

| Dimensions(L*W*H) | 207*140*66 mm |
|---|
| Weight(kg) | 0.9600 |
|---|
| Packing information | 20 Pcs/ Carton, G.W 20.5KG |
|---|
Detailed picture of LED power supply
Applications of LED Driver* LED module* LED strip* LED-neon tube* Bar light* Other signage lightingImportant Parameter of LED Driver:* Store Temperature: -25~75° C* Working Temperature: -25~40° C* Work environment: Indoor or outdoor installations* Waterproof Rating: IP67 Projects around the world:Our projects covering banks, shops and buildings all over the world.
* LED Power Supply suitable for Office lighting, Artwork lighting, Display case
* Home lighting
* Commercial lighting, such as down light, underground lamp, Panel light, Spotlight, Wall washer, etc.
* Hotel, Restaurant lighting
* Other public lighting
Our factory and production line:Hyrite is a professional manufacturer of LED power supply and LED module. We have more than 20 years experience in design, development and manufacturing of electronic power supplies. Including waterproof /rainproof/indoor LED power supply for LED module, strip, flex ribbon, bar light, spot light, down light, wall washer, panel light, etc...
(1) Office show
We have more then 300 staffs in our company and cover an area of 15000 in Guangdong, China with additional office in the USA
(2)Professionnal testing machine: SMT, Burn-in test machine...

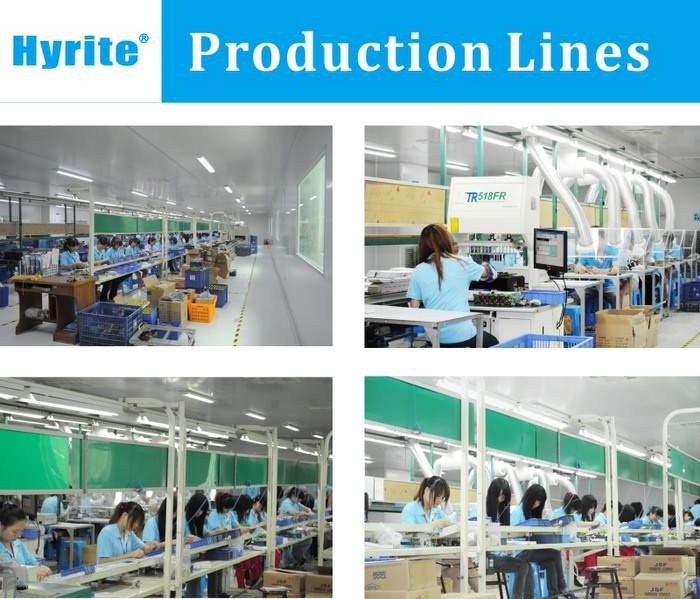

(3) Production lines:
There are 12 production lines in our factory.
Our Exhibitions:Sign China; LED China; Guangzhou International Lighting Exhibition; Shanghai Int'l Lighting Expo; Light India; Hong Kong International Lighting Fair.
