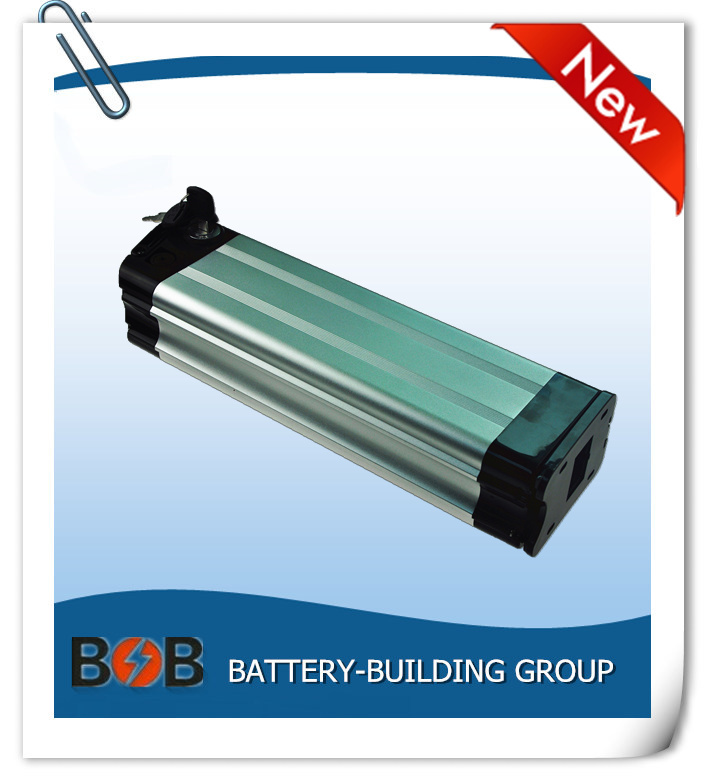

24V 20ah Silver Fish Lithium Battery Pack

Prod Model:	BBG-SF-LP2420
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Application:	E-Bike, E-Scooter
Dimension:	135*90*370mm
Structure:	Icr18650 2200mAh 7s9p
Charger:	5A Aluminum Case Charger
Type:	Lithium-Ion Battery Pack
Connection Mode:	Series and Parallel
Usage:	E-Bike, E-Scooter
Standard Voltage:	24V
Rated Capacity:	20ah
Electrolyte:	Li-ion

Product Description

24V 20Ah silver fish lithium battery pack

Features:
1. li-ion battery pack
2. silver fish type
3. Long cycle life
4. High energy density

Specifications:
1. Nominal voltage: 24Volts.
2. Rated capacity: 20Ah.(Min)
3. Lifecycle: 500 Cycles.
4. Dimension: 135*90*370mm
5. Operating temperature:- 20 °C to 60 °C
6. Charge temperature: 0 °C to 45 °C
7. Storage temperature: -20 °C to 45 °C
8. Operating humidity:5% to 90%
9. Continuous discharge current:15A
10.Instantaneous maximum current:35±5A
11.Cut-off voltage:20V(Discharge protection voltage)
12.Charging voltage:29.4V(Full voltage)
13.Combination: 7S9P

We supply batteries types such as bottle battery, rear rack battery, silver battery, frog battery, Qingtian battery, 24/36/48V normal series, we also accept customized battery packs, domestic cell or imported cells are all available. If you are interested, welcome to send your inquiry.

Key Application
Widely applied in  Electric Bicycle, Electric vehicle, Electric Tricycle, Electric scooter, Electric golf trolley, Electric car, Electric wheelchairs,two wheel vehicles and etc.

Payment Terms
1.We accept bank transfer(T/T) ,PayPal,Cash.
2.If you prefer other payment method,please contact us by email.

Shipping Terms
1.Samples order: sending by Express ( DHL/ UPS/ FEDEX/ TNT )
2.Bulk order: sending out by air/express/sea.

Warranty Instructions
1.We provide 2 years Warranty.
2.Warranty code: quality problems, defective goods can be fixed or replacement; Man-made damage, inflowing water, fault operation leading to short circuit or burning, damaged by carrier is out of our warranty.
3.Goods should be returned in original condition to qualify for a replacement or repair.

Advantages
1.OEM&ODM manufacture, design any of special shape, dimension and other requirements battery packs.
2.Good quality, competitive price, fast delivery, excellent service.
3. Wonderful package, stable shipment, 100% testing and inspection before shipment to insure the quality.
4.CE, RoHS, UN38.3, UL, MSDS certificates.
5. Quick action&response,every inquires will be relied within 24 hours

More models:

Model	Style	Material	Voltage	Capacity	Dimension	Weight	Charger
					Include BMS and housing
			(V)	(Ah)	L*W*K  (mm)	(kg)	(A)
BBG-SF-LFP2408	Silver fish	LiFePO4	24	8	75*110*378	4	2
BBG-SF-LFP24081	Silver fish	LiFePO4	24	8	89*89*401	4	2
BBG-SF-LN2410	Silver fish	LNCM	24	10	89*89*401	3.5	2
BBG-RR-LFP2408	Rear rack	LiFePO4	24	8	70*150*245	4	2
BBG-RR-LN2410	Rear rack	LNCM	24	10	70*150*246	3.5	2
BBG-SF-LFP2410	Silver fish	LiFePO4	24	10	75*110*378	4.2	2
BBG-LF-LFP2410	Frog	LiFePO4	24	10	80*150*180	4.2	2
BBG-RR-LFP2410	Rear rack	LiFePO4	24	10	70*150*245	4.2	2
BBG-WB-LFP2410	water bottle	LiFePO4	24	10	91*91*410	4.5	2
BBG-SF-LFP2420	Silver fish	LiFePO4	24	20	135.5*88.8*395	6	5
BBG-SF-LFP3608	Silver fish	LiFePO4	36	8	75*110*385	4.2	2
BBG-RR-LFP3608	Rear rack	LiFePO4	36	8	70*150*365	4.2	2
BBG-LF-LFP3606	Frog	LiFePO4	36	6	80*150*180	4	2
BBG-SF-LFP3610	Silver fish	LiFePO4	36	10	75*110*385	4.5	2
BBG-RR-LFP3610	Rear rack	LiFePO4	36	10	70*150*365	4.5	2
BBG-WB-LN3610	water bottle	LNCM	36	10	91*91*435	4	2
BBG-FB-LN3610	Frog	LNCM	36	10	80*150*180	4	2
BBG-RR-LFP3612	Rear rack	LiFePO4	36	12	69*150*480	4.5	2
BBG-SF-LFP3612	Silver fish	LNCM	36	12	89*85*385	4.5	2
BBG-RR-LN3614	Rear rack	LiFePO4	36	14	68*148*385	5.5	3
BBG--RR-LFP4810	Rear rack	LiFePO4	48	10	68*150*480	7	2
BBG-LFP4820	Epoxy board & PVC packaged	LiFePO4	48	20	320*140*150	14.5	4
