| Prod Model: |
Cosmos Star Series 1000W-6000W |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| AC Output Socket: |
Optional |
| Frequency Range: |
48-54Hz/58-64Hz |
| Material Of Shell: |
Aluminum |
| Max Ouput Current: |
15A |
| Phase: |
Single |
| Power Source: |
Solar Power |
| Application: |
Home Theater |
| Brand: |
Upsen |
Product Description

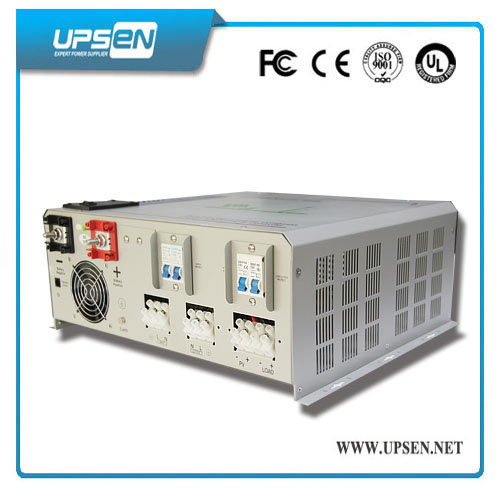

24V 3000W Sinusoid DC to AC Single Phase Power Inverter
Model: Solar Inverter Controller All in one Cosmos Star Series 1000W-6000W (1ph in/1ph out)
Hybrid Inverter Overview
1 . Perfect protection functions
2 . Auto restart while AC is recovering
3 . Full power output under harsh circumstance
4 . Compatible to mains Voltage or generator power
5 . Buit-in MPPT Solar mppt charger controller 20/30/40/50/60A
Key Features:
1:Remote control & RS232 communication port
2:Automatically transfer between battery and line modes
3:AC Grid priority & battery priority working mode as selectable
4:Large graphic LCD display with support for multiple languagees
5:Four stages smart charging, charging current adjusted automatically
6:DIP switch optional: Selectable charging voltage for various battery type
7:Wide input voltage range, single MPPT mode, workable on inductive load
8:Can accept electricity produce by different kinds of generator, wide usable range
9:More logical circuit arrangement, stricter production control and simpler structure design
10:Pure sine wave output which matches wave form of AC grid no matter is on AC grid mode or inverter
11:AC grid mode: AC Bypass supplies load when AC is normal, battery invert AC supplies load when AC is off
12:Professional off grid solar system solution, which is a combination of big power inverter and solar controller
13:Solar priority, high efficient use of energy. Automatically charge from Grid power when insufficient PV power
Technical Specification
Mode NO. |
CS600 |
CS1000 |
CS2000 |
CS3000 |
CS4000 |
CS5000 |
CS6000 |
Rated Power |
600W |
1000W |
2000W |
3000W |
4000W |
5000W |
6000W |
AC INPUT |
Phase&Waveform |
Single pahse&Pure Sine Wave |
Voltage |
110VAC/120VAC/220VAC/230VAC/240VAC |
Fequency |
50HZ/60HZ(Auto adjust) |
Voltage range |
95-127VAC/194-253VAC |
Frequency range |
48-54HZ/58-64HZ |
AC Output |
Waveform |
Pure Sine wave and single phase |
Voltage |
110VAC/120VAC/220VAC/230VAC/240VAC |
Frequency |
50HZ/60HZ |
Peak Power |
1800W |
3000W |
6000W |
9000W |
12000W |
15000W |
18000W |
Battery | |
Battery DC |
12/24VDC |
12/24VDC |
12/24/48VDC |
24/48VDC |
MAX charging cunrrent |
20A-75A |
Battery type |
GEL,AGM,Sealed lead acid |
MPPT Controller | |
PV Input |
15-30VDC For 12VDC/30-55VDC For 24VDC |
MAX charging cunrrent |
20/30/40/50/60AMP |
MAX Ouput current |
15A |
for DC laod |
Transfer efficiency | |
MPPT efficiency |
more than 95% |
Line Mode |
more than 95% |
Battery Mode |
more than 85% |
Power Saver |
Available when load is less than 50A |
Transfer time |
10ms |
Indicator | |
7-LED Indicators |
Left to right:1.Line Mode(Green),2.Inverter Mode(Green),Charging Mode(Yellow),4.Full Charged(Green), |
5.Over Temp(Red),6.Over Load(Red),7.Saving Mode(Green) |
2-LED Indicators on MPPT |
Power/CHG Mode |
Dimension |
486*400*181mm |
486*432*181mm |
Weight |
22KG |
26KG |
28KG |
33KG |
45KG |
52KG |
56KG |
Competitive Advantages:
1: Three Years' warranty for pure sinewave inverter, and 1% free set or 2% free PCB Boards
2: Good after-sales service, we will be full responsible for any faults caused by our side
3: Professional experience in power field more than 10 years
4: Professional technical support before and after sales
5: Timely response, fast delivery time and flexible operations to satisfy any customers' special requests.
6: Free OEM & ODM Service
7: Competitive price, quality and mature products
Shenzhen UPSEN Electronic Co., Ltd. Which is located in south of China, Shenzhen City, close to Pearl of the Orient HK, with beautiful environment and convenient transport.
We are a private high-tech enterprise integrating researching & development, production & operation and technical services as a whole, which is specialized in Electric, Electronic and Energy fields for a long time. Our main products are UPS Power, Inverter Power, Battery Power, Solar&Wind Power. We are dedicated to offer quality power and power solution for Data-center, Telecom, Bank, Hospital, Transportation, Industry, Army, Security, and civil & office area etc. Moreover, we have mastered the core technology of power products through our independent research, we are one of few domestic enterprises which can meet the customers' customized requirements, and provide professional power solutions.
We already past ISO9001 international quality system certification, and established a complete quality system ranging from material source, process, assembling to testing. All our products are with CE Certificate, which exported to more than 30 countries and areas, like Australia, Europe, Africa, North America, South America, the Middle East, central Asia, southeast Asia etc.
We will always offer excellent quality and products to customers. Hope to make Integrity and Double-Win business with you, and to be your professional power supplier and solve your any power problems. We are sure UPSEN can achieve more successes with our efforts and your support.
