| Prod Model: |
PV1800 MPK |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Product Name: |
off-Grid High Frequency PWM Charge Controller Sola |
| Output Waveform: |
Pure Sine Wave Output |
| Rated Power: |
2kVA~5kVA |
| Surge Power: |
2*Rated Start Power |
| Frequency: |
50Hz/60Hz Auto Sensing |
| Protection: |
Overload, Short Circuit Protection |
| Color: |
Silver, Red, and Green |
| Warranty: |
12 Months |
| Max PV Charge Current: |
50A |
| Phase: |
Single |
Product Description
1.About the PV1800 series High Frequency Solar Inverter: This is a multi-function inverter/charger, combining functions of inverter, solar charger and battery charger to offer uninterruptible power support with portable size. Its comprehensive LCD display offers user-configurable and easy-accessible button operation such as battery charging current, AC/solar charger priority, and acceptable input voltage based on different applications.
2. Main Features of PV1800 PK series:
. Pure sine wave inverter
. Selectable input voltage range for home appliances and personal computers
. Selectable charging current based on applications
. Configurable AC/Solar input priority via LCD setting
. Compatible to mains voltage or generator power
. Parallel operation with up to 4 units only available for PV200 4KVA/5KVA
. Auto restart while AC is recovering
. Overload and short circuit protection
. Smart battery charger design for optimized battery performance
. Cold start function

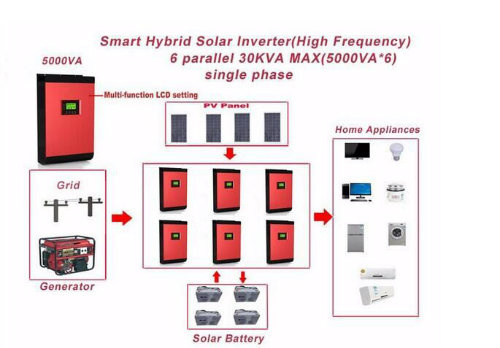

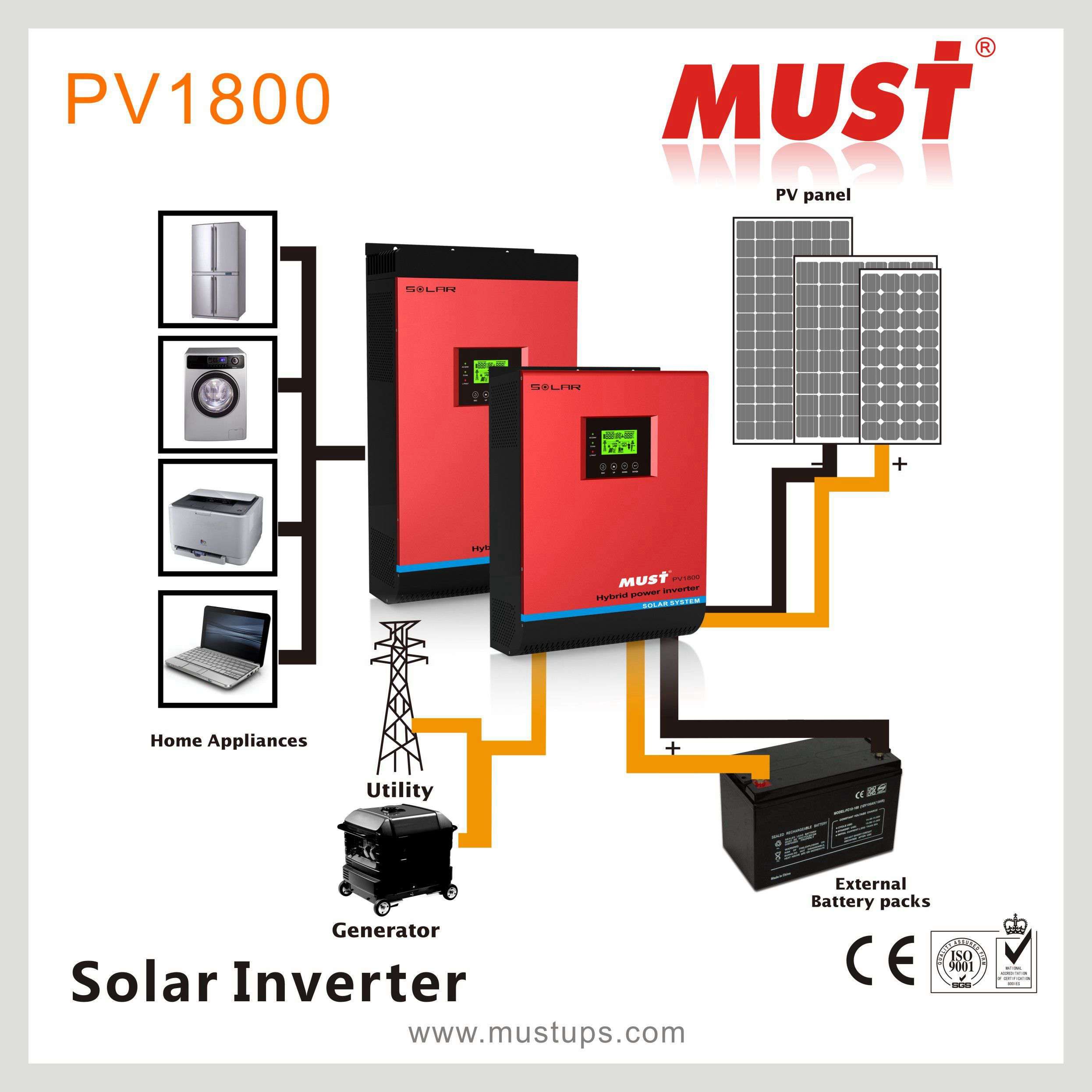

Connection in Solar system& connection in Parallel
Full Specification of the Hybrid Solar Inverter
| MODEL | PH18-1K PK | PH18-2K PK | PH18-3K PK | PH18-4K PK | PH18-5K PK |
|---|
| Default Battery System Voltage | 12VDC | 24VDC | 24VDC | 48VDC | 48VDC |
| INVERTER OUTPUT | Rated Power | 1000VA | 2000VA | 3000VA | 4000VA | 5000VA |
| 800W | 1600W | 2400W | 3200W | 4000W |
| Surge Power | 2000VA | 4000VA | 6000VA | 8000VA | 10000VA |
| Waveform | Pure sine wave |
| AC Voltage Regulation (Batt.Mode) | 230VAC±5% |
| Inverter Efficiency (Peak) | 90% | 93% |
| Transfer Time | 10ms(For Personal Computers) 20ms(For Home Appliances) |
| AC INPUT | Voltage | 230VAC |
| Selectable Voltage Range | 170~280VAC(For Personal Computers) 90~280VAC(For Home Appliances) |
| Frequency Range | 50Hz/60Hz (Auto sensing) |
| BATTERY | Nominal voltage | 12VDC | 24VDC | 48VDC |
| Floating Charge Voltage | 13.5VDC | 27VDC | 54VDC |
| Overcharge Protection | 15.5VDC | 31VDC | 60VDC |
| SOLAR CHARGER & AC CHARGER | Maximum PV Array Open Circuit Voltage | 50VDC | 60VDC | 105VDC |
| Standby Power Consumption | 1W | 2W | 2W |
| Maximum Solar Charge Current | 50A |
| Maximum AC Charge Current | 10A or 20A | 20A or 30A | 60A |
| Maximum Charge Current | 50A | 50A | 110A |
| MECHANICAL SPECIFICATION | Dimension,W*H*D | 240*316*95mm | 272*355*100mm | 297.5*468*125mm |
| Net Weight(kg) | 8 | 12 | 15 |
| OTHER | Humidity | 5% to 95% Relative Humidity (Non-condensing) |
| Operating Temperature | 0°C-55°C |
| Storage Temperature | -15°C-60°C |
3.Payment & Shipping & Sample1) Payment: T/T (Telegraphic transfer), and Western Union
2.)Shipping: DHL, FedEx, UPS, EMS, Airway and By Sea4.Our services 24 hours Online----You will get my quotation and response within 24hours
12 months warranty----You will get the spare parts and maintaince guides if any break dowm
Available spare parts----You will get the spare parts for after-sale service
After-sale service----You will be servised by the professional after-sale service center if any problems
To be regular clients or Agents of MUST----You will get the beautiful gifts and many Preferencial Policy
24 Hours After-service consultancy just for you and to make your problems to solve easily.
Must Power Team will offer these guides below.
A. Need a Accessory
B. Products Repair
C. Power Problems to Solve
D. Power Protection Solutions, etc.5.MUST POWER LIMITED Company Introduction:
-------Must Power Limited was established in 1998, with the headquarter in Hong Kong, which is a professional Hi-tech enterprise specializes in the research, development and manufacturing of Uninterruptible Power Supply (UPS), power inverter, solar power inverter.
--------Our comprehensive product lines include: Offline UPS, line interactive UPS, online UPS, power inverter, solar inverter, solar controller. Most products with CE, SONCAP certificate and IS9001 quality certificate. We are one of the authorized suppliers for China Government.
--------Must power with an excellent R & D team formed by over 30 engineers, and together 10, 000 square meter in-house manufacturing facilities in Shenzhen city, Guangdong, China.
Our main markets are Africa, Middle East as Ukraine, Italy, Kenya, South Africa, Nigeria, Pakistan etc.
Contact US:
--------Want to know more about our company?
--------Want to know more about our products? Want to know more about the Price, packing, Shipping and any discount? Dear Friend, Do not Hesitate. Leave a Inquiry! ! ! ! : -6.Why Always Must Power???1)Professional--Over 12 years Professional Power System Producing Experience
2)Reliable
3)Hi-tech--Two Advanced R&D Team
4)Certifications--Applied with CE, ISO 9001, Soncap,IEC etc
5)Quality guarantee--One year warranty7. Answers to frequency questions: 1. Q: Can I have sample before formal order?
A: Sure, it will be warm welcomed.
2. Q: What's the warranty:
A: 12 months.
3. Q: What's the payment methods?
A: Usually we accept T/T (Telegraphic Transfer), and Western Union.
4. Q: OEM is available?
A: Yes, OEM is welcomed.
Contact information:
Heaven Lee
Mobile phone: +86 13823339627
Shenzhen Must Power Limited established in 2010, with the headquarter in Hongkong, which is a professional hi-tech enterprise specialized in UPS, Power Inverter, Solar Power, VRLA Battery development, manufacturing, sales and after-service.
Our comprehensive product lines include:
Off-line UPS, line interactive UPS, On-line UPS, Solar inverter, Power inverters, Stabilizers and Solar battery.
Most of products from MUST applied with CE, FCC certificates. The main markets are Ukraine, Russia, Vietnam, Thailand, Pakistan, India, etc. Must Power Limited is one of the authorized suppliers for China Citic Bank, Ministry of Information Industry of China, Ministry of Power Industry of China, Ministry of Transportations of China.
With an excellent R & D team formed by over 30 engineers and a skilled, dedicated workforce, together 10, 000 square meter in-house manufacturing facilities in Guangdong China, Shenzhen Must Power Limited has innovated, developed and improved the products to meet the demands of customers and keep pace with changing demands of the industries. With 'close to customer' notion, we have aligned most of its resources to support our Original Equipment Manufacturer (OEM) customers, and work with our customers as power partners. Our mission is to be the best supplier of power solutions, and to accomplish this, we will continue to tailor products for market needs while maintaining high quality, integrated customer service and prompt delivery.
