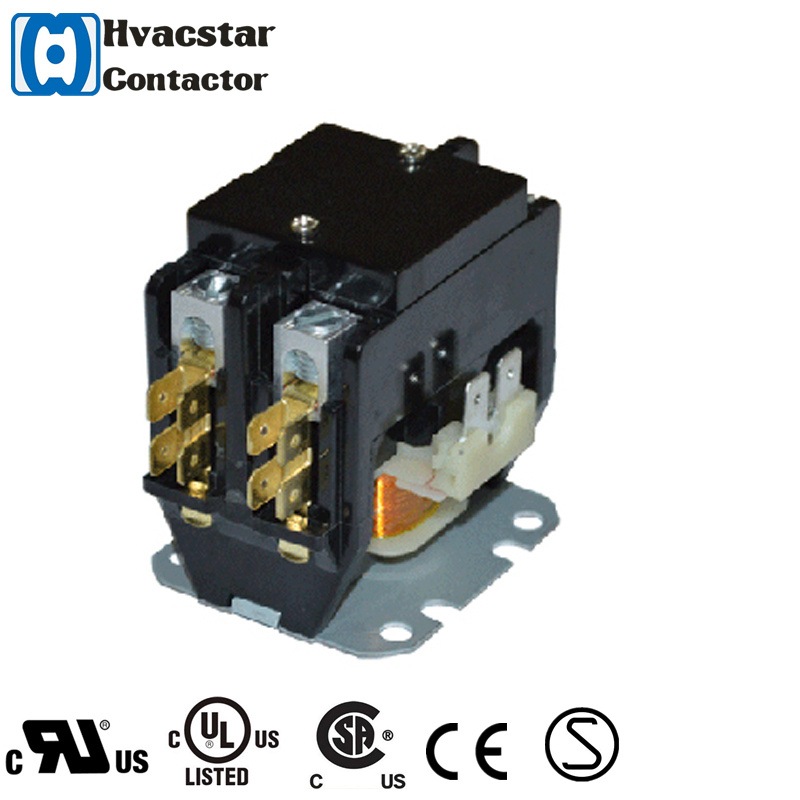

24V-40A-2p Single Phase UL Ce Certificated Electrical Magnetic Contactor

Prod Model:	SA-2P-40A-24V
Color:	Black
Certificate:	Ce, UL, CCC, S, CSA
Material:	High Arc-Resistant Phenolic Resin
Application:	Refrigeration, Air Conditioning and Heating
Electrical Life:	1, 000, 000(AC3)
Mechanical Life:	10, 000
Frequency:	50/60Hz

Product Description

SA-2P-40A-24V       24V-40A-2P Single Phase  UL CE Certificated Electrical Magnetic Contactor
About us:
Mingguang Hecheng electrical Co.,LTD , is a master of manufacturing all Kinds of Contactors  (including
DP Contactors,  LC1 series contactors ,  Founded in Mingguang City,China, in 2005,  stepped  into the  HVAC industry  as  a reliable source .
Our  strongest domestic suppliers and our vast   experience  with  global  trading, allows  us to  bring  the
Most   innovative  and highest  quality  products available to our customers.

PRODUCT DESCRIPTION
USR, CNR - Definite Purpose Contactors, SA Series Defined Purpose AC contactors. SA, may be followed by 1.5P, 2P, 3P or 4P, followed by 20A, 25A, 30A, 40A, 50A, 60A, 75A or 90A, followed by 24V, 120V, 208/240V,  277V, 380V or 480V

PRODUCT APPLICATION
SA series Definite Purpose Contactors are suitable for commercial applications including air conditioners, refrigeration, resistive heating, lighting and many other installations where a low cost, high performance contactor is needed. These devices offer flexibility and are designed to meet or exceed electrical and mechanical requirements as defined by Definite Purpose Contactors standard of USA/Canada.

RATING:
Models SA-1.5P, SA-2P are rated 600 VAC, single-phase. Models SA-3P, SA-4P are rated 600VAC, three-phase, except models rated 300 LRA and 360 LRA are rated 480VAC max.   See table for FLA/LRA/Resistive or  Resistance air heating ratings. All devices are rated "Break All Lines."


MODEL	FLA(A)	LRA(A)	LRA(A)	LRA(A)	LRA(A)	Resistive or Resistance air heating(*)
		480 V ac	600 V ac	277 V ac	240 V ac	277vac
SA-1.5P	20	100	80	120	120	20
	25	125	100	150	150	25
	30	150	120	180	180	30
	40	200	160	240	240	40
SA-2P	20	100	80	120	120	20
	25	125	100	150	150	25
	30	150	120	180	180	30
	40	200	160	240	240	40
	50	240	200	240	300	50
	60	300	240	240	360	60
	75	300	-	300	450	75
	90	360	-	360	540	90
SA-3P	20	100	80	120	120	20
	25	125	100	150	150	25
	30	150	120	180	180	30
	40	200	160	240	240	40
	50	240	200	240	300	50
	60	300	240	240	360	60
	75	300	-	300	450	75
	90	360	-	360	540	90
SA-4P	20	100	80	120	120	20
	25	125	100	150	150	25
	30	150	120	180	180	30
	40	200	160	240	240	40

Short Circuit Rating:  SA-1.5P, 2P, 3P, 4P - 5,000A @ 277 V, 480 V, 600 V

COMPANY INTRODUCTION
Mingguang Hecheng Electrical Co., Ltd., has been working on developing high quality Definite Purpose Contactor since estalished in 2004.We have experience in supplying to Hartland Controls, Zettler Controls, Fasco, Packard Inc & Supco directly and indirectly.
From the business with the companies mentioned and the help from them, we've established a good process control system including Supplier Evaluation and Choice, Coiling Process& Inspection, General Assembly and Inspection, Packing and Delivery.With support from them and our rich Supply Chain Management (SCM) experiences, we are operating our business successfully.
We take care of all vital aspects so that our customers can focus on their customers.Our experienced engineers/inspectors are involved in all the important steps for quality control during production so that all our exported goods are perfectly in compliance to our customers' requirements.And all the members in our supply chains are selected carefully under our Supplier Evaluation Program established strictly according to ISO9001 system.
FAQ
     Q1: Can I get a sample for testing?
           A: Yes, we could offer free sample, but shipping cost should be paid at customers' side .
     Q2: Can I print my logo on the products?
           A: Yes, OEM and ODM are available.
     Q3: How can I get the after-service?
          A: If quality problem happen we promise re-send the item .
     Q4: Do you have inspection procedures for products?
          A: Our products100% self-inspection and testing before packing.
     Q5: How about delivery time of the order?
          A: 15-20 days after getting deposit.
     Q6: How about payment terms?
          A:  30% deposit, the rest payment balance against B/L copy .
