24V 40W CV Waterproof LED Transformer with Ce

Name: 24V 40W CV Waterproof LED Transformer with Ce
Brand: all-electronics-online.com
SKU: 780835235
Availability: InStock
Rating: 5 (98 reviews)

Price:	US $ 6.96/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	LPS-24E40
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Output Power:	40W
Input Voltage:	170-250V
Output Voltage:	24V
Output Current:	1.66A
Use:	for LED Signage,LED Strips,Light Box etc.
Operating Temperature:	-25~40 Degree
Connection Input/Output:	Input:0.75mm²X3 / Output:0.75mm²X2
Cooling:	Free Air Convection
Installation:	Outdoor Waterproof
Withstand Voltage:	I/P~O/P:1.5kvac, 1 Minute
Usage:	Construction
Output Type:	Single
Driving Method:	LED Regulator Voltage
Circuit Structure:	Electronic Step-down Transformer
Power Supply Voltage:	AC170-250V
Brand:	Neonpro

Product Description

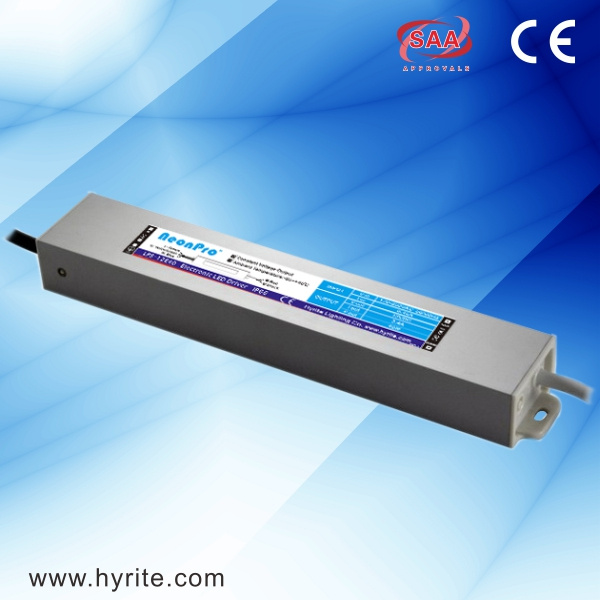

24V 40W CV Waterproof LED Transformer with Ce

1.Brief introductions:
External led power supply for LED module, strip, flex ribbon, bar light, spot light, down light, wall washer, panel light, etc...
Seamless aluminum case, fully sealed & waterproof, IP67
Constant voltage output
100% burn-in test

2.Technical Specs:

Model no.	LPS-24E40
Input voltage	170-250 VAC 50/60 Hz
Max. power	40W max
Output type	Constant voltage
Dimming	No
Built-in active PFC	No
Power factor	Low
Efficiency	86%
AC inrush current(max.)	Cold start, 40A@230VAC
Output voltage	24VDC ± 5%
Output current	1.66A max
Overload protection	105% hiccup mode, auto-recovery
Over voltage protection	120% rated output voltage
Withstand voltage	I/P~O/P:1.5kVAC, 1 minute
Operating temperature	-25~40 degree
Installation	Outdoor waterproof
IP rating	IP 67
Cooling	Free air convection
Certificates/standards	CE
Connection input/output	Input:0.75mm²x3 (18cm) / Output:0.75mm²x2 (18cm)
Dimensions(LWH)	2303826 mm
Weight(kg)	0.4100
Packing information	50Pcs/ Carton, G.W 20.5KG

3.Workshop&exibitions:

Hyrite Lighting Company, also known as NeonPro Co, has 20 years experience in the design, development and manufacturing of electronic power supplies, one of an extremely successful range of signage products including, over the last seven years, LED modules and driver units.

The senior management having recognized the ongoing success and further potential of our LED products and utilizing their experience and proven track record in innovative product design and manufacture has formed Hyrite Lighting Company solely dedicated to manufacturing products specifically for the LED signage and lighitng markets.

Our products are surrently being used in many countries under different technical standards in a variety of climate conditions.

Pls kindly check our main products below,

*IP67 Slim high efficiency constant voltage LED power supply (New)

*Traditional IP67 constant voltage waterproof LED power supply

*IP45 Rainproof constant voltage LED power supply.

*IP20 indoor type LED power supply.

*Constant Current LED Driver for LED lighting.

*Dimmable LED driver.

*LED module for Channel letter/light box.

Certificate: CE RoHS SASO SAA TUV UL approved

In addition we offer comprehensive OEM and ODM services to our partners.

We sincerely welcome your visiting and valued advices to us. Any questions from you, our experienced salesperson will feedback to you within 12 hours.
