| Prod Model: |
SLT36BLY |
| Model: |
Slt36bly |
| Voltage: |
12V |
| No Load Speed: |
4000rpm |
| Rated Torque: |
120g.Cm |
| Rated Speed: |
5000rpm |
| Weight: |
0.15kg |
| Body Length: |
40mm |
| Rated Power: |
10W |
| No. Of Phase: |
3 |
| IP Class: |
IP40 |
| Application: |
Medical Equpiments |
| Operating Speed: |
Adjust Speed |
| Excitation Mode: |
Compound |
| Structure And Working Principle: |
Brushless |
| Certification: |
Ce |
| Brand: |
Slt |
Product Description

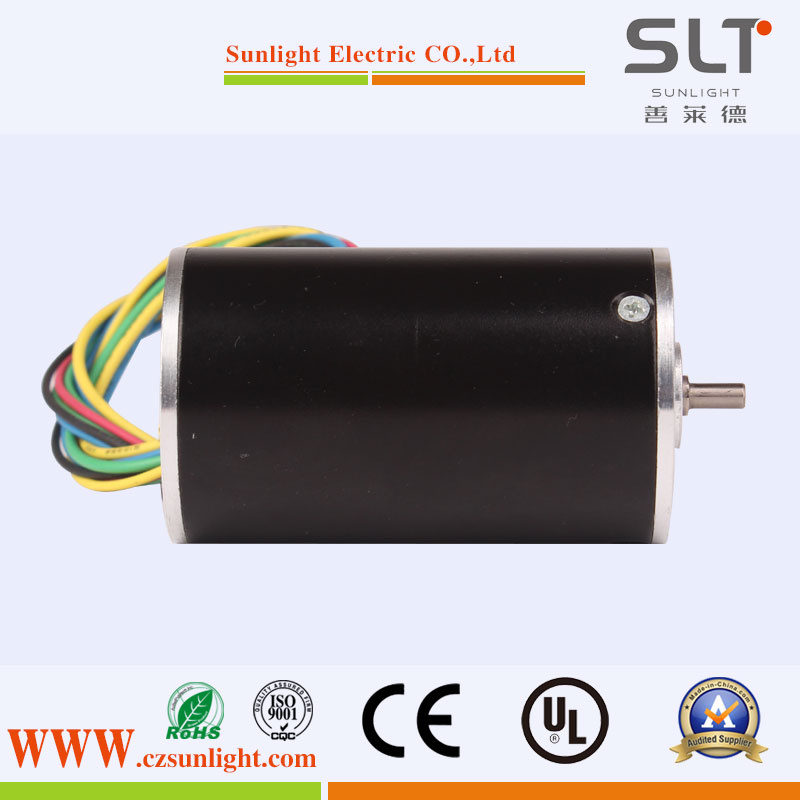

Model:SLT36BLY
Voltage:24V
No Load Speed:4000rpm
Rated torque:190g.cm
Rated Speed:5000rpm
Body length:40mm
Rated Power:10w
No. of phase:3
IP class:IP40
The specification of 12V 4000rpm 36BLY brushless dc motor| Item | Specification |
| Winding type | Star/Delta |
| Hall effect angle | 120 degree electric angle |
| Shaft runout | 0.025mm |
| Radial play | 0.06mm/50g |
| End play | 0.08mm/50g |
| Max radial force | 28N/20mm from the flange |
| Max axial force | 10N |
| Insulation class | Class B |
| IP class | IP40 |
| Dielectric strength | 500VDC for one minute |
| Insulation resistance | 100MΩmin 500VDC |
| Model | No. of phase | Rated Voltage | Rated Speed | Rated Torque | Rated Power | Mass | Body length |
| | VDC | rpm | g.cm | W | Kg | mm |
| SLT36BLY-001A | 3 | 12 | 4000 | 120 | 5 | 0.15 | 40 |
| SLT36BLY-002A | 3 | 24 | 5000 | 190 | 10 | 0.15 | 40 |
| SLT36BLY-003A | 3 | 12 | 6000 | 120 | 8 | 0.18 | 50 |
| SLT36BLY-004A | 3 | 24 | 6000 | 230 | 15 | 0.18 | 50 |
| SLT36BLY-005A | 3 | 12 | 8000 | 240 | 20 | 0.22 | 60 |
| SLT36BLY-006A | 3 | 24 | 8000 | 300 | 25 | 0.22 | 60 |

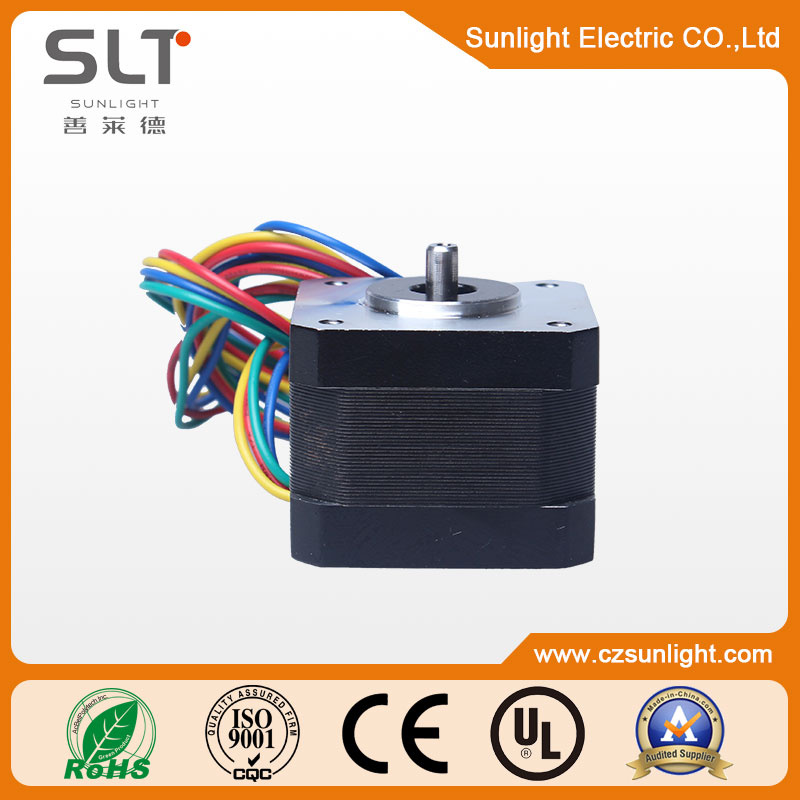

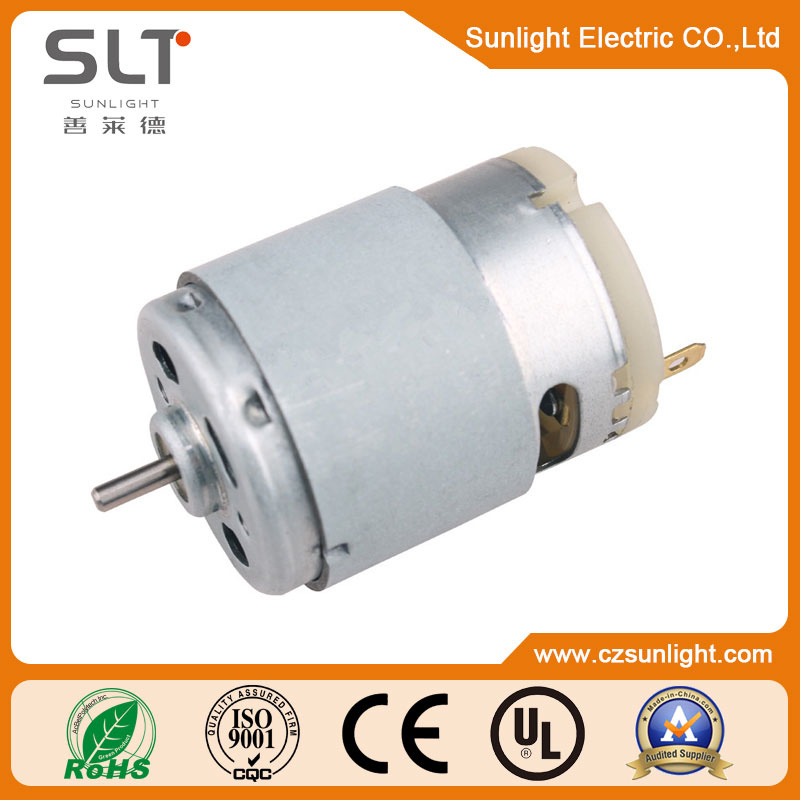

Other products
Company Information
FAQ
1,What custom modifications are available?
SLT can provide motor with customized shafts, mounted encoders, various controls
(integral, hall only, or sensorless), and alternate magnet materials for power density.
2,What are the advantages of using a brushless motor versus a brush style motor?
No brush noise, efficient, durable, robust, easy to cool
Linear current/torque
Synchronous speed control
Position and Speed Servo (open/closed loop)
Customizable Performance
Extended Life
3,How can I calculate my power needs?
A simple formula can be used to roughly determine what is needed power-wise.
Here's an example:
| Motor Speed: | 3600 RPM |
| Motor Torque: | 340 mNm = 48 inoz = 3 inlb |
| Voltage: | 12VDC |
| Assumed Eff %: | 80 % |
| Power Output: | ( Speed x Torque(inlb) ) / 84.5 | => | (3600 x 3 ) / 84.5 | = | 127 Watts Output |
| Power Input: | Watts Output / Assumed Eff% | => | 127 / 0.8 | = | 159 Watts Input (Required) |
| Current Requirement: | Watts Input / Voltage | => | 159 / 12 | = | 13.2 Amps (Minimum) |
4,What environmental considerations are there?
Typical environmental temps for the motor should be run in a low humidity environment with an ambient temperature
range of -20 C to +50 C. brushless motors do have IP ratings associated to them and limited customization can be
done to increase the IP rating. If severe conditions require IP ratings of IP54 or higher,a customized motor construction
is required to accommodate this need.
5,Are there any noise benefits of a Brushless motor?
Yes, with the elimination of brushes, brushless motors can be regulated to slower operating speeds without sacrificing torque.
Brushless motors can also utilize skewed magnets to reduce the effect of cogging.
