| Prod Model: |
JYM-5000 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
420*166*128mm(L*W*H) |
| Output Voltage: |
110V, 220V |
| Input Voltage: |
12V, 24V, 48V |
| Output Frequency: |
50/60Hz |
| Warranty: |
18 Months |
| Phase: |
Single |
| Power Source: |
Electric Power |
| Application: |
Electric Tools |
| Brand: |
Jyins |
Product Description

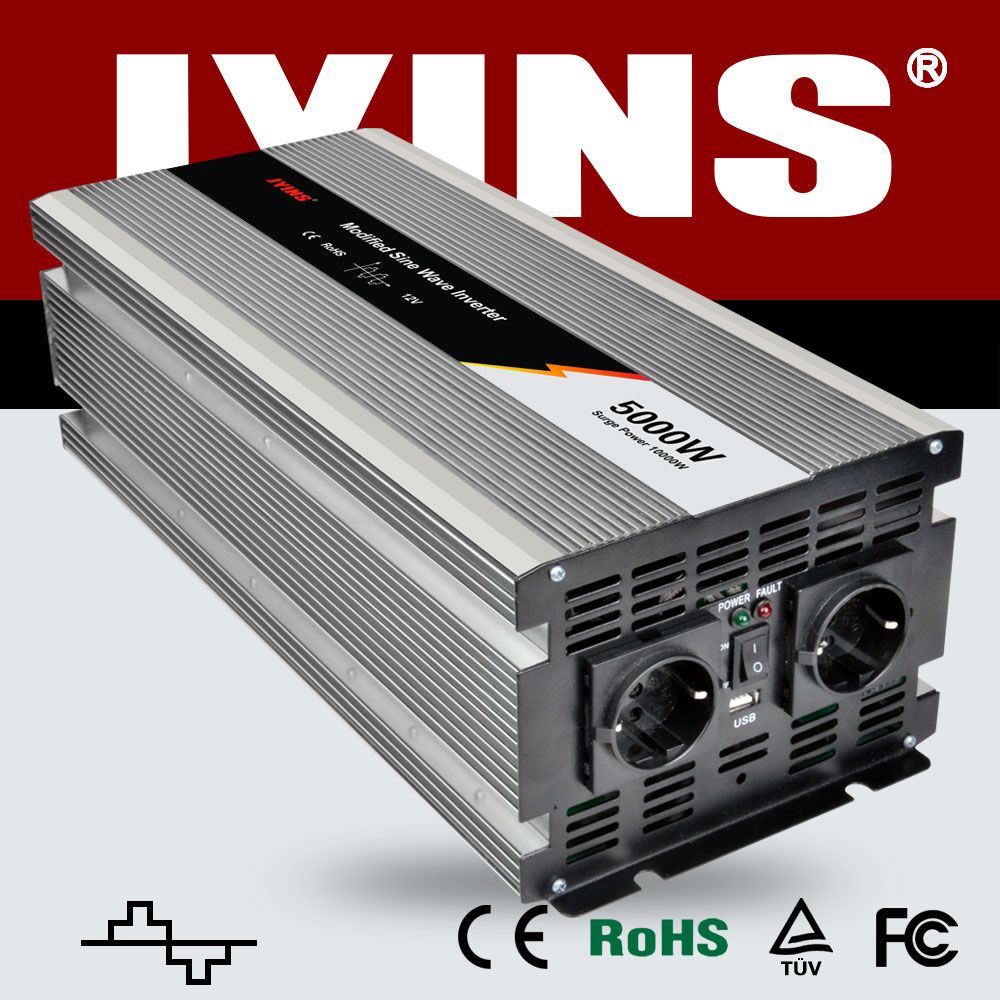

24v 5000w modified sine wave auto power inverter
Product Description:
JYINS modified sine wave inverters is one of the most popular power inverter series since the beginning. We produce the power range from 200W to 5000W recently. JYINS 5KW inverter It convert 12V/24V/48VDC to 100-120V/220-240VAC, you can power for your electric appliances which rated power less 5000W continuously. The optional USB output port offer one more choise for user. It can charge for some digital equipments as you want.
Product Features:
· Compact case design, slim and high efficiency
· It designed to give you quality power, ease of use, and reliability
· Low battery alarm: Alerts you if the battery has become dicharged to 11Volts or lower.
· Low battery voltage shutdown: Shuts the inverter down automatically if the battery voltage drops below 10.5volts. It protects the battery from being completely discharged.
· High battery voltage shutdown: Shuts the inverter down automatically if the input voltage rises to 15volts or more.
· Overload shutdown: Shuts the inverter down automatically if a short cicuit is detected in the circuity connected to the inverter's output, or if the loads connected to the inverter exceed the inverter's operating limits
· Over temperature shutdown: Shuts the inverter down automatically if its internal temperature rises above an unacceptable level.
· The modified sine wave output waveform suitable for many electronic loads.
Protection Function:
· Low voltage alarm & Shutdown
· Over voltage protection
· Overload protection
· Over temperature protection
· Output short circuit protection
· Reverse Polarity protection
· Soft start
· Auto. Reset after being in protected
· Earth fault protection
| Model | JYM5K-121 | JYM5K-122 | JYM5K-241 | JYM5K-242 | JYM5K-481 | JYM5K-482 |
| Rated Power | 5000W |
| Peak Power | 10000W |
| Output Voltage | 110V | 230V | 110V | 230V | 110V | 230V |
| Frequency | 50/60Hz±3 |
| USB Port | 5V,500mA(Optional) |
| Output Waveform | Modified Sine Wave |
| Protection Function | Bat.Low Voltage Alarm&Shut Down,Overload,Over Temperature,Overvoltage,ShortCicuit,Reverse Polarity |
| Input Voltage | 12V | 24V | 48V |
| Dimension | 420×166×128mm(L×W×H) |
| N.W./unit | 5800g |
| QTY/Ctn | 6Pcs |
| Packing | Gift box |
| Meas./Ctn | 71.5×43×42cm |
| Warranty | 18Months |
