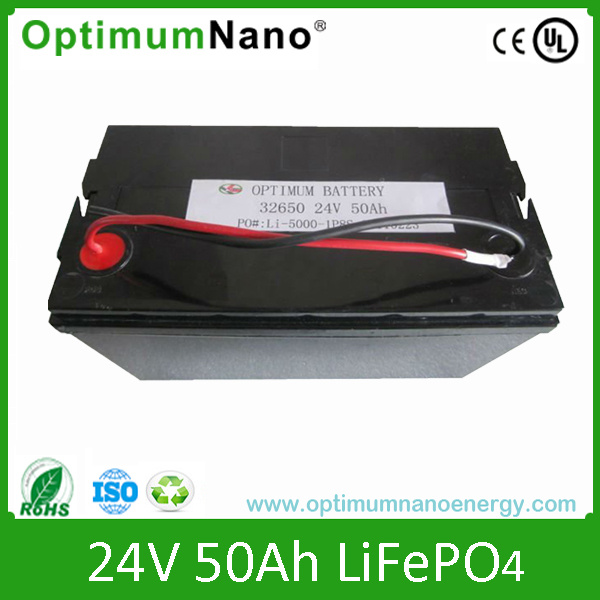

24V 50ah UPS Lithium LiFePO4 Battery with CE, UL

Prod Model:	OPT-024050
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Battery Cell Type:	LiFePO4 (Ifr 32650-3.2V5ah)
OEM/ODM:	Yes
Warranty Time:	2 Years
Certifications:	CE, UL, RoHS, IEC, BV, SGS, Rbrc
Lead Time:	25days
Life Cycles:	2000 Times
Application:	E-Car,E-Bike ,Scooter,E-Walker
Export Markets:	Global
Type:	Lithium-Ion Battery Pack
Connection Mode:	Series and Parallel
Standard Voltage:	24V
Rated Capacity:	50ah
Electrolyte:	LiFePO4

Product Description

Rated Voltage: 24V
Rated capacity: 50 Ah
Max charging voltage: 29.2 V
Cut off voltage: 20V
Recommend charge current: <10 A (optional)
Recommend continuous discharging current: <50A (customized)
Pulse discharging current: 100 A (customized)
Life cycle: Over 2000 cycles >80% capacity
Case: Customized
Size: Customized
Weight: About 16 KG
Self discharge rate: ≤ 3% monthly
Operate temperature -20º C-60º C
Warranty time is 2 years
Certifications: CE, UL, RoHS, IEC, BV, SGS, RBRC

Features of Optimumnano LiFePO4 battery pack:

1. Pack assembly technique: Use the most mature cylindrical structure design 32650 LiFePO4 battery, making use of assembly technique developed by us to form products of different modules required by customers which are against dust, water, vibration and good in conductivity and heat raleasing. At present, the maximum capacity of module we've produced so far is 900Ah while maximum voltage of pack is 600V;
2. Battery management technique: Self-developed BMS, automatic testing voltage, temperature, current, insulation level and SOC, use advantage lossless balancing function and GPRS wireless data transmission function.
º 3. Ensuring of best performance of each cell;
4. Seamless exchange: We can produce packs that are the same with lead-acid battery in voltage, capacity and dimension, without changing the mould.
5. Lighter, smaller and stronger: Optimumnano LiFePO4 battery pack system is featured with lighter weight, smaller dimension and stronger power with service term above 10 years.
Quality features of optimumnano LiFePO4 battery pack:

In optimumnano, each cell and pack is produced with the principle of "conformity in 6 aspects and 3 inspections in 3 stages", thus the high stability and reliability can be guaranteed. "Conformity in 6 aspects" is a principal developed by optimumnano's engineers in production and inspection process. The application of ensures conformity of packs and improves service term of pack obviously. And "3 inspections in 3 stages" refers to inspections on battery assembly, paralleled modules and finished packs.

Remarks:

1) MOQ: 10 PCS
The quotation is include BMS and packing, but not the charger
2) Payment: T/T 100% for sample, T/T 30% in advance, 70% before sending the goods for the order.
3) Order Lead time: 4-6 weeks for order upon receipt of 30% deposit
4) Sample lead time: Within 2-3 weeks
5) Delivery: FOB Shenzhen port
6) Warranty: 24 Months from the day when you receive the goods

Specification:

l  Electrical Characteristics

Nominal Voltage	24V
Nominal Capacity	50Ah
Impedance (Max. at1000Hz)	≤50mΩ
Expected Cycle Life	2000 cycles


l  Mechanical Characteristics

Height	215±2mm
Width	171±2mm
Length	323±2mm
Weight	~17Kg


l  Operation Conditions

Charge Method	Constant Current/Constant Voltage (CC-CV)
Max. Charge Voltage	29.2V
Standard Charge Current	10A(0.2C)
Charge Temperature	0ºC~45ºC
Max. Continuous Discharge Current	80A
Peak Instant               Discharge Current	150A
Peak Instant               Discharge Time	5 seconds
Discharge Cut-off Voltage	20.0V
Discharge Temperature	-20ºC~65ºC
Storage Temperature	-20ºC~45ºC
