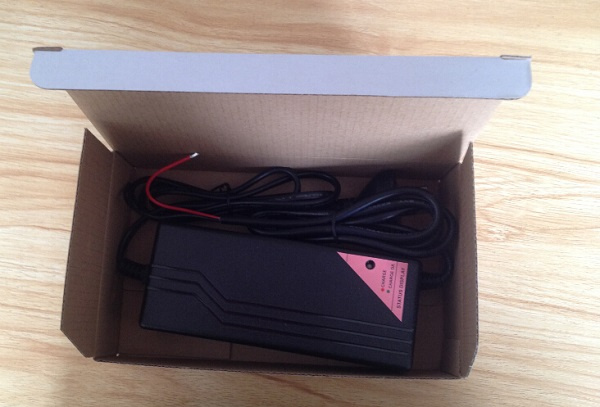

24V 5A Lead Acid Car Battery Charger

Name: 24V 5A Lead Acid Car Battery Charger
Brand: all-electronics-online.com
SKU: 795590535
Availability: InStock
Rating: 4.7 (51 reviews)

Price:	Negotiable/Piece
Min Order:	200/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	QW240-050-S
Input Voltage:	AC100-240V 50/60Hz
Voltage:	24V
Desktop Type:	Yes
Delivery Date:	15days
Warranty:	One Year
Charger Type:	Electric Charger
Type:	Lead Acid Battery
Nominal Voltage:	24V
Socket Type:	Can Be Customized

Product Description

24v 5a lead acid car battery charger

Output	24v 5a
Connector	Customzied

Product descriptions:
Application:
♦ Electric vehicle, Ebike, Electric Scooter, Mortor, Golf car, car jumper

♦ Solar Systems, Home Application,UPS
♦ LED Torch, headlight, Portable power bank,etc.

Electrical Specification:
♦ Universal Input: 100 - 240V AC, 50/60Hz
♦ Input Plug: EU US UK AU South Korea South Africa Power cords

♦ Output Voltage Range of main products: 4.2~60V DC (Optional)
♦ Output Current Range of main products: 0.5-100A (Optional)

♦ Output: 12v5a 24v5a 36v2a 48v2a
♦ Charge mode: CC--CV--Float Mode(Lead acid battery charger)

1. Lead acid Battery Charger
6V Lead acid battery charger: 6.8V(Float Voltage), 7.3V(Top Voltage)

12V Lead acid battery charger: 13.8V(Float Voltage), 14.6V(Top Voltage)
24V Lead acid battery charger: 27.6V(Float Voltage), 29.2V (Top Voltage)

36V Lead acid battery charger: 41.4V(Float Voltage), 43.8V (Top Voltage)

48V Lead acid battery charger: 55.2V(Float Voltage), 58.4V (Top Voltage)

♦ Led display: Red--in charging; Green--fully Charge
♦ Cut-off Current: 10-15% of Charge current
♦ Output Connector: 3pin Aviation Plugs, XLR socket, DC Jack, Alligator Clips, SAE connector, Anderson Plugs, RCA
♦ Rated Power: 120W Max

Energy Standard
♦ MEPS
♦ CEC-V
♦ ERP V
♦ Energy Star: Level 6
♦ Standby Power: <0.3W

Protection Function
♦ Over voltage protection
♦ Over current protection
♦ Over-load protection
♦ Short circuit protection

Environmental Protection
♦ RoHS , REACH , CPSIA or PAHs Compliant On Request

Operation And Storage Condition
♦ Operation Temperature: -20°C to 40°C
♦ Operation Humidity: 20% to 90% R.H
♦ Storage Temperature: -20°C to 75°C
♦ Storage Humidity: 1% to 90% R.H.
♦ MBFT: > 50,000Hours

Quality is our priority, win by quality" which is the origin of the our company name --Quawin.

We always highly focus on Quality Assurance and completed After-Sales Service which based on competitive price. Our QA/QC Department performs strict quality control measures on all incoming main boards, spare parts and throughout our entire production process to ensure the high quality of each products. Pursuing the goal of 'No Defect on Quality, No Claim from Customers, ' we will continue to follow international standards to provide customers with satisfactory products.

As an eight years experience manufacture, we have built a powerful R&D team which has abundant knowledge and operational experience that can develop new products and improve existing models in order to meet growing market demands. This high efficient and energetic team is good at overcoming all kinds of obstacles.

We strive for 100% customer's satisfaction through continuous improvement and now our high quality products and thoughtful services have got good reputation from customers in the North America, South America, Europe, Asia and other countries and regions.

We currently rolls out thousands of products such as E-bike battery, golf car battery, UPS battery, BMS, solar battery, backup power battery and all kinds of matched chargers etc.

To keep ahead of the competition, you need a supplier who can keep up with your demands. Please contact us and let our excellent sales team to provide perfect service to you at once.
